Drawmer DA6 Operator's Manual

CONTENTS:

SAFETY CONSIDERATIONS

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . 2
INSTALLATION
CONTROL DESCRIPTION . . . . . . . . . . . . . . 5
TECHNICAL SPECIFICATIONS . . . . . . . . . . 6
TO REDUCE THE RISK OF FIRE REPLACE THE MAINS FUSE ONLY WITH THE SAME
TYPE, WHICH MUST BE A CLASS 3, 230 VOLT, TIME DELAY TYPE, RATED AT 63mA
WHERE THE MAINS INPUT VOLTAGE SWITCH IS SET TO 230 VOLTS AC. AND 120mA
WHERE THE MAINS INPUT VOLTAGE IS 115 VOLTS AC. ALL FUSES MUST COMPLY
WITH BS EN 60127-2:1991, SHEET III. THE FUSE BODY SIZE IS 20mm x 5mm.
DO NOT ATTEMPT TO CHANGE OR TAMPER WITH THE SUPPLIED MAINS CABLE.
DO NOT PERFORM ANY SERVICING. REFER ALL SERVICING TO QUALIFIED SERVICE
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS
THE HEADPHONE AMPLIFIER IN THIS UNIT IS CAPABLE OF PRODUCING 1 WATT INTO
8Í SPEAKERS. DRAWMER DO NOT ACCEPT ANY RESPONSIBILITY FOR DAMAGE
CAUSED TO OPERATOR HEARING OR SPEAKER DEVICES BY USE OF EXCESSIVE
DA6 OPERATORS MANUAL
. . . . . . . . . . . 1
. . . . . . . . . . . . . . . . . . . . .

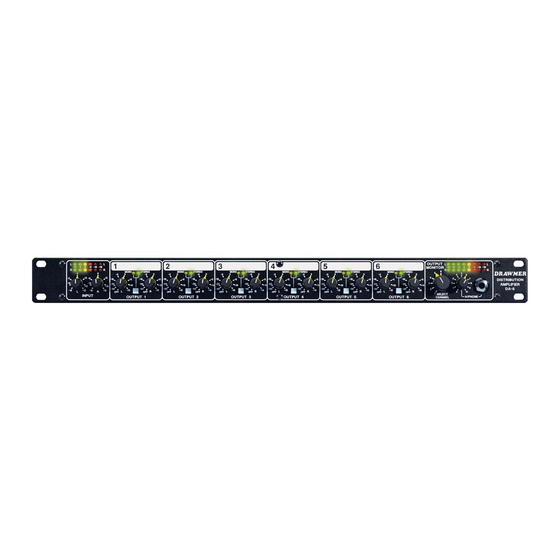

DRAWMER DA6
Stereo Distribution Pre-Amp
SAFETY CONSIDERATIONS
CAUTION - MAINS FUSE
CAUTION - MAINS CABLE
CAUTION - SERVICING
PERSONNEL.
WARNING
EQUIPMENT TO RAIN OR MOISTURE.
CAUTION - HEADPHONES
OUTPUT LEVELS.
3
1
