Summary of Contents for goodnature C100

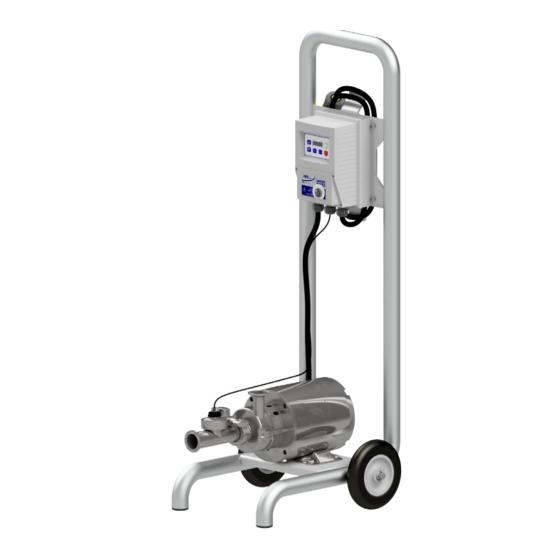

- Page 1 COMMERCIAL JUICE PUMP OWNER’S MANUAL VERSION 1.4 SERIAL # PUMP CART: C100 C100 PUMP WITH 3/4 HP MOTOR...
- Page 2 INTRODUCTION WARNING: To limit risk of personal injury and material damage, all users must read these instructions in their entirety and follow them strictly. MACHINE SPECIFICATIONS PUMP CART: C100 3/4HP 240V 6.6 Amp Single Phase GNP# 19706 PUMP CART: C100...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Section Safety Precautions Section Unpacking Unpacking Enclosed Parts List Section Machine Diagram Pump Cart Diagram Section Installation and Setup Installation Setup - Hose Connections Section Operation Pump Cart Operation Section Cleaning Machine Cleaning Section Maintenance Section Troubleshooting Section Useful Information Replacement Parts List... -
Page 4: Safety Precautions
WARNING: Operator should ensure the surrounding area is free of debris and slipping hazards to prevent injury. WARNING: In the event of an accident or breakdown, all power supply should be disconnected from source and Goodnature customer service should be contacted for support. -
Page 5: Section 2.0 Unpacking
• There is an Enclosed Parts List below. Inspect all enclosed parts carefully and make sure no parts are missing. If any parts are missing or damaged please contact Goodnature Products at 1-800-875-3381. • After unpacking and before running, it is important to check that no fasteners became loose during shipping. -
Page 6: Machine Diagram
SECTION 3: MACHINE DIAGRAMS PUMP CART DIAGRAM 1. C100 Pump 2. Tri-Clamp with Gasket 3. Float Switch with mounting flange 4. Sensor Tee 5. Electrical Assembly 6. Motor 7. Wheel 8. Power Cord 9. Hose Connection; Inlet 10. Hose Connection; Outlet... -
Page 7: Installation And Setup
SECTION 4: INSTALLATION AND SETUP INSTALLATION WARNING: Power must be supplied to the Pump Cart by a licensed electrician. Failure to do so may result in serious personal injury due to electric shock or damage to the machine. • Inspect for physical damage, electrical damage, or any loose or bare wires. Make sure there are no loose nuts, bolts, or any other fasteners. -
Page 8: Setup - Hose Connections
SECTION 4: INSTALLATION AND SETUP SETUP - HOSE CONNECTIONS Suction hose, o-rings and clamps are included. Customer to supply discharge hose to holding tank. Connect suction hose to outlet of tray or tank being emptied (Use provided 2” x 1.5” adapter). Connect opposite end of suction hose to pump inlet (See Fig 4.1) Connect customer supplied hose to outlet and route to sanitized collection tank. -
Page 9: Section 5.0 Operation
To change pump flow rate, adjust frequency by the corresponding up and down keys on the keypad. (See Fig. 5.1) The pump should be freely turning • with no interference or rubbing. If it is not, shut the pump off and contact Goodnature Customer service. Fig 5.1: Controls... -
Page 10: Section 6.0 Cleaning
Rinse detergent off thoroughly with hot water. Wash and sanitize all removed components. Soaking in a sink may be required. If desired, please contact Goodnature customer service at 1-800-875-3381 for machine cleanser. -
Page 11: Section 7.0 Maintenance
WARNING: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. The C100 Pump Cart is a commercial piece of machinery. It is important to keep everything operating properly for the safety of the operator and for the longevity of the machine. -
Page 12: Section 8.0 Troubleshooting
SECTION 8: TROUBLESHOOTING WARNING: Disconnect all power before performing maintenance to avoid risk of serious electric shock. Pump speed too fast or too slow—Adjust the speed according to Section 5.1: Pump Cart Operation. Pump rubbing or will not turn—Power off machine, disconnect power, and remove the pump housing as shown in figures 7.1 and 7.2. -
Page 13: Useful Information
SECTION 9: USEFUL INFORMATION REPLACEMENT PARTS Part# Description 14439 Pump Seal Kit #1 14616 Pump Seal Kit #3 15604 Pump Impeller 19994 VFD with Switch, 230V 20053 VFD with Switch, 460V 19918 Sensor Tee 19891 Float Switch 19983 Float Switch Flange 14279 Clamp - 1.5”... -
Page 14: Warranty
Warranty information was provided during the purchase of the equipment, and was attached with the • Terms and Conditions. If you need a replacement copy please contact Goodnature Products or your sales representative regarding warranty information. Altering the machinery in any way not described in this manual will void the warranty. - Page 15 COMMERCIAL JUICE PUMP...
