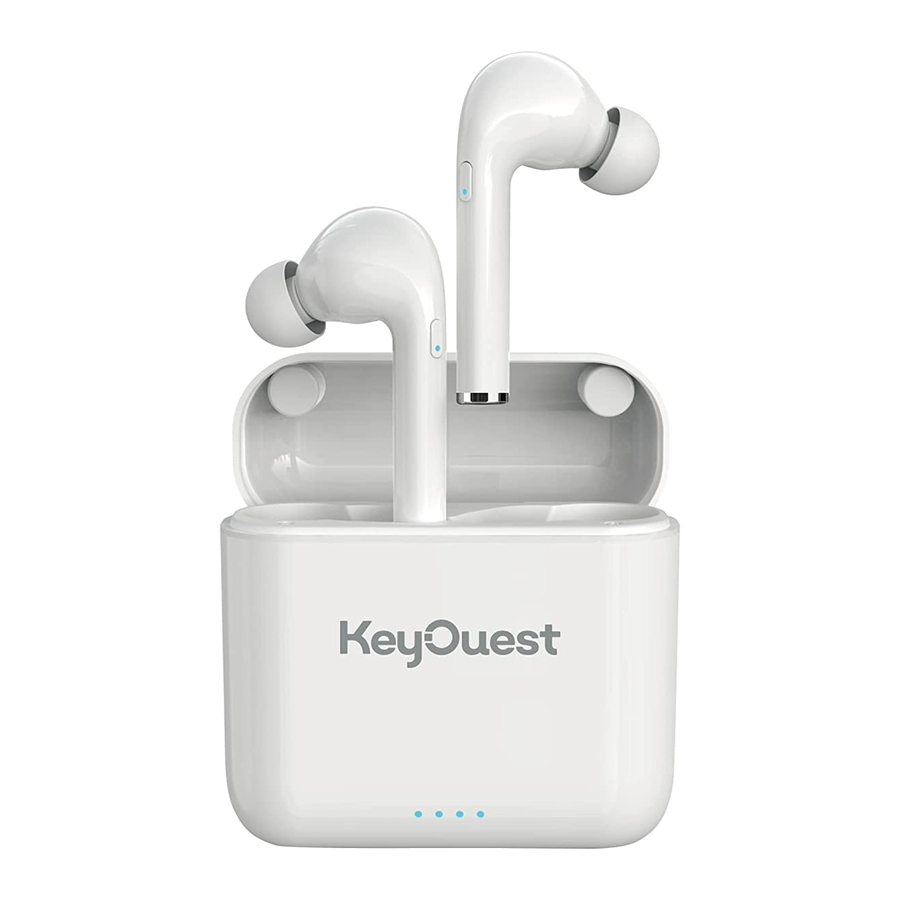

KeyOuest MI8 - True Wireless Earphones Manual

CHARACTERISTICS

• Bluetooth^®: version 5.0
• Operating range: 10 m
• Earphones battery: 40 mAh
• Charging box battery: 300 mAh
• Autonomy (discussion): 4 h
• Autonomy (music): 5 h
• Earphone charging time: 1 h 30
• Case charging time: 1 h 30

PACKAGING CONTENT

• 1 TWS earphones «Mi8»
• 1 charging box
• 1 user manual
• 1 Micro USB charging cable
• 3 pairs of silicone tips (S, M, L)

WARNINGS & SAFETY INSTRUCTIONS

Safety instructions
This manual allows you to familiarize yourself with the operation of the product. Keep it so you can consult if necessary.

• To prevent the risk of fire or electric shock, do not expose the headphones to direct sunlight or a humid place.
• Never immerse the headphones in water or any other liquid.
• This product is not a toy. Keep it out of the reach of children. Supervise children to make sure they are not playing with the device.
• Do not attempt to disassemble or reassemble your headphones.
• Do not use any cleaning products containing alcohol, ammonia, benzene or abrasive substances.
• If cleaning is necessary, use a soft cloth, moistening it with a reduced amount of water or water with mild soap if necessary.
• Your device transmits and receives radio frequencies around 2.4 Ghz. These emissions can disrupt the operation of many electronic devices. To avoid an accident, turn off your speaker when you are in the following places:
  • places where flammable gas is present, in a hospital, train, plane or petrol station,
  • near automatic doors or fire alarms.

If you have a pacemaker or other prosthesis, ask your doctor for advice.

The receiver operates within a radius of about 10 meters. The communication range may vary depending on obstacles (person, metal, wall, etc.) or the electromagnetic environment.

hearing security

• To avoid hearing loss, do not use the earphones at high volume for too long and adjust the volume to a safe level. The higher the volume, the shorter the secure listening time.
• Listen at reasonable volumes for reasonable periods of time.
• Be careful not to increase the volume as your hearing becomes accustomed to it.
• Do not adjust the volume to such a level that it completely masks the surrounding sounds.
• Use caution when using headphones or stop using in potentially hazardous situations.
• Excessive sound pressure from the earphones may cause hearing loss.
• It is not recommended to drive with earphones covering both ears. This practice is even illegal in certain territories.

EARPHONES CONTROLS

The controls and functionality are the same for both earphones.

Note:
Each earphone must be turned on separately.
Once the earphones are paired, turning off one earphone will turn off both.

Earphone Indicator LED
Red when charging.
Blue when fully charged.
Turns off in 10 seconds.

Function Button
One click - Play, pause, answer, hang up
Reject - long press 2 seconds
Increase volume - press left button 2 seconds
Decrease volume - press right button 2 seconds
Power on - long press 3 seconds
Power off - long press 5 seconds

Charger power and battery indicator LED
Flashing blue when case is charging.
Solid blue when case is on.
Each LED indicates the battery level.

CHARGING THE CASE

For best results, fully charge before use.

Charging time is approximately 1.5 hours.

Use a Micro to USB cable, connect it to the USB port of your computer or charger (not included) to charge the case.

CHARGING THE EARPHONES

For best results, fully charge the earphones before use.

Charging time is approximately 1.5 hours.

• Open the cover and place the earphones in their docking stations (note the placement on the left and right).
• Close the case to ensure contact between the earphones and the case.
• The earphones start charging.
• While charging, the earphone indicator turns red.
• When charging is complete, the indicator turns blue. After 10 seconds, the indicator and the case will turn off.

EARPHONE PAIRING

The earphones have automatic pairing and will connect with each other automatically after power on.

• Remove the earphones from the charging case and they will pair automatically. A beep will announce the connection and the LED on one earphone will flash red and blue, while the other one will slowly flash blue.
• Once disconnected, follow the step below to resynchronize:
  • Switch off your Bluetooth^® device.
  • Place the two earphones in your charging case. Close the lid and wait 30 seconds, then open it.
  • The TWS will automatically sync the left and right sides.

PAIRING BLUETOOTH^®

Note: You can turn on only one earphone to use it alone, and it will work in Mono sound mode.

• Once the earphones are connected, you can now connect to your Bluetooth^® device. The right earphone's LED will continue to flash blue and red, indicating that it is ready to pair with a Bluetooth^® device.
• On your Bluetooth^® device, go to Bluetooth^® settings and search for nearby devices. Select «KEYOUEST MI8» when it appears in the list. Upon successful connection to your Bluetooth^® device, a bip will announce the Bluetooth^® connection and the LED indicator on both earphones will flash blue once every 5 seconds.
• Sound is now played through the earphones.

Note: Due to the nature of fully wireless earphones, you may experience slight interruptions with your audio in areas with multiple 2.4 GHz bands or in areas with high wireless traffic.

AUDIO FUNCTIONS

• One click: play, pause.
• Click twice on the left to play the previous song and click twice on the right to play the next song.
• Press the left button 2 seconds to increase the volume.
• Press the right button 2 seconds to decrease the volume.

SPEAKER FUNCTIONS

• One click: answer, hang up.
• Long press for 2 seconds: reject the call.
• Press the left button 2 seconds to increase the volume of the voice.
• Press the right button 2 seconds to decrease the voice volume.

AUTOMATIC CHARGING FUNCTION

• When the case is on: Placing the earphones in the charging case will automatically turn them off and start charging them.

Directive 2012 / 19 / EU
Correct disposal of this product
Electronic waste should not be thrown away with household waste. Please recycle them to your authorized agency and check the recycling advice with the relevant local authorities.

Warranty

Products are guaranteed against any failure from manufacturing defects.

This warranty does not cover normal wear or tear, or damage caused by improper use, keep your invoice stapled to the user manual.

Battery recycling

This product contains a battery that may explode or release dangerous chemicals. To reduce the risk of fire, never disassemble, crush or puncture the battery, or throw it into fire or water. Do not dispose of the product with household waste, dispose of the product in a container suitable for recycling.

SRDi - 85430 La Boissière des Landes FRANCE
