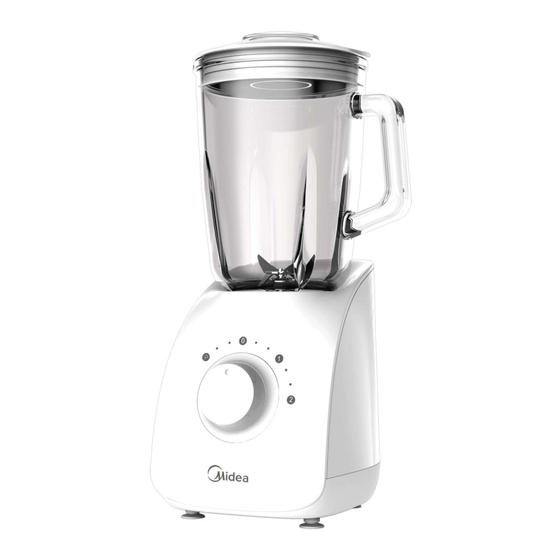

Midea BL-1190 User Manual

Midea BL-1190 User Manual

Table blender
Hide thumbs Also See for BL-1190:
Table of Contents

Advertisement

桌上攪拌器
用戶手冊
BL-1190
目錄
重要安全說明 ---------------------------------------------------------------------------------- 1
部件名稱 ---------------------------------------------------------------------------------------- 3
產品技術資料 ---------------------------------------------------------------------------------- 3
使用說明 ---------------------------------------------------------------------------------------- 4
營養 ---------------------------------------------------------------------------------------------- 8
異常分析及處理 ------------------------------------------------------------------------------- 8
清潔及保養 ------------------------------------------------------------------------------------- 9
電路原理圖 ------------------------------------------------------------------------------------- 10
重要主要事項︰使用本產品前,請仔細閱讀本手冊,並妥善保管以備日後查閱。

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BL-1190 and is the answer not in the manual?

Questions and answers

Summary of Contents for Midea BL-1190

  • Page 1: Table Of Contents

    桌上攪拌器 用戶手冊 BL-1190 目錄 重要安全說明 ---------------------------------------------------------------------------------- 1 部件名稱 ---------------------------------------------------------------------------------------- 3 產品技術資料 ---------------------------------------------------------------------------------- 3 使用說明 ---------------------------------------------------------------------------------------- 4 營養 ---------------------------------------------------------------------------------------------- 8 異常分析及處理 ------------------------------------------------------------------------------- 8 清潔及保養 ------------------------------------------------------------------------------------- 9 電路原理圖 ------------------------------------------------------------------------------------- 10 重要主要事項︰使用本產品前,請仔細閱讀本手冊,並妥善保管以備日後查閱。...
  • Page 2: 重要安全說明

    重要安全說明 若要避免在使用手持式攪拌器時出現嚴重人身傷害,請遵循基本安全防 範措施,包括下列各項。 操作攪拌器前,請閱讀所有說明、保護措施及警告 1. 錯誤使用可導致受傷。請小心處理。 2. 如果產品無人看守,組裝、拆卸或清潔之前,請中斷產品與電源的 連接。 3. 兒童不得使用本產品。請將本電器及其電線放在兒童接觸不到的地 方。 4. 身體、感官或心智弱能人士,或缺乏經驗及知識人士,需在了解相 關風險,並得到監督或指引有關本電器的安全使用方法之下方可使 用。 5. 兒童不得把玩本產品。 6. 請小心處理鋒利刀片、清空果汁碗及清潔產品。 7. 若要將熱水倒入攪拌器,請務必小心,由於突然產生蒸汽,水可能 會從設備濺出。 8. 更換配件或接近使用中的部件前,請關閉產品並斷開電源。 本産品供家居及類似環境使用,如: –店舖內的員工廚房區域、辦公室及其他工作環境; – 農舍; – 供客戶於酒店、汽車旅館及其他住宅類型環境; – 床及早餐類型環境。 此攪拌器符合歐盟1935/2004法規物料與食品接觸標準。...
  • Page 3 重要安全說明 保存此說明文件。 本設備僅供家庭使用。 注意: 確保攪拌器電源關閉後再移動。 注意: 未能遵循任何重要的防護措施及重要使用說明,將會誤用手持式 攪拌器,可能導致保用無效,且造成嚴重的人身傷害。...
  • Page 4: 部件名稱

    部件名稱 說明 編號 量杯 玻璃罐蓋 1.5 升玻璃罐 固定圈 I/0 搖桿式開關 旋鈕 產品技術資料 產品名稱 型號 額定電壓 額定頻率 額定功率 產品凈重 產品尺寸 桌上攪拌器 BL-1190 220-240V~ 50Hz 750W 3.0kg 191*199*389mm 產品技術資料 型號 產品名稱 玻璃罐 馬達資訊 保險絲(可選 MTP) BL-1190...
  • Page 5: 使用說明

    使用說明 桌上攪拌器 使用貼士 ● 首次使用攪拌器之前,請移除任何包裝材料及 推廣標籤。 ● 處理刀片時須小心,因為這些刀片極其鋒利。 ● 用溫肥皂水和軟布清洗罐、蓋、刀片組件及配 件。沖洗並完全晾乾。所有部件(馬達底座除 外)均可在洗碗機上層機架上清洗。 功能(速度) 馬達底座速度控制 在許多食譜中,最好採用速度與偶爾使用脈動的 組合方式來處理。 脈動 (PULSE) 瞬間迸發高功率。 切碎(1 速) 以低速輕輕翻轉拌勻精細食品,且適合乾濕食材 組合。 溶解(2 速) 高速特別適合打碎食材,製做冰沙飲品和其他精 細混合食品。...
  • Page 6 使用說明 注意: 攪拌過程中,熱水可能會噴出。 請勿攪拌熱水。 提示: ● 運行攪拌器只需適量時間。 ● 請勿過度攪拌食材。 ● 食品太厚或太粗糙時,使用 PULSE 設定,以在攪 拌罐內循環攪拌。 ● 請勿超出最高標記位。 ● 在攪拌過程中,如果馬達底座上方出現任何濕氣或 液體,請關閉攪拌器並從牆壁拔除電源。卸除攪拌 罐,並立即用乾布或紙巾擦拭馬達底座。 ● 攪拌器可處理的最大冰塊數量為 8 塊用標準冰盤製 做的冰塊。 ● 僅對需要短時爆發力的食品使用 PULSE 功能,例 如切碎堅果及粉碎冰塊。 ● 在 攪 拌 加 有 冰 塊 或 冰 凍 水 果 的 飲 品 時 , 請 使 用 PULSE 的短爆發力模式。...
  • Page 7 使用說明 提示: ● ● ● ● 註: ● ● ● 提示: 過載保護系統 ● ●...
  • Page 8: 異常分析及處理

    配方 食品 準備 數量 功能(速度) 時間 切碎(1 速); 牛奶、水果、優格、 混合飲料 最多 800ml 60 秒 溶解(2 速) 冰淇淋 冰沙或冰凍 冰塊不大於標準製冰 脈動; 最多 8 塊 60 秒 溶解(2 速) 水果 盤大小 調製燙 冷卻至室溫 切碎(1 速) 800ml 50-60 秒 例如,將 600 克胡蘿蔔切成 2 厘米的塊粒,並浸入 900 克水中 24 小時 註:...
  • Page 9: 清潔及保養

    清潔及保養 清潔設備機身、切碎器蓋、攪拌器機身 注意: 切割危險︰刀片非常鋒利。清潔時須 小心。 處於安全考慮,使用後請從電源插座拔除電源。 攪拌罐、刀片和蓋 避免食品殘留變乾。使用後請盡快遵循下述步驟 操作︰ 沖洗攪拌罐、刀片和蓋中的食品殘留。 ● 用溫肥皂水手洗,使用溫和的液體清潔劑和非 ● 研磨海綿。 馬達底座 若要清潔馬達底座,使用柔軟的濕布擦拭並完全 晾乾。擦掉電源線上的任何食品顆粒。 清潔劑 請勿對馬達底座或任何攪拌器部件使用磨料洗滌 墊或清潔器,因為這可能會刮傷表面。僅使用蘸 有肥皂水的軟布擦拭。 洗碗機 攪拌罐、蓋和刀片組件僅可在洗碗機上層機架上清洗。 頑固食品污漬和氣味 氣味較濃的食品(如小茴香和香菜)及某些蔬菜(如胡蘿蔔)可能會留下氣味或污漬。 若要清除,倒入溫肥皂水並加至最大標記位。擱置 5 分鐘。然後使用溫和的清潔劑和溫 水,清洗乾淨並完全晾乾。在貯存攪拌器和罐時取下蓋子。 貯存 豎直貯存攪拌器,並將攪拌罐裝在馬達底座上或置於旁邊。上面不要放置任何物品。讓 空氣流通,取下蓋子。...
  • Page 10: 電路原理圖

    電路原理圖 220V-240V/50Hz AC MOTOR FUSE (option MTP) (FUSE) SWITCH 220V-240V 環境保護 不得將本設備作為家庭生活垃圾棄置。使用壽命終止後,必須將設備送 到收集點,以便回收電氣和電子設備。收集並回收舊設備,採用環保、 健康的棄置方式,您將為保護自然資源做出重要貢獻。...
  • Page 11 TABLE BLENDER USER MANUAL BL-1190 CONTENT IMPORTANT SAFETY INSTRUCTIONS ----------------------------------------------- 1 PART NAME ----------------------------------------------------------------------------------- 3 TECHNICAL DATA OF THE PRODUCT ----------------------------------------------- 3 INSTRUCTIONS FOR USE---------------------------------------------------------------- 4 NUTRITIOUS ---------------------------------------------------------------------------------- 8 ABNORMALITY ANALYSIS AND HANDING------------------------------------------ 8 CLEANING AND MAINTENANCE ------------------------------------------------------- 9 CIRCUIT PRINCIPLE DIAGRAM--------------------------------------------------------- 10 IMPORTANT NOTE: Please read the manual carefully before operating your product.
  • Page 12: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS To avoid the risk of serious injury when using your hand blender, basic safety precautions should be followed, including the following as below. READ ALL INSTRUCTIONS, SAFEGUARDS, AND WARNINGS BEFORE OPERATING BLENDER 1. There is a potential injury from misuse. Please handle it with care. 2.
  • Page 13 IMPORTANT SAFETY INSTRUCTIONS – Bed and breakfast type environments. 10. This appliance conforms to EC Regulation 1935/2004 on materials and articles intended to come into contact with food. SAVE THESE INSTRUCTION. THIS UNIT IS INTENDED FOR HOUSEHOLD USE ONLY. Caution: Ensure that the blender is switched off before removing Caution: The failure to follow any of the important safeguards and the...
  • Page 14: Part Name

    TECHNICAL DATA OF THE PRODUCT Product Model Rated Rated Rated Product Porduct name voltage frequency power net.weight. size TABLE BL-1190 220-240V~ 50Hz 750W 3.0kg 191*199*389mm BLENDER TECHNICAL DATA OF THE PRODUCT Model Product name Glass jug Motor information Fuse( optional MTP) BL-1190...
  • Page 15: Instructions For Use

    INSTRUCTIONS FOR USE Table blender Wand use ● Before using your blender for the first time, remove any packaging material and promotional labels. ● Be careful when handling the blades as they are extremely sharp. ● Wash the jug, lids, blade assembly and attachments in warm soapy water with a soft cloth.
  • Page 16 INSTRUCTIONS FOR USE Caution: Hot liquids can erupt during blending. Do not blend hot liquids. Tip: ● Run the blender only for the appropriate amount of time required. ● Do not over blend ingredients. ● Use the PULSE setting when food is too thick or coarse to circulate within the blender jug.
  • Page 17 INSTRUCTIONS FOR USE Tip: ingredients before starting again. ● This rest will help protect the motor from wear and tear. ● The blender will not knead dough, or mash potatoes. ● Do not blend hot or boiling ingredients. Allow food to cool down to a warm state before placing in the blender.
  • Page 18: Abnormality Analysis And Handing

    FORMULA Functions Food Preparation Quantity Time (Speed) Milk, fruit, yoghurt, Chop (speed 1); Smoothie Max 800ml 60 secs ice cream Liquify (speed 2) Frozen no larger Pulse; Ice or frozen than standard ice Max 8pieces 60 secs Liquify (speed 2) fruit tray Blended...
  • Page 19: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Cleaning appliance body, chopper lid, whisk body Caution: Cut hazard: Blades in jar are very sharp. Use caution when cleaning. Unplug the power cord from the power outlet after use for safety reasons. Jug, blades and lid Avoid allowing food residue to dry on.
  • Page 20: Circuit Principle Diagram

    CIRCUIT PRINCIPLE DIAGRAM 220V-240V/50Hz AC MOTOR FUSE (option MTP) (FUSE) SWITCH 220V-240V Environmental protection The appliance must not be disposed of with regular household waste. At the end of its service life, the appliance must be properly delivered to a collection point for the recycling of electrical and electronic equipment.
