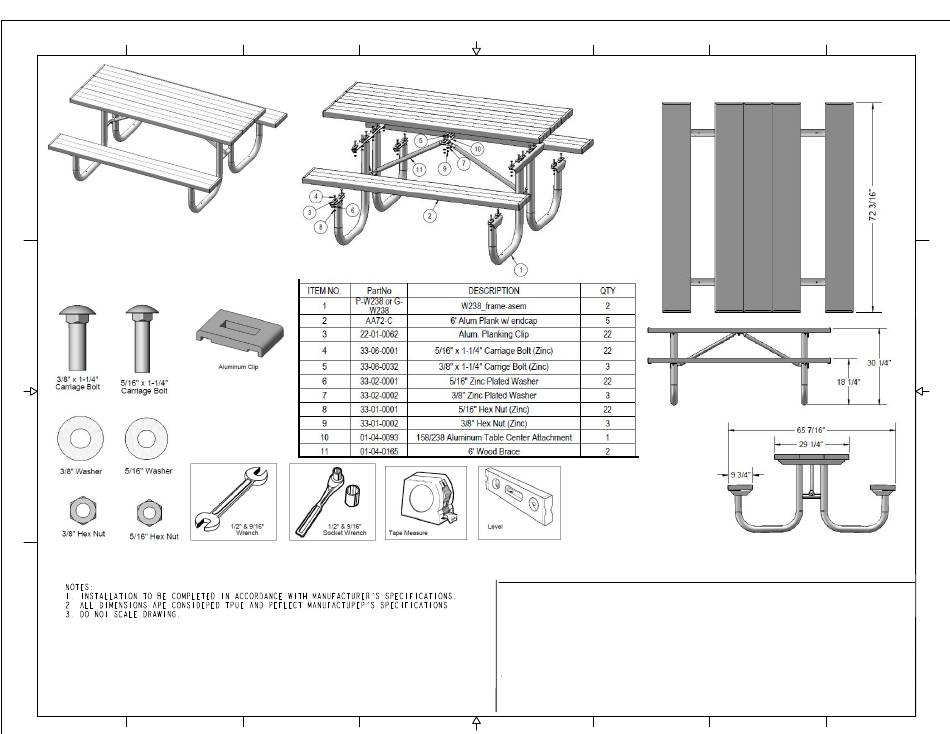

OCC Outdoors Products OCC-238-A8 Manual

8 7
D
Hardware
Included
C

Tools Required

B
WARRANTY: OCCOutdoors, Inc. guarantees all items for one full year to be free of defects in workmanship or materials when installed and maintained properly. We agree to repair or replace, any items determined to be
defective. Items specifically not covered by this warranty include vandalism, manmade or natural disasters, lack of maintenance, normal weathering or wear and tear due to public abuse.
A
This document contains OCC Outdoors Proprietary Information. No intellectual copyright or
license is granted by OCC Outdoors in connection with it. It is delivered on the express condition
that the document and the information contained in it shall be treated as confidential, shall not be
used for and purpose other than that for which it is hereby delivered (the use and maintenance of
the product supplied). It shall not be disclosed in whole or part to third parties and shall not be
duplicated in any manner without OCC Outdoors's prior approval.
8 7
6 5
Parts
6 5
4 3
Optional Surface Mount
Hardware:
5/16" x 5-1/2" Concrete
Expansion Anchor Bolts
(Not Included)
OCC Outdoors Products
PH: 1-800-821-7670
EMAIL - occcontact@occoutdoors.com
Fax: 1-317-862-9422
OCC-238-A8
Part #:
2/09/16
Date:
Page 1 of 2
4 3
2 1
Dimensions
OCC-238-A8 Extra Heavy Duty
Portable/Surface Mount 8' Picnic
Table with Walk Through Design.
Top & Seats are Aluminum
Planking, Frame is Powder
Coated Structural Steel Tubing
2 1
