Heat&Glo DRIFTWOOD-C32 Installation Instructions

DRIFTWOOD-C32, DRIFTWOOD-C36, DRIFTWOOD-C42
MODELS: COSMO32-IFT,COSMO32-IFT-B, COSMO36-IFT-B,COSMO42IFT, COSMO42-IFT-B, DVLINEAR36,
Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts or Abrasions. Wear protective gloves and safety glasses during installation.
CAUTION: Logs are fragile, handle with care.
NOTICE: Logs/Media must not be placed on or against burner or pilot shield. Sooting will occur.
Stones may be used with DRIFTWOOD-C32/C36/C42. They MUST be placed in a single layer and not cross the
burner or pilot shield. Sooting will occur.
Note: Media must be installed prior to installation of Driftwood Logs. Media installation instructions are included in the
appliance installation manual.

MODEL: COSMO32-IFT, COSMO32-IFT-B (

COSMO42-IFT, COSMO42-IFT-B, SLR-X-AU and SLR-X-AU-L go to page 4.)
NOTICE: To simplify the installation process, use Figure 1 to positively identify each individual log before beginning
installation.
1 1

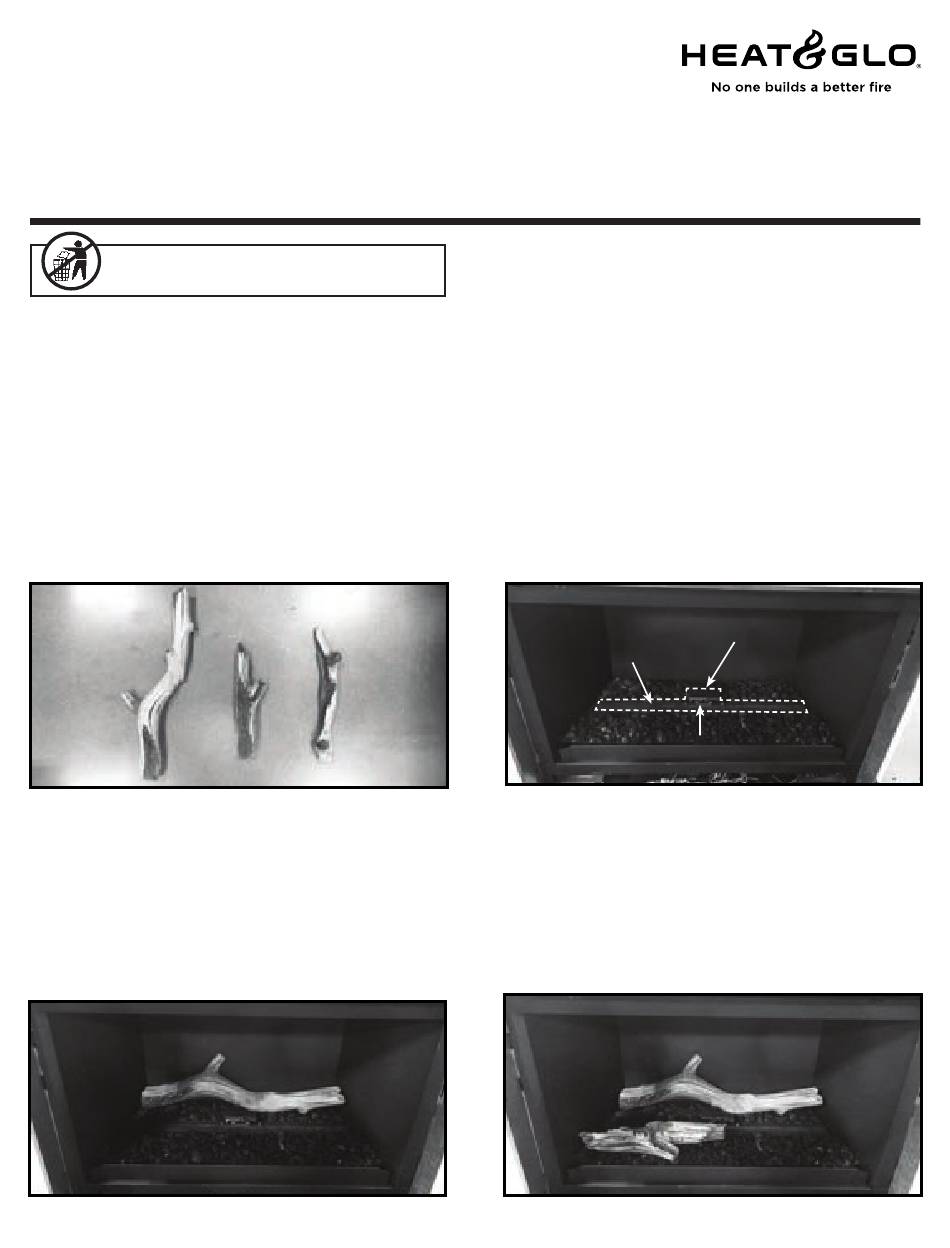

Figure 1 Log Identifi cation - DRIFTWOOD-C32
Note: Logs may need to be adjusted using slight back and forth movements in order for them to settle into the
media securely.
LOG #1: Place Log #1 into position by setting the log onto the media and centering the log left to right between the walls of
the fi rebox. Ensure Log #1 is pushed as far back in the fi rebox as possible. The log may touch the back wall. See Figure 3.
LOG #2:
Place Log #2 into position by setting it onto the media in front of the burner and touching the left wall of the fi rebox. The fork
of the log should be facing right. Center Log #2 front to back between the burner and the front of the basepan. See Figure 4.
1-1/2 IN. TO 2 IN. GAP 1-1/2 IN. TO 2 IN. GAP
1 1
Figure 3 Log #1 Installed - COSMO32-IFT, COSMO32-IFT-B
Heat & Glo • DRIFTWOOD-C32, DRIFTWOOD-C36, DRIFTWOOD-C42 Installation Instructions • 2491-948 Rev. G • 8/22

Driftwood Logs

SLR-X-AU, SLR-X-AU-L, B41L-AU
Installation Instructions
3 3
2 2
1 1
PILOT HOOD PILOT HOOD
For COSMO36-IFT-B, DVLINEAR36, B41L-AU see page 2. For
BURNER BURNER
NO LOGS OR MEDIA IN THIS AREA NO LOGS OR MEDIA IN THIS AREA
Figure 2 Burner and Pilot Hood Location - COSMO32-IFT,
COSMO32-IFT-B
Figure 4 Log #2 Installed - COSMO32-IFT, COSMO32-IFT-B
PILOT HOOD PILOT HOOD
1 1
2 2
1
