In Win IW-RJ424-03 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

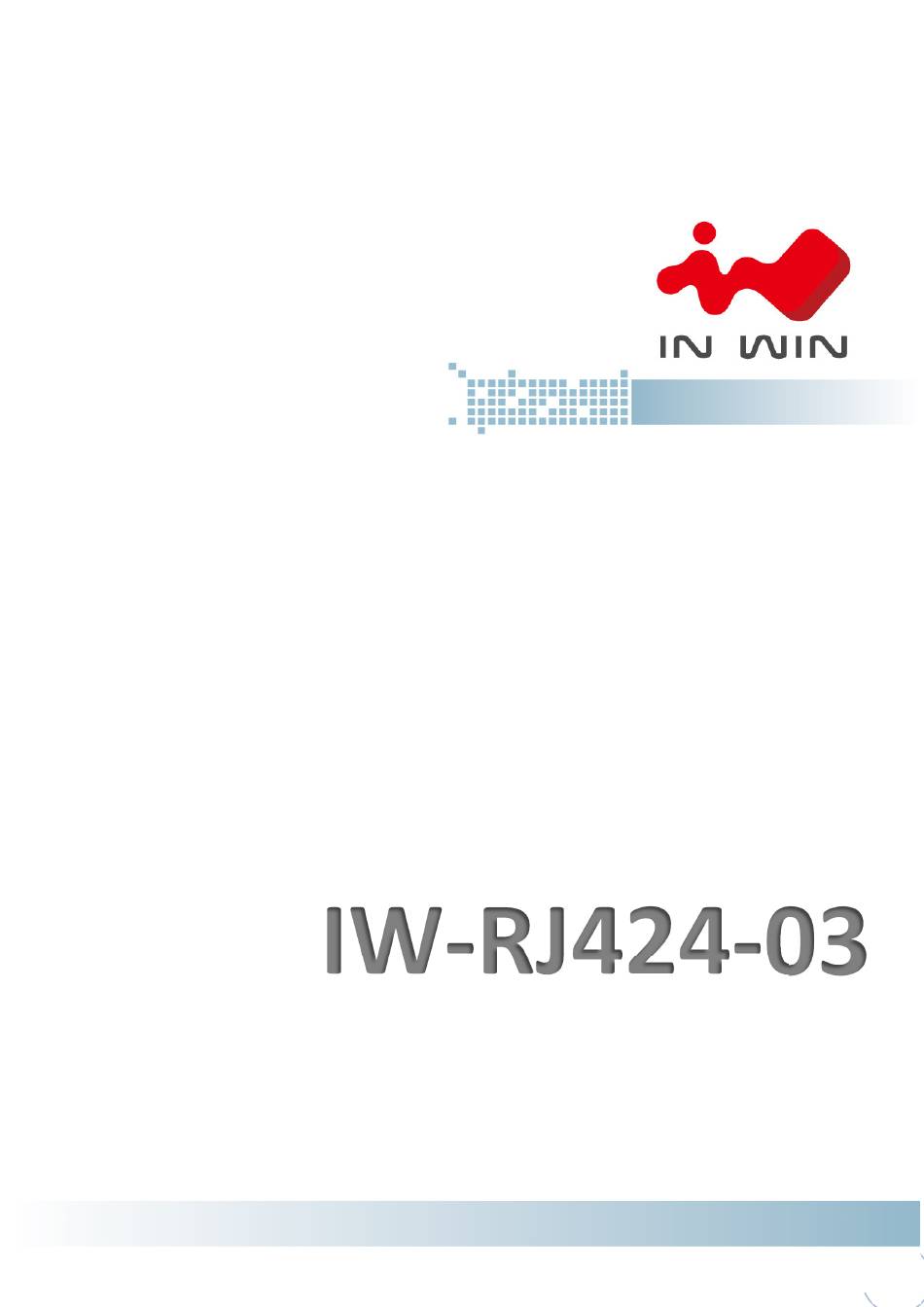

IW-RJ424-03
User's Manual
-
0 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IW-RJ424-03 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for In Win IW-RJ424-03

  • Page 1 IW-RJ424-03 User’s Manual...

  • Page 2: Table Of Contents

    Table of Content PREFACE SAFETY INFORMATION SPECIFICATIONS 1 Product Introduction Box Content General Information 1.2.1 Front Panel Controls and Indicators 1.2.2 Rear Panel Configuration P.10 1.2.2.1 Expander Configuration P. 1 0 2 Hardware Installation Removing and Installing a Hard Drive P.11 2.1.1 Installing a Hard Drive P.11...
  • Page 3 Software Management P.22 6.3.1 System Management Structure P.22 6.3.1.1 With Ethernet Management P.22 6.3.1.2 Without Ethernet Management P.23 6.3.1.3 Network Protocols Support P.24 6.3.1.4 Operation Modes P.24 6.3.2 Serial Port Management P.27 6.3.2.1 CLI P.28 6.3.2.1.1 Scenario 1: Expander with Ethernet board P.28 6.3.2.1.2 Scenario 2: Expander w/o Ethernet board...
  • Page 4 6.3.10 Firmware Upgrade P.67 6.3.10.1 CLI (UART without Ethernet Board) P.67 6.3.10.2 CLI (UART, Telnet, SSH with Ethernet Board) P.70 6.3.10.3 Web-GUI (With Ethernet Board) P.71 7 Q&A P.72 8 Technical Support P.75...

  • Page 5: Preface

    In Win’s server website to download the latest updated version. SAFETY INFORMATION To ensure safe and smooth operation of your In Win IW-RJ424-03, it is essential that you choose an appropriate location for the system, provide an appropriate operating environment, and adequate power for all components of the system.
  • Page 6 Installing or removing jumpers: A jumper is a short length of conductor used to close, open or bypass part of an electronic circuit. Jumpers on In Win backplane have a small tab on top that you can pick up with your fingertips. Grip the jumper carefully, and plug the jumper to cover the jumper pins on the backplane.

  • Page 7: Specifications

    SPECIFICATIONS Model Name IW-RJ424-03 Standard EIA-RS310D Dimensions (D x W x H) 520.7 x 482.6 x 176 mm (20.5" x 19" x 7") Storage External: Hot Swap 3.5” x 24 SAS 12Gbps Maximum Capacity Cascading to 3 enclosures 72 PCS HDDs including Host Server...

  • Page 8: Product Introduction

    1 Product Introduction Box Content...

  • Page 9: General Information

    General Information In Win IW-RJ424-03 JBOD Enclosure is a 4U rackmount storage chassis with 24 tray-less bays, dual expander module, dual fan module, and redundant 550W power supply. IW-RJ424-03 is capable to provide excellent performance and allowing users cascade the capacity with three...
  • Page 10 1.2.1 Front Panel The front panel allocated on the upper left handle. The panel contains control buttons and LED indicators. Name Color Status Description Power ON/OFF Button with Blue Solid on System is powered on System is not powered on Mute Button Press the button to turn off the beeper Chassis ID Button with LED...

  • Page 11: Rear Panel Configuration

    1.2.2 Rear Panel Configuration Name Name Power Supply Module 1 Fan Module 2 Power Module 2 Secondary Expander Module Fan Module 1 Primary Expander Module 1.2.2.1 Expander Configuration Name Color Status Description Chassis ID button with LED Blue Solid on Press the button to activate system identification Host HBA/RAID card connection Uplink SAS Port...

  • Page 12: Hardware Installation

    2 Hardware Installation Removing and Installing a Hard Drive In Win IW-RJ series JBOD is featured tray-less disk population, users do not need to use screw to mount disks, and be able to perform quick hard disks replacement. 2.1.1 Installing a Hard Drive Step 1: Press the release button then pull outward the handle.

  • Page 13: Removing And Installing A Fan Module

    Removing and Installing a Fan Module In Win IW-RJ series JBOD is equipped a pair of fan module. These fan modules support hot swap and redundancy. Once any of the fan fails, user can easily replace and maintain the system.

  • Page 14: Installing A Fan Module

    Insert Removing and Installing a PSU Module In Win IW-RJ series JBOD built-in a redundant power supply module. With this function, system is capable to keep working whether as one power supply unit is failure. To replace it, user only need to release the failure one then insert a good one.

  • Page 15: Installing A Psu Module

    Insert Removing and Installing a Expander Module In Win IW-RJ series JBOD contains a set of redundant expander module. The bottom one is the primary expander and the upper one is the secondary. The primary expander module includes an Ethernet management module, which allow user monitor and manage the system through Ethernet.

  • Page 16: Installing A Expander Module

    Installing Rail In Win IW-RJ series JBOD is a rackmount model, which support EIA-RS310D standard cabinet and chassis rack. In Win provides standard fixed slide rail to let users mount the JBOD enclosure on to the cabinet. 2.5.1 Identifying the slide Rail The slide rail by your order might be different.

  • Page 17: Fixed Rail

    2.5.2 Fixed Rail Step 1: Insert the fixed rail from the rear side of chassis, and make sure the rail goes through the space between chassis and the bracket. Conduct the same action to the other side. Step 2: Use the screws in the accessory box to fix the rail and chassis on the cabinet. Step 1 Insert 2.5.3 Slide Rail...
  • Page 18 2.5.3.2 Attach the inner rail to the chassis Step 1: Removing the bracket of the both sides to reveal the standoff. Step 2: Install the inner rail onto the chassis. Make sure the key holes and the standoff are well locked which you will hear a click. Step 3: Repeat the same action to the other side.

  • Page 19: Mount The Rail Bracket To The Cabinet

    2.5.3.3 Mount the rail bracket to the cabinet Step 1: Extend the bracket over the rear rack of the cabinet. Step 2: Pull back to and push bracket’s standoff into the screw holes on the rack, if your action is correct, you will hear a click. Step 3: Extend the opposite side of bracket to the front rack of the cabinet.

  • Page 20: Expander Board Introduction

    3 Expander Board Introduction Location Description BP Golden Finger Connector IO Board Golden Finger Connector EFN1 Expander FAN Connector Single/Dual Power Module Select: Single: Jumper 1-2; Dual: Jumper 2-3 ICE Debug Port Smart Console Debug Port...

  • Page 21: Ethernet Management Card Introduction

    4 Ethernet Management Card Introduction Location Description USB Reboot System Reset Power LED MCU Status LED UART Port CON1 USB Port UART Port CON2 Ethernet Port...

  • Page 22: Compatibility Lists

    To reach best performance and avoid system failure, In Win strongly recommend users choosing the components from In Win’s compatibility list. All the components are tested in In Win’s lab and assured the components are working well with In Win’s chassis. The compatibility lists include:...

  • Page 23: Software Management

    Software Management 6.3.1 System Management Structure IN WIN JBOD Systems support out-of-band Network Management feature enabling rich set of protocols and a flexible way for SAS Expander management anytime from anywhere. 6.3.1.1 With Ethernet Management...

  • Page 24: Without Ethernet Management

    With proper IP address setting, Users can manage system through Telnet, SSH, Web- GUI and SNMP remotely. 6.3.1.2 Without Ethernet Management In this configuration, when there is no Ethernet board, Users can only manage Primary or Secondary SAS Expanders by connecting serial console cable to Primary or Secondary SAS Expander module separately.

  • Page 25: Network Protocols Support

    Our systems support Static IP address or DHCP dynamic IP address as per users’ configuration. 6.3.1.4 Operation Modes IN WIN JBOD systems Ethernet Management provide a flexibility of modes for different scenarios by simply applying CLI commands to change. Ethernet management support 2 modes – Normal Mode and Alone Mode.
  • Page 26 In this mode, users can manage both SAS Expander by only one Ethernet board. This is the default operation mode of the Ethernet mgmt. board. To check the operation mode, applying hidden command “save alone” to view. “save alone 0” for Normal mode.
  • Page 27 Discrete Mode: Ethernet Board to manage the SAS Expander it resides. There should be Ethernet board on any SAS Expander so it provide Network Management capability. In this mode, users can manage the SAS Expander the Ethernet board resides on. Users will need 2 Ethernet board to manage both SAS Expander through network.

  • Page 28: Serial Port Management

    Please be sure to enable Alone mode on both Ethernet mgmt. boards and do a system reboot so the Alone mode can work properly. Whenever the Ethernet mgmt. board run in Alone mode. There is only one sub- directory “Expander” can be seen and jump to it for SAS Expander management. 6.3.2 Serial Port Management RS-232 port on Expander module provides a serial connection for users to manage JBOD system with terminal application such as Tera Term, Hyper Term…etc.

  • Page 29: Cli

    6.3.2.1 CLI Depending on the system configuration, there are 2 scenarios of CLI usage will be met. One is Expander with Ethernet management board and the other is Expander w/o Ethernet management board. 6.3.2.1.1 Scenario 1: Expander with Ethernet board As an Ethernet Management board exists, rich set of network protocols are leveraged for flexible remote management.
  • Page 30 Type “<command>” for displaying the current setting of the specific command. Type “<command> ?” for displaying specific command usage.
  • Page 31 “cd primary” to change directory for primary expander management. “cd ..” to change directory back to upper layer. Usually used on changing from expander layer back to Ethernet layer. “cd secondary” to change directory for secondary expander management. The changes have been made would take effect immediately as the running-config. Please be sure to apply “save”...

  • Page 32: Scenario 2: Expander W/O Ethernet Board

    6.3.2.1.2 Scenario 2: Expander w/o Ethernet board When there is no Ethernet Board on top of the Primary Expander module users need to connect serial console to Primary or Secondary Expander for managing them separately. “bpP >” or “bpS >” prompts in Console Terminal means the system is without Ethernet board installed and no network access support.

  • Page 33: Network Management

    Please note that the JBOD systems share the same Expander CLI commands no matter it is with or without Ethernet Management board inside unless otherwise specified. 6.3.3 Network Management An Ethernet Board is required to support Network management. The Ethernet board sits on top of the Primary Expander module to provide Network Management in various protocols such as Telnet, SSH, Web-GUI, SNMP.

  • Page 34: Telnet

    * For security reason, we strongly recommend users to make change of the password immediately right after the system is setup online. 6.3.3.1 Telnet Telnet is default enabled in Ethernet service. It provides the same level of CLI commands as it is through RS-232 console port. The difference from serial console is it requires Credential - Username and Password to gain access to Telnet session.

  • Page 37: Web-Gui

    6.3.3.3 Web-GUI Web-GUI is the easiest way to manage JBOD system. It is default enabled on system. Users can simply open Web Browser and giving the JBOD management IP address in URL address field to start accessing system Login Page...
  • Page 38 Version Page System Page...

  • Page 39: Snmp

    SNMP is a popular network device management protocol that is widely used by IT people to manage systems, devices and equipment which are with SNMP support. IN WIN JBOD system has SNMP agent inside the network management board supporting SNMP v1 and v2c.
  • Page 40 Check via Web...
  • Page 41 Any SNMP Managers can be used to access system information by properly configuring system setting including IP address, Read community string, Write community string to match the setting on system. And compile IN WIN JBOD MIB file to the manager is necessary. Below an example to browse the system...

  • Page 42: Version Information

    6.3.4 Version Information Users can check the system hardware and firmware version through various ways. 6.3.4.1 CLI (UART without Ethernet Board) “sys rev” display compact Expander hardware, firmware and MFG version. “rev” display verbose system version information.

  • Page 43: Cli (Uart, Telnet And Ssh With Ethernet Board)

    6.3.4.2 CLI (UART, Telnet and SSH with Ethernet Board) Type “version” command on Ethernet Layer to display all the version information including Ethernet firmware version, Expander HW version, Expander firmware version and MFG CFG file version...
  • Page 44 To check SAS Expander versions only, users can change directory to Expander layer and type “sys rev” command to check Expander version information...

  • Page 45: Web-Gui

    6.3.4.3 Web-GUI Type system IP address on Web Browser URL address field to gain access to the system. After logging in, click “Version” button on the left pane to view the system version information on the right pane. Scroll down to view all information if the display is out of page.

  • Page 47: Cli (Uart, Telnet And Ssh With Ethernet Board)

    6.3.5.2 CLI (UART, Telnet and SSH with Ethernet Board) Type “sys alarm” command on Expander layer would display the System sensors’ reading and their status. Please note that the Expander temperature sensor “Exp Die” is located on the Expander chip so need to change directory to Primary and Secondary to read its status respectively.

  • Page 48: Web-Gui

    6.3.5.3 Web-GUI Type system IP address on Web Browser URL filed to gain access to the system. After logging in, click “System” button on the left pane to view the system status information on the right pane. Scroll down to view all information if the display is out of page.

  • Page 49: Network Settings

    6.3.6 Network Settings Network settings is for displaying and setting the system network information including Current Network Status, DHCP/Static IP Address selection, Network Services, Mail configuration, SNMP configuration. 6.3.6.1 CLI (UART, Telnet and SSH with Ethernet Board) There are a couple network setting commands on Ethernet layer such as “ipaddr”, “gateway”, “netmask”, …etc.

  • Page 50: Web-Gui

    6.3.6.2 Web-GUI Type system IP address on Web Browser URL filed to gain access to the system. After logging in, click “Network” button on the left pane to view the network information on the right pane. Scroll down to view all information if the display is out of page.

  • Page 51: Disk Information

    6.3.7 Disk Information Disk information is to show the disk drives status on the system including Bay id, Phy id, SAS Address, Link speed and current status. 6.3.7.1 CLI (UART without Ethernet Board) Type “sys hdd” command to display the system hard disk drives status on the system.

  • Page 53: Web-Gui

    6.3.7.3 Web-GUI Type system IP address on Web Browser URL filed to gain access to the system. After logging in, click “Disk” button on the left pane to view the disk drives information on the right pane. Scroll down to view all information if the display is out of page.

  • Page 54: Zone Setting

    6.3.8 Zone Setting 6.3.8.1 CLI (UART without Ethernet Board) 6.3.8.1.1 Type “c.zone curr” command to show the current zone running setting 6.3.8.1.2 Type “c.zone slot 1 1~6” to configure Zone 1 containing Slot 1 to Slot 6 disk drives. 6.3.8.1.3 Type “c.zone config”...
  • Page 55 6.3.8.2.2 Type “c.zone slot 1 1~6” to configure Zone 1 containing Slot 1 to Slot 6 disk drives. 6.3.8.2.3 Type “c.zone config” to show the current zoning configuration. A system reboot is required to make the configuration take effect. 6.3.8.2.4 Type “c.zone down 1”...

  • Page 56: Web-Gui

    6.3.8.3 Web-GUI 6.3.8.3.1 Type system IP address on Web Browser URL filed to gain access to the system. After logging in, click “Zone” button on the left pane to view and configure the Zoning setting of the system 6.3.8.3.2 “Current Zone Configuration” session shows the current zone setting on the system including the disk bay assignment of zone and the cascading port zone group.

  • Page 57: Firmware Upgrade

    6.3.9 Firmware Upgrade Firmware upgrade function provides a way to update system firmware when necessary. There are 3 firmware for IN WIN JBOD system: 1. Ethernet Management board Firmware (when there is Ethernet Management board) 2. SAS Expander Board Firmware 3.
  • Page 58 6.3.9.1.1 SAS Expander Firmware “fwdl” command on serial console. Type “y” to commit firmware upgrade. Select xmodem as the protocol to transfer file.
  • Page 59 Select the correct SAS Expander firmware file. Click on “Open” to start the selected firmware transferring to SAS Expander. Serial console would then start firmware transfer. After firmware transfer completed, reboot Expander to activate new firmware.
  • Page 60 6.3.9.1.2 SAS Expander MFG CFG binary Similar to firmware upgrade, typing “mfgdl” on console. Type “y” to commit MFG file upgrade. Select xmodem as the file transfer protocol. Select the correct MFG CFG file from file browser. Click “Open” to start file transfer. Serial console would then start file transfer.

  • Page 61: Cli (Telnet Or Ssh With Ethernet Board)

    6.3.9.2 CLI (Telnet or SSH with Ethernet board) When there is an Ethernet Management board on the system users should upgrade Ethernet Board firmware, SAS Expander firmware and MFG CFG file through network instead of xmodem when using CLI commands. All sort of firmware upgrade goes through TFTP and the system would intelligently upgrade firmware to the right hardware.
  • Page 62 6.3.9.2.1 Ethernet Management Board Firmware “upgrade <tftp_server_ip> <filename> command to start Ethernet Firmware upgrade.
  • Page 63 6.3.9.2.2 SAS Expander MFG CFG binary Same as above by using the Expander Firmware filename in command.
  • Page 64 6.3.9.2.3 SAS Expander MFG CFG binary Same as above by using the Expander MFG CFG binary filename in command.
  • Page 65 6.3.9.3 Web-GUI (with Ethernet board) When there is an Ethernet Management board on the system users can upgrade system firmware through Web-GUI other than CLI in console or Telnet session. Upgrade system firmware through Web-GUI is much easier than other ways. Just simply select the firmware by file browser and click ‘Apply’...
  • Page 66 6.3.9.3.3 Click “Tool” button on the left pane and scroll down to “Software Upgrade” session on the right pane. 6.3.9.3.4 Click “Choose File” button to select the firmware being upgraded from file browser and click “Open” to commit. The firmware can be Ethernet board firmware, SAS Expander firmware or SAS Expander MFG CFG file.
  • Page 67 6.3.9.3.5 Click “Upgrade” button to start firmware upgrade. 6.3.9.3.6 Web would direct to a page telling firmware is upgrading. After upgrade is done, Web will direct to the Login page.
  • Page 68 6.3.10 System Logs IN WIN JBOD systems support the capability to record system information to NVRAM for the purpose of activities history monitoring. The recorded information will retain until users issue clear command to erase from NVRAM or the NVRAM is full. Two categories of system information - Info and Fail would be recorded when happens.
  • Page 69 6.3.10.1.1 “nvlogs” command to display all logs 6.3.10.1.2 “nvlogs info” to display only the information category logs.
  • Page 70 6.3.10.1.3 “nvlogs fail” to display only the Fail category logs. 6.3.10.1.4 “nvlogs clear” to erase all the logs from NVRAM...
  • Page 71 6.3.10.2 CLI (UART, Telnet, SSH with Ethernet Board) Users can check the system logs by connecting UART cable to Expander RS-232 port directly, Telnet or SSH to the system and change directory to Primary or Secondary (if existed) SAS Expander layer. 6.3.10.2.1 “nvlogs”...

  • Page 72: Web-Gui (With Ethernet Board)

    6.3.10.3 Web-GUI (With Ethernet Board) 6.3.10.3.1 Type system IP address on Web Browser URL filed to gain access to the system. After logging in, click “Log” button on the left pane to view and manage the Logs of the system. 6.3.10.3.2 The Log web page provides an easier way for managing the system logs including displaying different category of system logs and clearing the logs by clicking on the corresponding buttons.
  • Page 73 7 Q&A Section 1: Expander 1. What is the In Win Expander’s function? A: The expansion the capacity, the expander can manage more SAS drives via one SAS cable in the JBOD. 2. Why IW-RS series storage server chassis are built-in expander board, and IW-RJ series JBOD...
  • Page 74 SAS disk provides performance and reliability. SATA provide a choice of cost selective option. 8. Are SAS and SATA disks are compatible with both In Win IW-RS series and IW-RJ series? A: Yes, In Win IW-RS and IW-RJ support both SAS and SATA disks.
  • Page 75 20. Can 12Gb SAS ports compatible with 6Gb SAS or 6Gb SATA ports? Any adaptor can convert? A: 12Gb SAS does not align with 6Gb SAS, so In Win does not have adaptor for this case. 21. If the arm or handle is broken, how can I fix or replace it?
  • Page 76 22. If I would like to modify the GUI, how can I access. A: The copyright of the GUI is belonging to In Win. If you would like to amend anything of the GUI, please contact In Win sales for ODM service.
