- Page 1 ≤ EVCA210 Electric vehicle charge-point adaptor User guide EVCA_A5_UG_en_V01.indd 1 EVCA_A5_UG_en_V01.indd 1 21.10.20 18:44 21.10.20 18:44...
-
Page 2: Safety Warnings

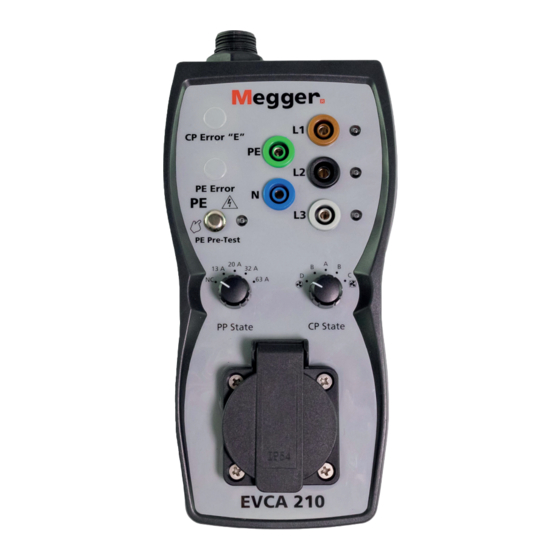

This user guide describes the operation and functions of the EVCA210 Electric Vehicle Charge-point Adaptor: Megger Limited reserves the right to change the specification of these instruments at any time without notice. Safety Warnings EVCA210 Electric Vehicle Charge-point Adaptor Safety Warnings and Precautions must be read and understood before the instrument is used. - Page 3 CATIII Measurement category III: Equipment connected between the consumer unit and the electrical outlets. CATII Measurement category II: Equipment connected between the electrical outlets and the user’s equipment. www.megger.com User Guide EVCA_A5_UG_en_V01.indd 3 EVCA_A5_UG_en_V01.indd 3 21.10.20 18:44 21.10.20 18:44...
-
Page 4: Symbols Used On The Instrument
IEC/EN 62851-1 and IEC/ HD 60364-7-722 standards, in combination with suitable test instruments. EV Type 1 -Charging Plug EV Type 2 (EVCA210-UK only) Charging Plug User Guide www.megger.com EVCA_A5_UG_en_V01.indd 4 EVCA_A5_UG_en_V01.indd 4 21.10.20 18:44 21.10.20 18:44... - Page 5 13A socket for simple test instrument lead connection. ■ CP (Control Pilot) signal test sockets. Two 4 mm ports for connection to an ■ oscilloscope. Both Type 1 and Type 2 charging plugs ■ www.megger.com User Guide EVCA_A5_UG_en_V01.indd 5 EVCA_A5_UG_en_V01.indd 5 21.10.20 18:44 21.10.20 18:44...
- Page 6 Before carrying out testing with this adaptor, the operator should be familiar with all relevant standards associated with the tests being undertaken. The Megger EVCA210 test adaptor is designed to simulate the connection of an electrical vehicle to the charging point under test.
- Page 7 The Megger EVCA210 has available two connection cables with the following plug options: Type 2 connector plug - for charging points with panel mounted socket outlet or fixed cable with...
-
Page 8: Electrical Testing
PP settings correctly set (see below for details), the operator can connect either single or multifunction test equipment to the adaptor to undertake the following live tests: Earth loop impedance RCD operation Phase sequence Proximity Pilot - PP State User Guide www.megger.com EVCA_A5_UG_en_V01.indd 8 EVCA_A5_UG_en_V01.indd 8 21.10.20 18:44 21.10.20 18:44... - Page 9 The duty cycle of the PWM signal defines the possible available charging current. For details of the communication protocol please refer to IEC 61851-1 and any documentation provided by the manufacturer of the charging point under test. www.megger.com User Guide EVCA_A5_UG_en_V01.indd 9 EVCA_A5_UG_en_V01.indd 9 21.10.20 18:44...
-
Page 10: Plug Socket
These are directly connected to the L1, L2, L3, N and PE conductors of the tested charging point via the connection cable. These ports are to be used ONLY for measuring purposes using an appropriate test instrument. No load should be connected across any of the terminals. User Guide www.megger.com EVCA_A5_UG_en_V01.indd 10 EVCA_A5_UG_en_V01.indd 10 21.10.20 18:44... -
Page 11: Maintenance
10A, for short durations. The EVCA210 is protected against overload by a 10 A fuse. Maintenance: Should the EVCA210 adaptor be used as detailed in this user manual, no special maintenance is required. However, if functional errors occur during normal operation, contact your local Megger Repair Centre for assistance. Fuse Replacement: If no voltage is present between the L &... - Page 12 Ceramic 10 A/250 V (5 mm x 20 mm) Product manufactured in China Maintenance Do not open the adapter case. It contains no user-serviceable parts. Repair or servicing should be performed only by qualified personnel. User Guide www.megger.com EVCA_A5_UG_en_V01.indd 12 EVCA_A5_UG_en_V01.indd 12 21.10.20 18:44 21.10.20 18:44...
-
Page 13: Weee Directive
Megger is registered in the UK as a Producer of Electrical and Electronic equipment. The registration No is; WEE/DJ2235XR. Users of Megger products in the UK may dispose of them at the end of their useful life by contacting B2B Compliance at www.b2bcompliance.org.uk or by telephone on 01691 676124. - Page 14 EVCA210 Electric vehicle charge-point adaptor User Guide www.megger.com EVCA_A5_UG_en_V01.indd 14 EVCA_A5_UG_en_V01.indd 14 21.10.20 18:44 21.10.20 18:44...
- Page 15 Notes www.megger.com User Guide EVCA_A5_UG_en_V01.indd 15 EVCA_A5_UG_en_V01.indd 15 21.10.20 18:44 21.10.20 18:44...
- Page 16 Manufacturing sites Megger Limited Megger GmbH Megger USA - Valley Forge Archcliffe Road Weststraße 59 Valley Forge Corporate Center Dover 52074 2621 Van Buren Avenue Kent Aachen Norristown CT17 9EN Germany Pennsylvania, 19403 ENGLAND +49 (0) 241 91380 500 +44 (0)1 304 502101 info@megger.de...
