A6M+One
Installation Guide
Three-phase - Transformer-coupled
Version:
Issue Date:
Wattwatchers Pty Ltd - ABN 47 123 010 588
1.3
10 May 2019
About the A6M+One

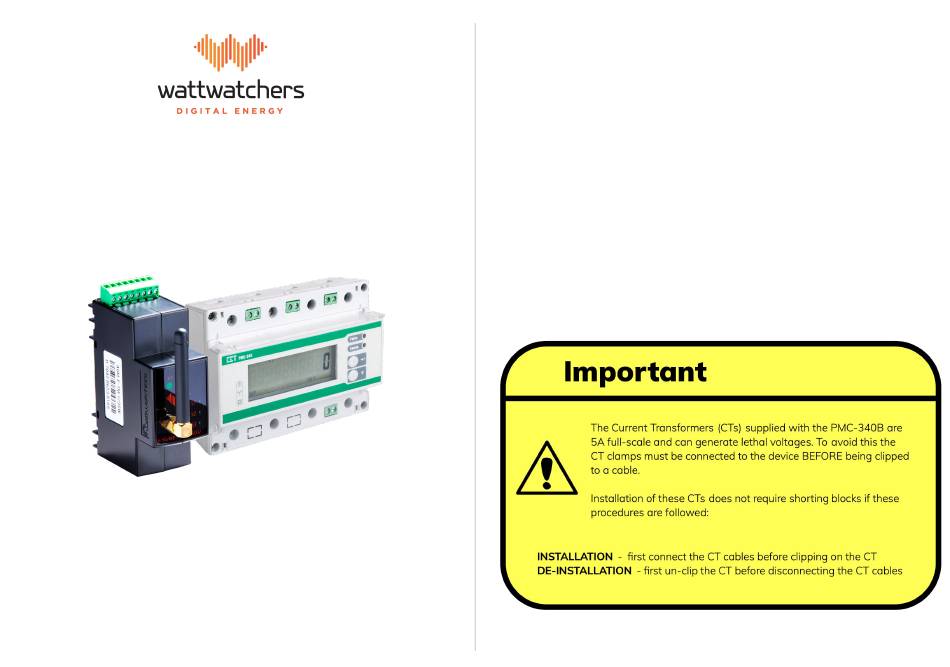

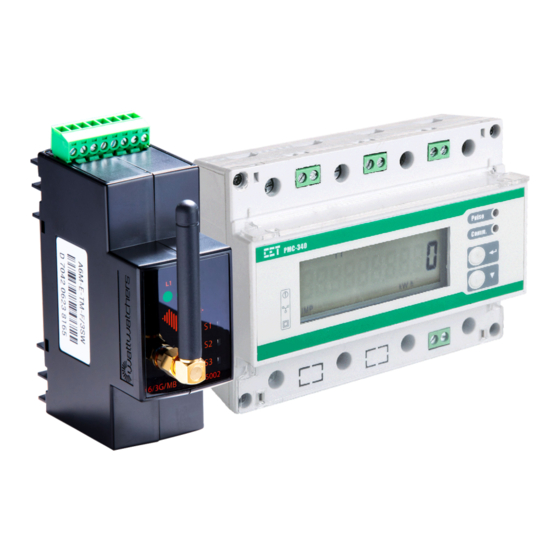

The Wattwatchers A6M+One billing solution provides NMI-certified billing data for
applications such as solar PPAs, EV charger disaggregation, embedded networks,
and microgrids, with an additional 6 circuits of performance monitoring capability.
The A6M+One delivers real-time monitoring, NMI- compliant billing and
circuit-switching capability in a neat, DIN-rail mounted package:
➔ Two real-time, three-phase monitoring points (using the Auditor 6M)
➔ One NMI-compliant billing channel using the PMC-340B-B (this is the 'One')
➔ Two independent switching channels which can be used to control contactors
May 2019
Page 1 of 6
Advertisement
Related Manuals for wattwatchers A6M+One
Summary of Contents for wattwatchers A6M+One
- Page 1 About the A6M+One The Wattwatchers A6M+One billing solution provides NMI-certified billing data for applications such as solar PPAs, EV charger disaggregation, embedded networks, and microgrids, with an additional 6 circuits of performance monitoring capability. A6M+One The A6M+One delivers real-time monitoring, NMI- compliant billing and ...
-
Page 2: Table Of Contents
➔ Billing CTs (typically 600A/5A to suit the circuit and cables or bus-bars) Please quote one serial number per support request ● ➔ Monitoring CTs + green CT connector (where the A6M+One is for monitoring) ➔ Modbus cable Our team is available for urgent matters from 0900 to 1700, Monday to Friday, ... -
Page 3: Install The Pmc-340B-B
2Phase, 3Wire, 2CTs 3Phase, 4Wire, 3 CTs Wattwatchers Pty Ltd - ABN 47 123 010 588 May 2019 Page 3 of 6 ... - Page 4 ➔ The white wires connect to terminals labeled “≡” (three wires in each terminal) ➔ The pink wires connect to the terminals labeled “+” Wattwatchers Pty Ltd - ABN 47 123 010 588 May 2019 Page 4 of 6 ...
-
Page 5: Connect The Modbus Cable
➔ Connect P1 to △ in order to power the switches. The login credentials are provided by your Wattwatchers representative. ● ➔ Connect each switch output you require to a contactor and terminate the ... -
Page 6: Validate Installation
CT size connection e.g. CT1/P1 400A. MB Red (blinks every 5 seconds) PMC-340 not detected Green (blinks off every 5 minutes) PMC-340 is detected Wattwatchers Pty Ltd - ABN 47 123 010 588 May 2019 Page 6 of 6 ...
