BRKT FLT1339FULL
Low Profile Small Full Back Fixed Panel Mount
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MANUEL D' INSTRUCTIONS
b
r
a
n
d
CAUTION: DO NOT EXCEED MAXIMUM
LISTED WEIGHT CAPACITY. SERIOUS
INJURY OR PROPERTY DAMAGE MAY
OCCUR!
Max Screen Size: 39"
Max weight: 50lbs
V4
V1
P1
Advertisement
Summary of Contents for BRKT Brand FLT1339FULL

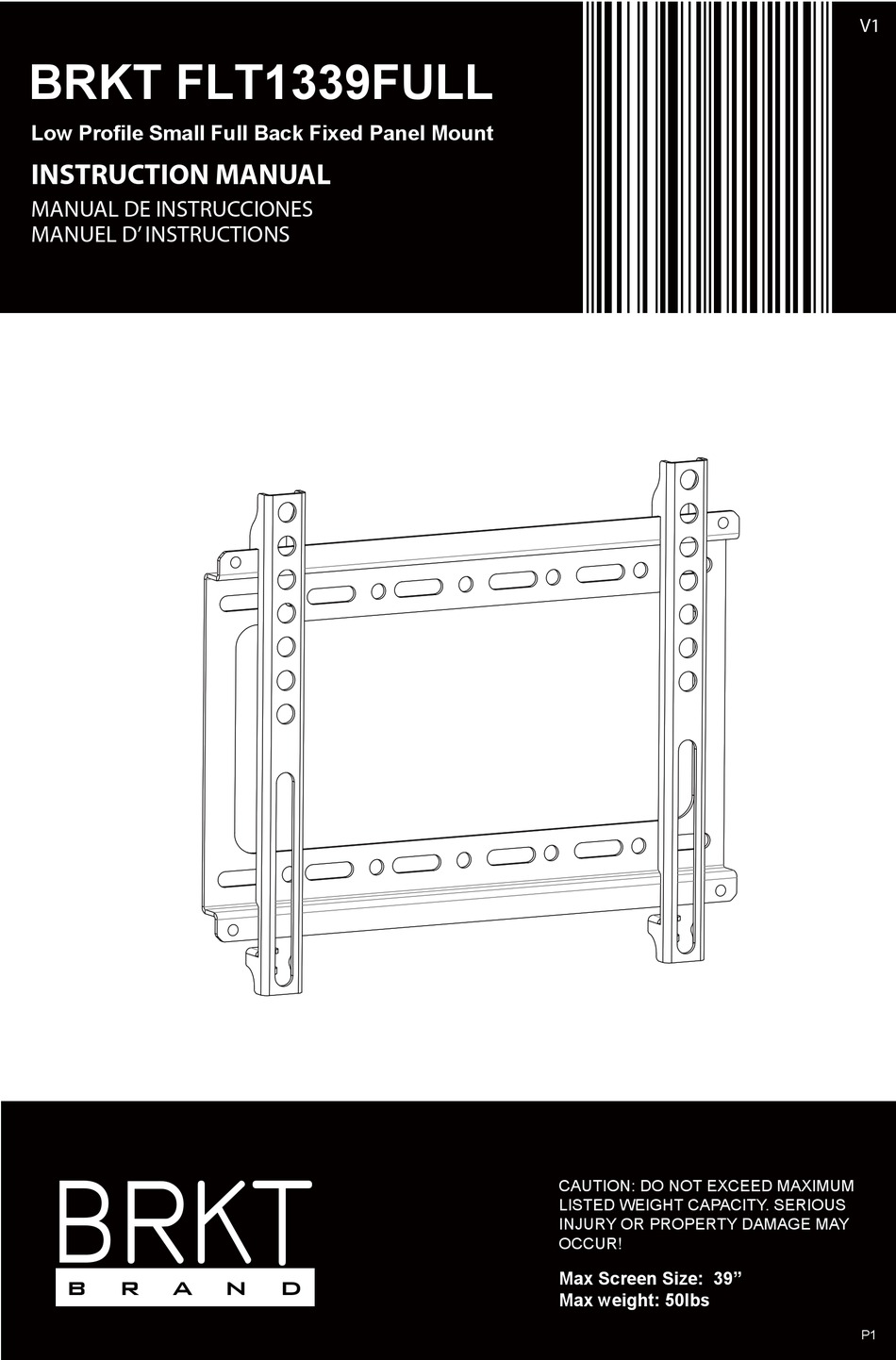

- Page 1 BRKT FLT1339FULL Low Profile Small Full Back Fixed Panel Mount INSTRUCTION MANUAL MANUAL DE INSTRUCCIONES MANUEL D’ INSTRUCTIONS CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR! Max Screen Size: 39” Max weight: 50lbs...
-
Page 2: Tools Needed
Tampoco prevé todas las posibles contingencias relacionadas con la instalación o el uso de este producto. La inf ormación que contiene este documento queda sujeta a cambio sin aviso previo o compromiso alguno. BRKT BRAND no ofrece ninguna garantía, ni expresa ni implícita, respecto de la información aquí incluida. BRKT BRAND no se responsabiliza de la precisión de la información provista en este documento, ni tampoco de que sea completa o suficiente. - Page 3 HARDWARE PRODUCT NUMBERS M4 x 12 M5 x 12 M6 x 15 M8 x 15 M4 x 25 M5 x 25 M6 x 25 M8 x 25 ROUND 6mm x 65mm NCHOR Allen Security STEEL WASHER SPACER WALL SCREW Screw WASHER X 10 PRODUCT COMPONENT PARTS...
- Page 4 STEP 1A - FLAT BACK FLAT PANEL (VERTICAL RAILS) Connect Vertical Rails to flat panel Conecte el adaptador al monitor Connectez l'adaptateur au moniteur STEP 1B- CURVED BACK FLAT PANEL (VERTICAL RAILS) Connect Universal Monitor Plate to flat panel Conecte el adaptador al monitor Connectez l'adaptateur au moniteur Spacers can also be used to provide clearance for cables...
- Page 5 STEP 1C- USE M8 STEEL WASHER IF THE PHILLIPS SCREWS FROM THE MONITOR KIT ARE TOO LONG Diagrams show three options for using additional washers if hardware screws are too long to properly tighten into back of flat panel television.
- Page 6 STEP 2- WOOD STUD INSTALLATION (CONCRETE INSTALLATION SKIP TO 3) Find stud and mark edge and center locations Ubique el panel y marque las ubicaciones de los bordes y el centro. Repérez l'emplacement d'une poutre, puis marquez l'emplacement des bords et du centre de cette poutre. LEVEL WALL PLATE DRILL BIT WITH INCLUDED...
- Page 7 STEP 3- SOLID CONCRETE INSTALLATION Solid Concrete Drill Bit Level Drill pilot hole Concreto sólido S. broca Nivelado Realice el agujero piloto Béton massif Foret Level Percez le trou de guidage DRILL BIT LEVEL WALL PLATE NOT INCLUDED WITH INCLUDED BUBBLE LEVEL AND MARK HOLES FOR DRILL BIT PILOT HOLE...
- Page 8 STEP 4 - ATTACH MOUNT ASSEMBLY TO WALL PLATE AND SECURE Flat Panel Monitor Plate Wall panel Heavy, Assistance Required TRES LOURD ! Cette etape requiert deux personnes !PESADO! Necesitara ayuda para realizar esta operacion STEP 4- SECURE MOUNT ASSEMBLY TO WALL PLATE Remove pre- Secure Allen Security Secure pre-installed...
- Page 9 Congratulations! Congratulations! Installation complete Installation Complete.
-
Page 10: Intentionally Blank
Pages 10, 11, & 12 are intentionally blank P 10... - Page 11 Pages 10, 11, & 12 are intentionally blank P 11...
- Page 12 Pages 10, 11, & 12 are intentionally blank...
