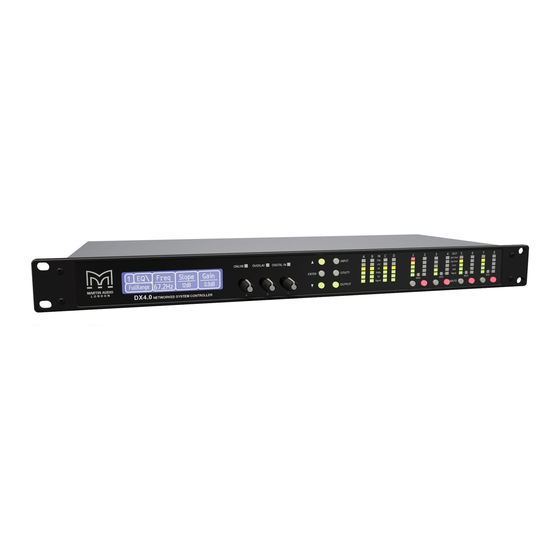

Martin Audio DX4.0 User Manual

Loudspeaker controller

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

V1.0

DX4.0

Loudspeaker Controller

User Guide

Table of Contents

Need help?

Do you have a question about the DX4.0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Martin Audio DX4.0

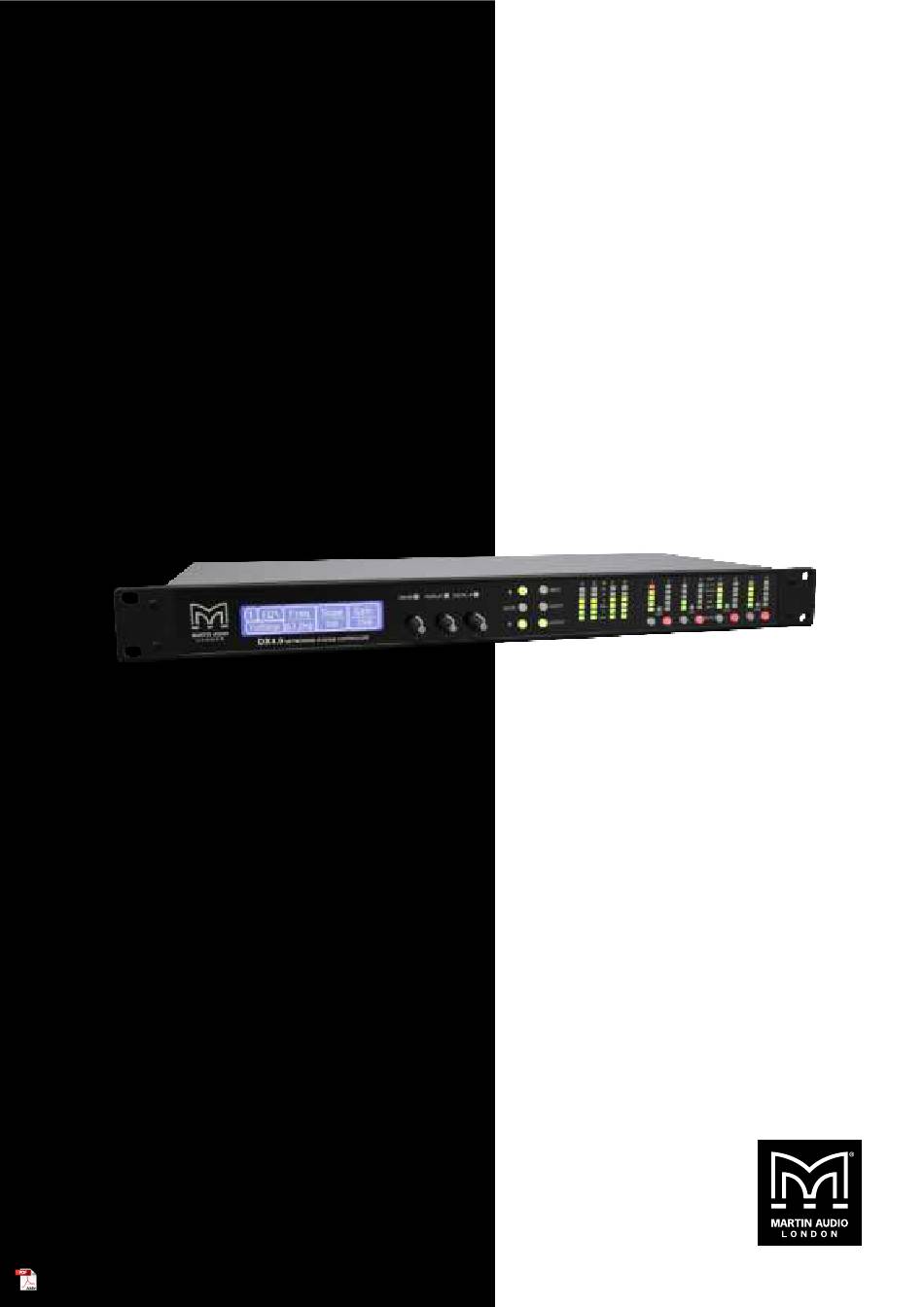

Page 1 V1.0 DX4.0 Loudspeaker Controller User Guide...
Page 2: Table Of Contents
Starting the Unit Overview of Modules, Presets Components and Snapshots Drive Modules Drive Module Presets Component Presets Navigation and Designing Crossovers Factory Module Presets Storing Module Presets Recalling Module Presets Recalling Components DX4.0 USER GUIDE V1.0 Copyright © 2020 Martin Audio Ltd.
Page 3 AES3 Utility Pages Screen Contrast Stereo Linking Current Ethernet IP Address IP Mode IP Static Store Snapshot Recall Snapshot Bandwidth Units AUX Style Ethernet DHCP AUTO-IP Static-IP IP Troubleshooting Snapshots DX4.0 USER GUIDE V1.0 Copyright © 2020 Martin Audio Ltd.
Page 4 Protocol Overview Addressing Commands Responses MethodNames Security Parameter Values Script Examples Tipi Methods for DX4.0 Processors VU-NET VU-NET Control Software Diagrams and Maps Processing Block Diagram Input Menu Map Output Menu Map Utility Menu Map EQ and Filter Response Graphs...
Page 5: About This User Guide
Introduction About this User Guide This user manual gives a detailed description of the functions of the Martin Audio DX4.0 series advanced loudspeaker processor. Unpacking the Units After unpacking the unit please check carefully for damage. If damage is found, please notify the carrier concerned at once. You, the consignee, must instigate any claim.
Page 6: Safety
Replace the mains fuse only with a fuse of the same type • The rear of the product may get hot. Avoid direct skin contact during operation and for at least 5 minutes after power has been isolated. DX4.0 USER GUIDE V1.0 Copyright © 2020 Martin Audio Ltd.
Page 7: Avertissement De Securite
Le radiateur arrière de cet appareil devient chaud. Evitez tout contact direct avec la peau pendant le fonctionnement et au moins 5 minutes après la mise hors tension de l’appareil. DX4.0 USER GUIDE V1.0 Copyright © 2020 Martin Audio Ltd.
Page 8: Compliance
We, Martin Audio Ltd. of Century Point, Halifax Road, High Wycombe, HP12 3SL England, declare under our sole responsibility that the DX4.0 product, comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 9: For Customers In Canada
Singapore standard SS145-1:2010. Warning THIS PRODUCT MUST BE EARTHED. Ensure that the earth terminal of the certified cord-set is connected to the protective earthing system of the installation. DX4.0 USER GUIDE V1.0 Copyright © 2020 Martin Audio Ltd.
Page 10: Product Overview
LIR Linear Phase Crossover Filtering The DX4.0 also includes a new type of crossover filtering Linear Impulse Response (LIR) crossover filtering, which results in a linear phase crossover that has a constant delay regardless of frequency (unlike other types of crossover which delay different frequencies to a different extent, thus smearing the arrival time).
Page 11 O-Line The DX4.0 allows control of an O-Line array which has been designed and optimised using DISPLAY 2.3. The d2p file created in DISPLAY can be uploaded to the DX4.0 when the unit is connected and controlled by VU-NET. The routing and all processing will be automatically allocated using the Preset Manager section of VU-NET.
Page 12: Installation
100mm (4”) of space around all sides of the product for ventilation. • Only use attachments and accessories approved by or specified by the manufacturer. DX4.0 USER GUIDE V1.0 Copyright © 2020 Martin Audio Ltd.
Page 13: Audio Connections
Pin 1 of the XLR connectors is internally connected to the chassis. The shield of the output cable should always be connected Pin 1 of the XLR to ensure that EMC performance and regulations are met. DX4.0 USER GUIDE V1.0 Copyright © 2020 Martin Audio Ltd.
Page 14: Using Unbalanced Connections
The cable shield is connected to pin 1 at the source (this device), and to ground at the destination device (along with the pin 3 ‘cold’ connection). Alternatively, if the cable is a single core plus shield, the cable shield should be terminated to both pins 1 and 3. DX4.0 USER GUIDE V1.0 Copyright © 2020 Martin Audio Ltd.
Page 15: Panel Layouts
Please note that because of the long release time of the thermal limiter, the <˚C> indicator may remain illuminated for several seconds after signal on that channel is reduced. DX4.0 USER GUIDE V1.0 Copyright © 2020 Martin Audio Ltd.
Page 16: Rear Panel
Rear Panel Power Inlet – The DX4.0 unit should be connected to a suitable mains electricity supply using an earthed IEC C14 connection power lead. The processor has a switch mode power supply with a nominal mains voltage of 85V to 240V, 50/60Hz without re-configuration.
Page 17: Operation
Drive Modules The DX4.0 uses Drive Modules to represent loudspeaker sub-systems. Drive Modules result in a less processor-centric and more speaker- orientated system design. A Drive Module is defined as the processing provided by one input DSP, and a number of outputs, which are associated with one another by means of routing.
Page 18: Component Presets
Module Preset. Note: DSP inputs are not the same as physical inputs. The DX4.0 has four audio inputs and four DSP inputs. This is a matrix mixing system where any physical inputs, be they analogue, AES3 or networked audio feeds, can drive any number of DSP inputs.
Page 19: Recalling Components
ModulePreset.Component name). When the desired component is reached, pressing <ENTER> will flash the Enter button. Pressing <ENTER> again will then recall the Component Preset. Note that Component Preset do not contain and do not disturb parameter Overlays. Also see Overlays and Snapshots. DX4.0 USER GUIDE V1.0 Copyright © 2020 Martin Audio Ltd.
Page 20: Aes3 / Dante® Inputs
AES3 / Dante® Inputs In addition to the usual analogue inputs, the DX4.0 can also accept AES3 digital inputs. The same physical XLR sockets are used for both analogue and AES3 inputs; the function of these being determined by the Type parameters in the Input Type menu. The input sockets 1 and 3 are used to input pairs of AES3 channels, so setting the input to "AES3"...
Page 21: Fir Shelving Eq
DSPs can be driven from any one input, or from pairs of inputs "1+2", "3+4", "1+3", "1+4", "2+3" or "2+4". Summed inputs have 6dB of attenuation so that a sum of largely similar programme material remains at the correct calibrated level. DX4.0 USER GUIDE V1.0 Copyright © 2020 Martin Audio Ltd.
Page 22: Output
AES3 & Dante® Outputs In addition to the usual analogue outputs, the DX4.0 also allows outputs to be sent digitally using either AES3 or Dante. The same physical XLR sockets are used for both analogue and AES3 outputs; the function of these being determined by the XLR parameters in the Output Route menu.
Page 23: Limiters
Limiters The DX4.0 includes three limiters in the output signal path. Please note that whilst the limiters in this product offer protection for amplifiers and drivers, they can never protect from all possible scenarios, therefore Martin Audio is not responsible for any damage which might occur.
Page 24: Amplifier Gain
Amplifier Gain Expressed in dB, this is the gain of the amplifier which the output of the DX4.0 is feeding. This value must be entered to allow the DX4.0 to correctly calibrate the thermal and excursion limiter for the amplifier in use.
Page 25: Utility Pages
WARNING – Do NOT use "Static" mode unless your IT system specifically requires it. "Auto" mode should always be used where possible since in this mode, the DX4.0 can always be ‘discovered’ by the VU-NET software. When in "Static" mode, the IP Address will flash on the Home screen.
Page 26: Dhcp
Snapshots A Snapshot may be recalled either via the device User Interface, from the VU-NET application or via the AUX port on the rear of the DX4.0. The Snapshot menu is accessed via the utility pages. Recalling a Snapshot triggers the recalling of a Component to each input and output, and may change other device-wide settings, effectively recalling a processor-wide preset.
Page 27: Latency Delay
(latency) to the signal path. Of course, we strive to minimise these latencies. Small as they are, it is sometimes useful to know their precise values. The following describes the principal latencies introduced by various parts of the DX4.0 product:...
Page 28: Secure Mode
Otherwise, press the "Down" button to escape. Alternatively, you can access this feature from VU- NET application using the by right clicking on the DX4.0 icon in the System Diagram and selecting "Reset to defaults".
Page 29: Tipi Control
DX4.0 USER GUIDE Tipi Control Protocol Overview Tipi is a simple but powerful ASCII text based protocol for controlling and monitoring DX4.0 processors from any number of third party control panels or software applications over Ethernet (TCP/IP). Physical Layer Tipi would typically be transported using an Ethernet Interface (10/100/1G) using the TCP/IP protocol, port 51456.
Page 30: Commands
For each type of device, a list of compatible MethodNames is published. Please refer to the documentation for the specific device. Security Not all the published MethodNames will be accessible; some of these might have been ‘locked’ by the vendor. DX4.0 USER GUIDE V1.0 Copyright © 2020 Martin Audio Ltd.
Page 31: Parameter Values
Script Examples $SET Snapshot 5<CR> – Recall Snapshot 5 $SET Out1/Mute yes<CR> – Mute channel 1 $SET InA/Gain -3.2dB<CR> – Set the gain of input A to -3.2dB Tipi Methods for DX4.0 Processors Parameter MethodName Channels Minimum Value Maximum Value...
Page 32: Vu-Net
VU-NET Control Software The DX4.0 features an Ethernet connection to allow them to be networked for control and monitoring of the system they are driving. This is achieved using a PC on the same Ethernet network running Martin Audio's VU-NET software. VU-NET allows comprehensive control of...
Page 33 Delay VU-NET is available as a free download from the Martin Audio website. For full details of VU-NET operation please also download the VU- NET user guide, which shows VU-NET operation for the DX4.0 and all VU-NET enabled Martin Audio products.
Page 41: Technical Specifications
3-Pin Phoenix Connector MAINS 3 pin IEC Environmental TEMPERATURE 0 to +45°C HUMIDITY 0 to 80% RH (non-condensing) Physical DIMENSIONS (W) 482mm x (H) 1U/44mm x (D) 254mm WEIGHT 2.7kg (6lbs) DX4.0 USER GUIDE V1.0 Copyright © 2020 Martin Audio Ltd.
Page 42: Technical Drawings
DX4.0 NETWORKED SYSTEM CONTROLLER ETHERNET PORT PRIMARY SECONDARY THIS UNIT MUST BE EARTHED 100-230V 30W 50-60Hz AES3 7&8 AES3 5&6 AES3 3&4 AES3 1&2 AES3 C&D AES3 A&B OUTPUTS INPUTS DX4.0 USER GUIDE V1.0 Copyright © 2020 Martin Audio Ltd.
Page 43: Warranty
2 years from the date of original purchase. During the warranty period Martin Audio will, at its discretion, either repair or replace products which prove to be defective provided that the product is returned in its original packaging, shipping prepaid, to an authorised Martin Audio service agent or distributor.
Page 44 All information is Copyright © 2021 Martin Audio Ltd. Dante® is a registered trademark of Audinate Pty Ltd. Martin Audio, the Martin Audio logo and Hybrid are registered trademarks of Martin Audio Ltd. in the United Kingdom, United States and other countries; all other Martin Audio trademarks are the property of Martin Audio Ltd.
