ROCWARE RC03 Quick Start

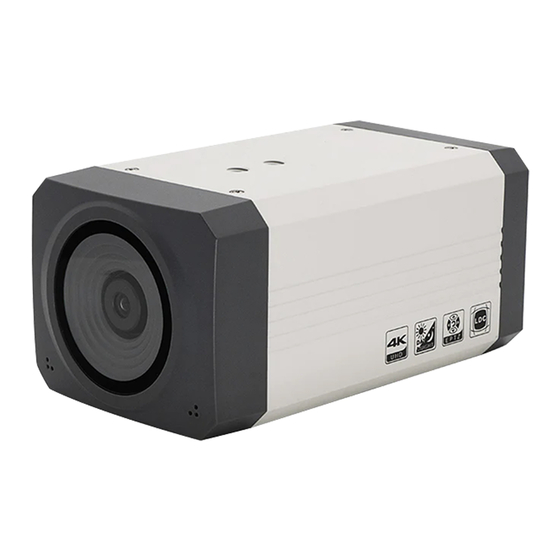

HD Color Box Camera
Quick Start
1

Appearance and Interface

2

Packing List

3

Safety Precautions

Electrical Safety
The installation and use of this product must strictly comply with local
electrical safety standards.
Transport Carefully
Prevent heavy damage, severe vibration or damage caused by immersion.
Power Polarity
This product uses DC+12V power, please
pay attention to the power polarity.
Careful Installation
This product should be placed on the smooth desktop. Do not tilt mounting
the product. Do not use strong force to damage the camera.
Do not unauthorized disassemble
This product has no parts which can be repaired by the user. The damage
caused by the user's own disassembly is not covered by warranty.
Electromagnetic fields at specific frequencies may affect the image of

the machine.
Do not hot-plug the power supply during the use of the IP Camera.

4

Product Features

HD EPTZ
Configure 4K Sensor and 4K lens to achieve high-definition electronic
pan-tilt effect.
Intelligent Teaching Tracking
Built-in leading image recognition and tracking algorithm, you can achieve
smooth and natural tracking without any auxiliary positioning camera or
tracking host. Support teacher tracking mode and student tracking mode.
No. Name
1 DC 12V Interface
2 Power Indicator
3 RS485 Interface
4 Menu Button
AF Lens
The 42° lens of the teacher camera supports auto focus, the horizontal
angle of the student camera can reach 95°, the small lens, the big vision.
At the same time, EPTZ is supported, and the brake is not moved, and it is
enlarged and seen more clearly.
Low Light
The application of 2D and 3D noise reduction algorithm greatly reduces the
image noise. Even under the condition of ultra-low illumination, it still keeps
the picture clean and clear, and the SNR of image is as high as 55dB.
Dual Interface Output
Support SDI interface, effective transmission distance up to 150 meters
(1080P25). SDI and network can output at the same time.
POC & POE
Support POC (Power Over Cable) and POE (Power Over Ethernet)
one-wire function, power, video, audio, control three-wire in one.
Interleaving Mode
It can realize a single camera single SDI interface to simultaneously output
panoramic and close-up signals.
5

Product Specifications

Name HD Color Box Camera
Camera
Sensor 1/2.8'', CMOS, Effective Pixel: 8.46M
Scanning Mode Progressive
Lens Mount M12
Lens 1 (teacher) Focus: f=7.2mm, FOV: 42°
Lens 2 (student) Focus: f=2.8mm, FOV: 95°
Auto Focus Teacher Camera Support
Minimal
0.5 Lux @ (F1.8, AGC ON)
Illumination
Shutter 1/30s ~ 1/10000s
White Balance Auto, Indoor, Outdoor, One Push, Manual, VAR
No. Name
5 SDI Interface
6 LINE IN Interface
7 USB 2.0 Interface
8 Network Interface
