Universal dimming actuator, 1-gang, 2-gang, 4-gang
Universal dimming actuator, 1-gang
Art. no.: 3901 REGHE
Universal dimming actuator, 2-gang
Art. no.: 3902 REGHE
Universal dimming actuator, 4-gang
Art. no.: 3904 REGHE
Operating instructions
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the device or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage. The load
is not electrically isolated from the mains even when the output is switched off.
Risk of destruction of the dimmer and load if the set operating mode and load type do not
match. Set the correct dimming principle before connecting or exchanging the load.
Fire hazard. For operation with inductive transformers, each transformer must be fused on the
primary side in accordance with the manufacturer's instructions. Only safety transformers ac-
cording to EN 61558-2-6 may be used.
These instructions are an integral part of the product, and must remain with the end customer.
The connected load and dimmer quality on LED lamps are dependent on the type of lamp
and installation conditions. The connected load of the specified values could vary. We
cannot assume any guarantee for proper function, dimming results and dimming quality.
2
Device components
82575363
J0082575363

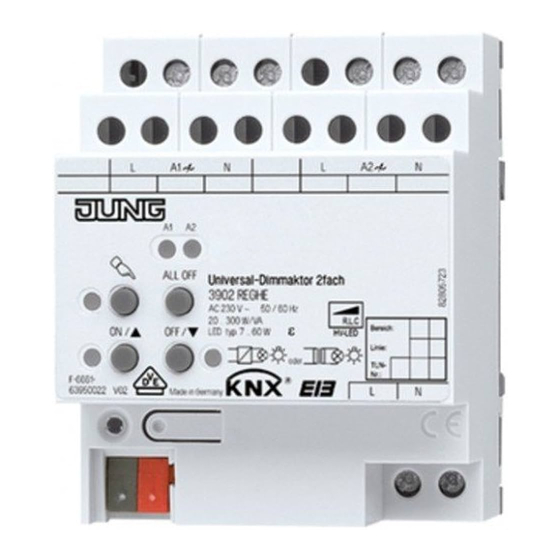

Figure 1: View of dimming actuator 2-gang
1 / 16
04.12.2019
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Jung 3901 REGHE
- Page 1 Universal dimming actuator, 1-gang, 2-gang, 4-gang Universal dimming actuator, 1-gang Art. no.: 3901 REGHE Universal dimming actuator, 2-gang Art. no.: 3902 REGHE Universal dimming actuator, 4-gang Art. no.: 3904 REGHE Operating instructions Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons.
- Page 2 Universal dimming actuator, 1-gang, 2-gang, 4-gang Figure 2: View of dimming actuator 4-gang Button field for manual operation Programming button and LEDs KNX connection Mains connection (optional, if operation should be possible without bus voltage) Status LED Terminal outputs Function System information This device is a product of the KNX system and complies with the KNX directives.
-
Page 3: Operation
Universal dimming actuator, 1-gang, 2-gang, 4-gang Product characteristics – Automatic or manual selection of the dimming principle suitable for the load – Protected against no-load, short-circuit and overheating – Signal in the event of a short-circuit – Outputs can be operated manually –... - Page 4 Universal dimming actuator, 1-gang, 2-gang, 4-gang Status indication The status LED A1… (5) indicate the states of the outputs. – Off: Output switched off – On: Output switched on – Flashes slowly: Output in manual mode – Flashes quickly: Output disabled via continuous manual mode Operating modes –...
- Page 5 Universal dimming actuator, 1-gang, 2-gang, 4-gang ￭ Operate the output with the button ON/n or the button OFF/o. Short: switch on/off. Long: dim brighter/darker. Release: Stop dimming. The LEDs ON/n and OFF/o indicate the status. Short-term manual operation: After running through all of the outputs the device exits manual mode after another brief press.
- Page 6 Universal dimming actuator, 1-gang, 2-gang, 4-gang Connecting lamp load Figure 4: Dimming actuator – Connection example Do not exceed permissible total load including transformer power dissipation. Operate inductive transformers with at least 85% nominal load. Mixed loads with inductive transformers: ohmic load max. 50%. HV-LED lamps and compact fluorescent lamps: Only connect lamps of one manufacturer and of the same type on the same output.
- Page 7 Universal dimming actuator, 1-gang, 2-gang, 4-gang Choose power boosters that are suitable for the dimmer and load. Program the operation with Universal power extensions in the device or – with devices up to version V01 – set the maximum brightness to 90 %. For more information please see instructions of the re- spective power pack.
- Page 8 Universal dimming actuator, 1-gang, 2-gang, 4-gang CAUTION! Danger of destruction. 400 V are shorted when outputs switched in parallel are con- nected to different outer phase conductors. The device will be destroyed. Always connect outputs switched in parallel to the same outer phase conductor. ￭...
- Page 9 Universal dimming actuator, 1-gang, 2-gang, 4-gang Figure 7: Installing the cover ￭ Route the bus line towards the rear. ￭ Install cover on top of the bus terminal so that it snaps into place (Figure 7). Removing the cover Figure 8: Removing the cover ￭...
- Page 10 Adapt and load the resting time into the device if neces- sary. The technical documentation contains detailed information on this. Appendix 6.1 Technical data Universal dimming actuator, 1-gang, art. no. 3901 REGHE Rated voltage AC 110 ... 230 V ~ Mains frequency 50 / 60 Hz Power loss max.
- Page 11 Universal dimming actuator, 1-gang, 2-gang, 4-gang Electronic transformers with LV-LED 20 ... 100 W Inductive capacitive mixed load is not permitted. With setting "LED trailing edge phase control" the connection power for HV-LED lamps and electronic transformers with LV-LED doubles. Power consumption 110 V per output Incandescent lamps 20 ...
- Page 12 Universal dimming actuator, 1-gang, 2-gang, 4-gang Electronic transformers with LV-LED 20 ... 100 W Inductive capacitive mixed load is not permitted. With setting "LED trailing edge phase control" the connection power for HV-LED lamps and electronic transformers with LV-LED doubles. Total power consumption at 230 V max.
-
Page 13: Troubleshooting
Universal dimming actuator, 1-gang, 2-gang, 4-gang Power consumption 230 V per output Incandescent lamps 20 ... 250 W HV halogen lamps 20 ... 250 W HV-LED lamps typ. 3 ... 50 W Compact fl lamp. typ. 3 ... 50 W Inductive transformers 20 ... - Page 14 Universal dimming actuator, 1-gang, 2-gang, 4-gang Check manufacturer's instructions. Exchange lamps for another type. Cause 2: Dimming principle and lamps do not optimally match. For HV-LED: Check operation in another dimming principle, reduce connected load as well if necessary. For LV-LED: Check the lamp operating device and replace as necessary. With the "Universal"...
- Page 15 Universal dimming actuator, 1-gang, 2-gang, 4-gang Enable manual control. Output cannot be operated. Cause 1: Manual control has not been programmed. Reprogram device. Cause 2: Manual control via bus disabled. Enable manual control. None of the outputs can be operated. Cause 1: All of the outputs are disabled- Cancel disabling.
-
Page 16: Warranty
2050 K Compensation module LED KMLED230U 6.4 Warranty The warranty is provided in accordance with statutory requirements via the specialist trade. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de...
