Packing List
In addition to this guide, the package includes the following items:
Technical Support
service@icpdas.com
www.icpdas.com
For Desktop Web

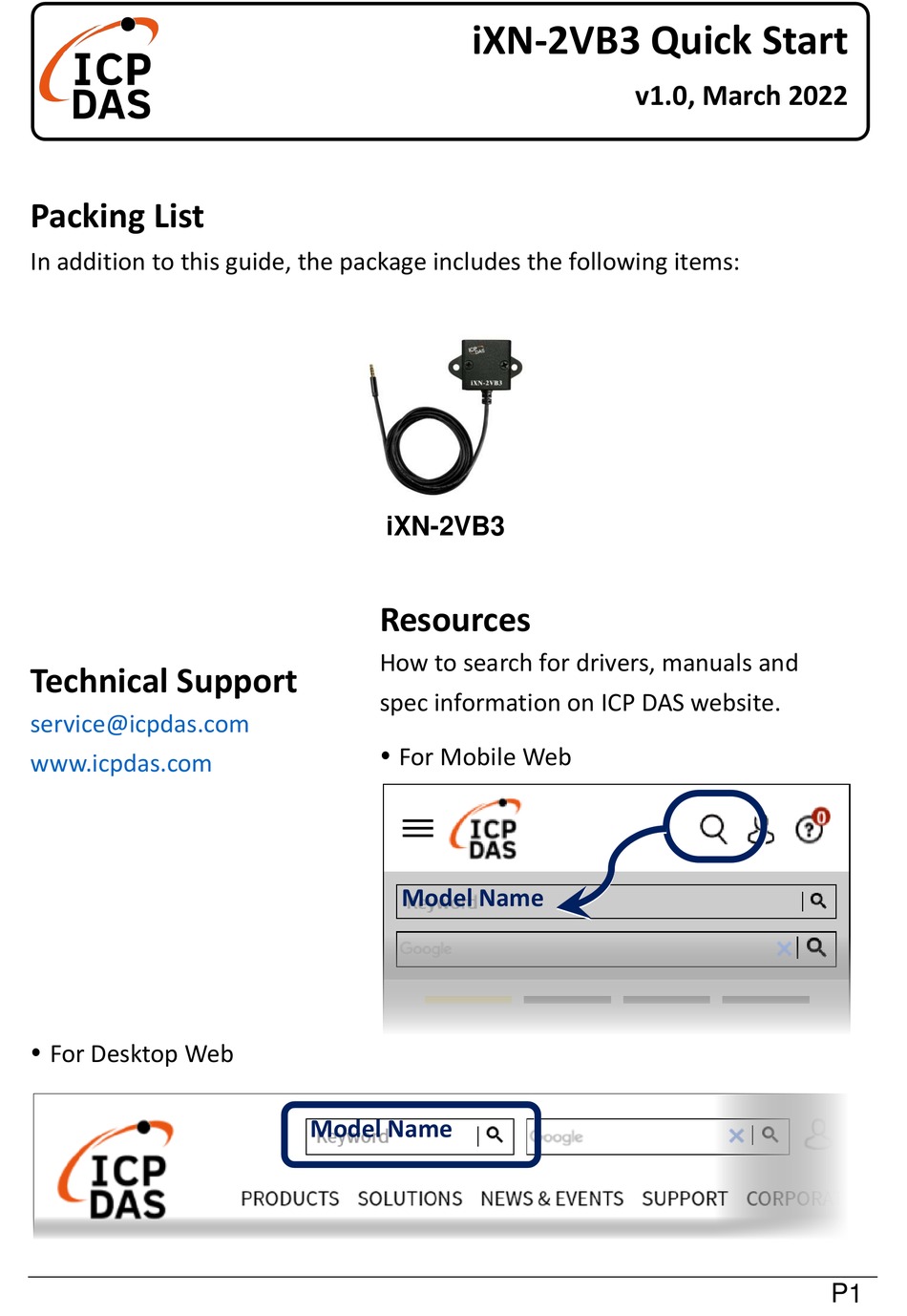

iXN-2VB3 Quick Start
iXN-2VB3
Resources
How to search for drivers, manuals and
spec information on ICP DAS website.
For Mobile Web
Model Name
Model Name
v1.0, March 2022
P1
Advertisement
Related Manuals for ICP DAS USA iXN-2VB3
Summary of Contents for ICP DAS USA iXN-2VB3
- Page 1 Quick Start v1.0, March 2022 Packing List In addition to this guide, the package includes the following items: iXN-2VB3 Resources How to search for drivers, manuals and Technical Support spec information on ICP DAS website. service@icpdas.com For Mobile Web www.icpdas.com...
- Page 2 Modbus Address Mapping Table The range of address The range of address The range of address mapping mapping iWSN sensor Node ID mapping (Hexadecimal) (Decimal，Base 0) (Decimal，Base 1) 40322~40365 0x0141~0x016C 321~364 30322~30365 40578~40621 0x0241~0x026C 577~620 30578~30621 … … … … 47746~47789 0x1E41~0x1E6C 7745~7788...
- Page 3 Mean value: Z 30259 (0x0102) 4. iXN-2VB3 is fixed at the location to be measured and kept flat and still. 5. Make the zero-initialization setting. (Set F1 pin to ON / F2 pin to OFF, then turn on the transmitter power)
- Page 4 ON： Power on 6. After successfully reading the first iWSN-200x register value, press and hold the Wake button for more than 1 second to reset to zero. Item Name Instructions Wake (zero-initialization setting) 7. Read the iWSN-200x register and confirm that the value is close to zero.
