Summary of Contents for Bihui CG1900

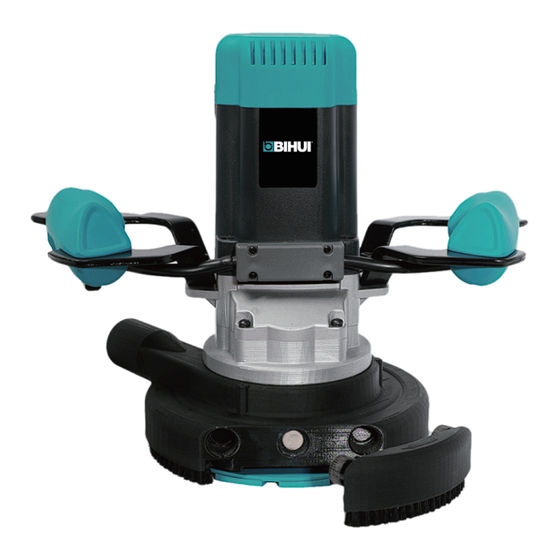

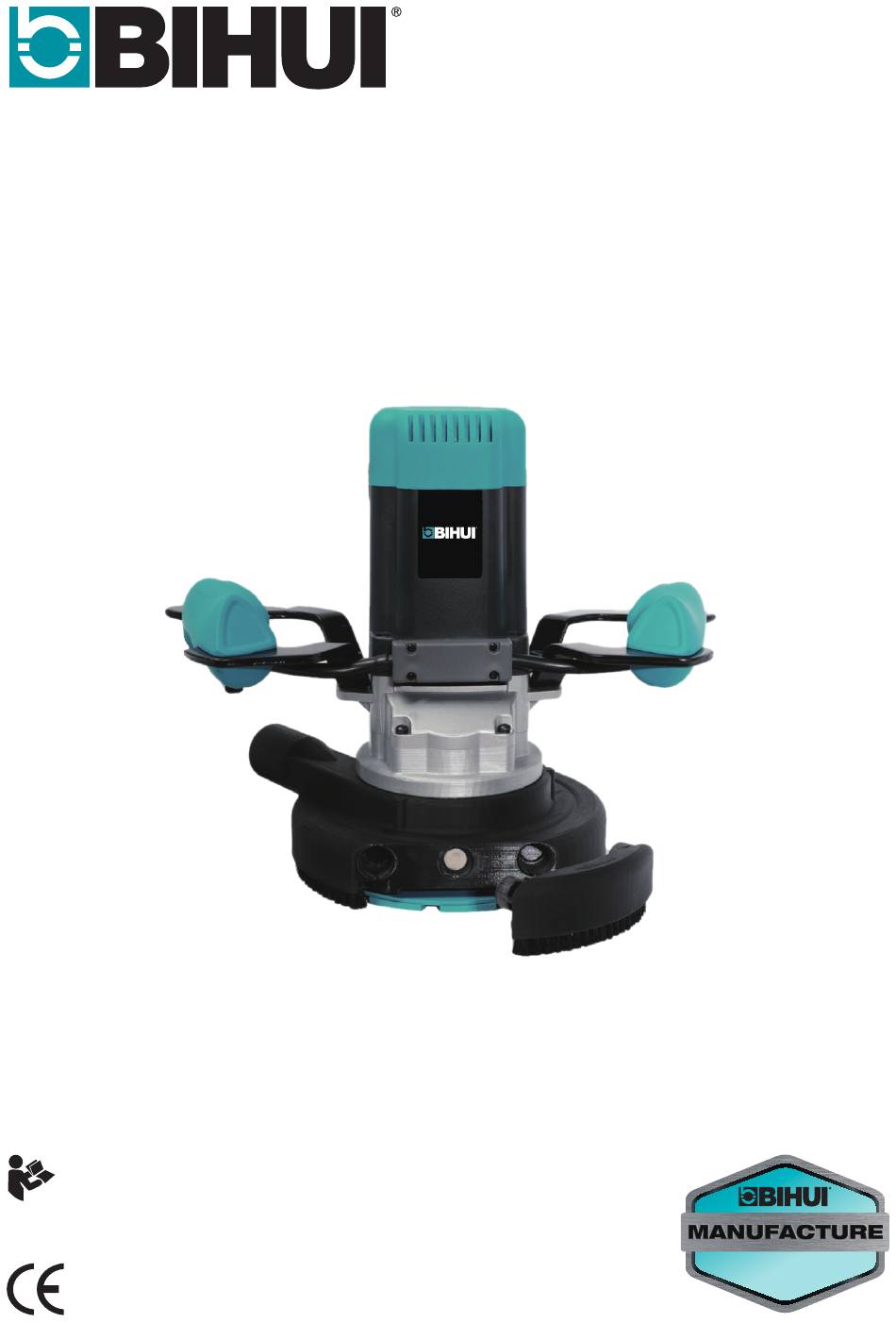

- Page 1 CG1900 Usage Instructions Concrete Grinder 1900W Read before use W A R R A N T Y...
-
Page 2: Usage Instructions
English Usage Instructions www.bihuitools.com... -
Page 3: Spare Part List
English Usage Instructions Spare Part List Left handle Output shaft Right handle Woodruff key 4x5x12 Screw F3.9X16 Bearing cover Clamp Bearing 6204ZZ Screw F3.9X12 Retainer ring for hole φ47 Capacitance Retainer ring for shaft Round inductance Motor gear The inductance Retainer ring for shaft φ15 Sleeve Bearing 608ZZ... -
Page 4: Safety Warnings
Please allow a 15-minute coling period when the device's overload relay cuts operation to prevent overheating 2. Specification Suitable for use on concrete, etching, tile adhesive, natural stone, plaster, paint, coating and adhesive carpet. Model CG1900 Measurement 384mm×227mm×307mm Net Weight 6.6Kg... -
Page 5: Using Instructions
English Usage Instructions 3. Using Instructions 3.1 Connect an external suction pipe to the internal dust outlet, secure they are completely connected. External suction pipe Internal dust outlet 3.2 Hold the handles by both hands and put your concrete grinder on working face with a slight downward pressure through handles. Then press the motor power button and self-locking button to start the machine (do not loose your hands). - Page 6 English Usage Instructions Press motor power button Press self-locking button Adjust speed control knob 3.3 Take the front anti-dust cover board apart from the anti-dust cover towards the direction showing by an arrow, in order to expose the diamond cup wheel for corner grinding demand. And then repeat Step 2, it gets ready to work as soon as it becomes stable Recessed magnet www.bihuitools.com...
- Page 7 English Usage Instructions Edge & Corner operating sketch 3.4 Once you need stop working, please loose your hands and let the machine stay where it is for 30 seconds. Then Press the motor power button after the dust inside of the anti-dust cover has been well collected and cleaned. Let the machine stay where it is for 30 seconds, and then press motor power button www.bihuitools.com...
- Page 8 English Usage Instructions 3.5 For replacing the cup wheel, you should first take the old cup wheel down by following steps, (3.5.1) Put both ends of the Y type wrench into holes around the edge of the diamond pad. (3.5.2) Fasten the Hexagonal wrench to the lock screw. (3.5.3) Rotate these both wrenches towards opposite directions.
-
Page 9: Cleaning And Maintenance
English Usage Instructions 4. Cleaning and Maintenance - Maintain your grinder with care. Clean the grinder immediately after use. Keep the grinder clean for best and safest performance. When maintaining this grinder,only the manufacturer’s original replacement parts may be used. - Store idle equipment. - Page 10 www.bihuitools.com...
