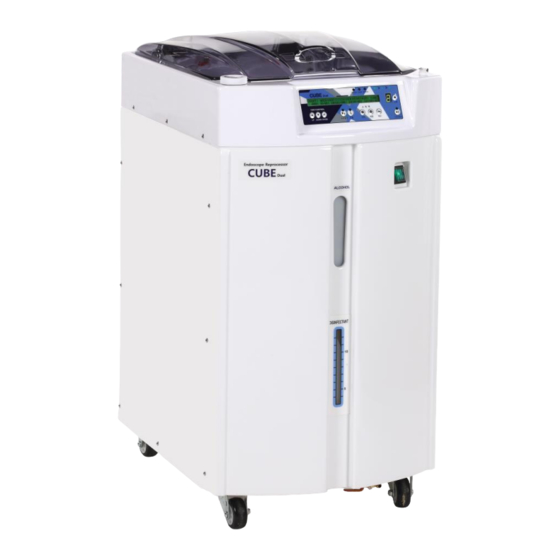

Asap CUBE Dual Manual

Endoscope reprecessor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ENDOSCOPE REPRECESSOR
CUBE Dual Manual
ASAP Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CUBE Dual and is the answer not in the manual?

Questions and answers

Summary of Contents for Asap CUBE Dual

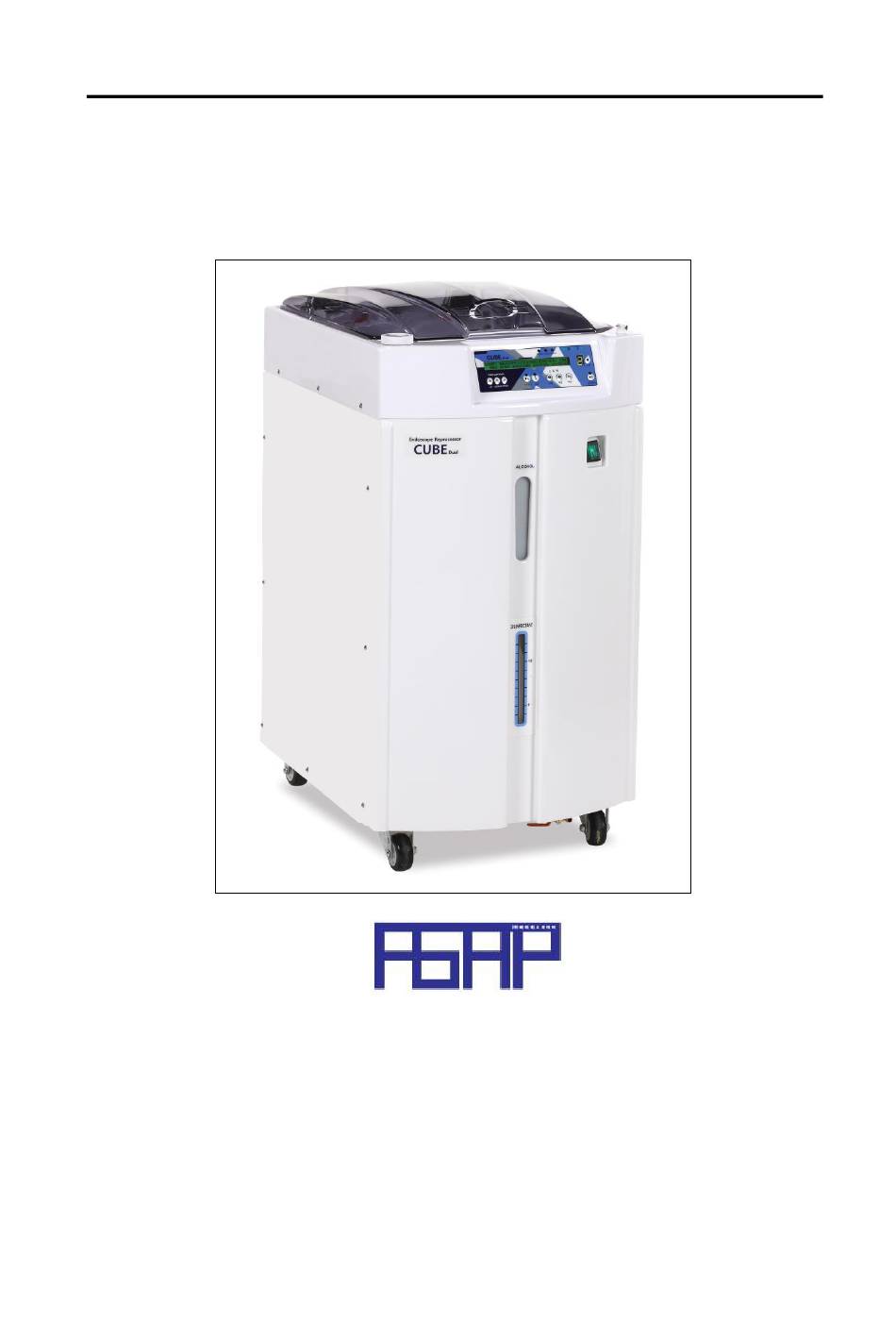

  • Page 1 ENDOSCOPE REPRECESSOR CUBE Dual Manual ASAP Co., Ltd.

  • Page 2: Table Of Contents

    Table of Contents 1. Product Specification ···················································································· 2. Precautions ······································································································· 3. Name & Description of Each Unit ································································· 4. Using Method 1) Preparation Items Before Use ·················································· 2) Using Method & Operation Sequence ········································· 3) Method of Storage & Management After Use ·························...

  • Page 3: Product Specification

    1. Product Specification Classification Contents Remarks ·Exterior Surface: Cleaning by rotational spray of washing water ·Channel Interior: Cleaning using washing Cleaning & Rinsing Method water ·Buttons: Cleaning by rotational spray of washing water ·Exterior Surface: Soaking in disinfection solution Disinfection ·Channel Interior: Soaking in &...

  • Page 4: Precautions

    Leakage Inspection 0.3 bar Pressure Recommend using of the approved disinfection solution from the Ministry of Disinfection Food & Drug Safety (The disinfection time Solution is based on the use criteria of the disinfection solution manufacturer) Alcohol Tank 2ℓ Capacity Disinfection Tank 19ℓ...

  • Page 5: Name & Description Of Each Unit

    ※ : Do not touch the product arbitrarily. CAUTION 7. Be careful of the following after using the product: 1) Turn off the power switch. 2) The water supply valve must be closed. When reusing a product that has not been used for a long time, use it after checking if the product is operating properly before use 3.
  • Page 6 ⑤ Operation Unit Control the operation of product ⑥ Power Switch Switch to turn on and off the product’s power Disinfection Solution Drain manually the disinfection solution by opening the ⑦ Manual Water Drain valve Outlet 2. Cleaning Tank Name Description Cleaning Tank Water Level Sensor to detect the level of water or disinfection solution...
  • Page 7 Cleaning Tank Water Drain Drain of water or disinfection solution from cleaning Tank ⑦ Outlet (Including Filter) (filter to filter out foreign substances) Leakage Connection Connect water leakage inspection plug in case of water ⑧ Connector leakage inspection 3. Operation Unit Name Function Display the current status of product...
  • Page 8 Program Mode Selection Button ④ Selection Button (1~4:Automatic Mode, 5~9:Manual Mode) ⑤ Selection Display Unit Display the program mode selected at ④ UP Button TIME CONTROL Sequence 1) Move to desired process by pressing UP Button or DOWN Button, and TIME DOWN ⑥...

  • Page 9: Using Method

    Name Description Short Circuit Safety device shutting off power automatically in case of ① Breaker occurring leakage current or excessive current Connect the power cord to supply the power ② Power Socket (Protect from excessive current due to built-in fuse) ③...

  • Page 10: Using Method & Operation Sequence

    ③ Connect the power plug to the AC 220V (60Hz) single-phase ground outlet. 4) Be sure to read the manual before using the product, then use it after learning how to use. 5) In case of using alcohol, supply an appropriate amount of alcohol into the inlet of alcohol.
  • Page 11 Disinfection Cleaning Rinsing Process Process Process Air Process (Supply air into endoscope channel) < Process Description > (2) Press the Enter button. (3) If the cursor blinks, press UP or DOWN button to set the desired time. ① The cleaning process, rinsing process time can be set in unit of 1 second from 0 second to 5 minutes ②...
  • Page 12 < Olympus Endoscopic Channel Connection Example > 6) Press the selection button to select the desired program mode. <<Program Mode>> <No.1 to 4 Mode: Automatic Mode> No.1 Mode (=A-Auto Mode): Cleaning-Air-Disinfection-Air-Deposition Cleaning (Drain + Air)- Alcohol (Supply if selected)-Air No.2 Mode (=B-Auto Mode): Cleaning-Air-Disinfection-Air-Rinsing-Alcohol (Supply if selected)-Air No.3 Mode (=Simple Cleaning Mode): Disinfection-Air-Deposition Cleaning (Drain + Air)-Alcohol (Supply if selected)-Air...

  • Page 13: Method Of Storage & Management After Use

    (1) Disinfection Solution Drain ① Press the disinfection solution drain button. ② Press the Start button. (2) Disinfection Solution Supply ① Press disinfection solution supply button. ② Press the Start button. 3. Method of Storage & Management After Use 1) Management Method (1) Turn off after use.

  • Page 14: Marking

    • Dimension: 480㎜(W)×620㎜(D)×960㎜(H) • Weight: 43[㎏] 1. Product Name: Soft Endoscope Reprocessor Type: CUBE Dual 2. Company Name of Manufacturer: ASAP Co., Ltd. Address: Room No. 302, 37, Cheonho-daero 221-gil, Gangdong-gu, Seoul, Republic of Korea 3. Manufacturing License: No. 4001 Product Authorization: No.

  • Page 15: Product Warranty

    P r o d u c t W a r r a n t y Product Name Soft Endoscope Reprocessor Model Name CUBE Dual Warranty 1 Year Manufacturing No Period Purchasing Product 15-4039 호 (D/M/Y) Date Authorization No Customer Purchasing Place...
  • Page 16 ENDOSCOPE REPROCESSOR [CUBE LITE Manual] Using Method...
  • Page 17 1. Preparation Items Before Use 1) Check if there is any damage to the product in case of warehousing. 2) Installation Location ① Install in a well-ventilated place that there is no moisture and exposure to direct sunlight ② Install away from heat generating objects. ③...
  • Page 18 ① The purpose of the scope leak test It has a purpose to protect endoscopy by detecting damage of endoscopy in advance. I f air bubbles appear continuously during endoscopy, do not proceed cleaning and disinfection, and Immediately stop using it and contact an expert technician to take an appropriate measure.
  • Page 19 < Olympus Endoscopic Channel Connection Example > 5) Set the process (cleaning, disinfection, air, rinsing) time in the operation Unit. (1) Press UP or DOWN button at the time control of the operation unit to move the cursor to the desired process (WASH, AIR, DISIN, RINS). Cleaning Disinfection Rinsing...
  • Page 20 < No.1 to 4 Mode: Automatic Mode> No.1 Mode (=A-Auto Mode): Cleaning-Air-Disinfection-Air-Deposition Cleaning (Drain + Air)-Alcohol (Supply if selected)-Air No.2 Mode (=B-Auto Mode): Cleaning-Air-Disinfection-Air-Rinsing-Alcohol (Supply if selected)-Air No.3 Mode (=Simple Cleaning Mode): Disinfection-Air-Deposition Cleaning (Drain + Air)-Alcohol (Supply if selected)- No.4 Mode (=Ultra Simple Cleaning Mode): Disinfection-Air-Rinsing-Alcohol (If selected)-Air * In Automatic Mode, press the alcohol selection button of operation unit to...
  • Page 21 ② Close the water supply valve. ③ Unplug the power cord. ④ Dry the moisture in case of water leakage. ⑤ Mark appropriately on the outside of product for other users and technicians can see it. ⑥ Contact an expert engineer and take the measure. ※...
  • Page 22 Endoscope Reprocessor SOO Dual Manual ASAP Co., Ltd.
  • Page 23 Table of Contents 1. Characteristic ························································································ 2. Specification ··························································································· 3. Precautions ····························································································· 4. Name & Description of Each Unit ··························································· 5. Using Method 1) Preparation Items Before Use ······················································ 2) Using Sequence ·················································································· 3) Time Setting Method ········································································ 4) Program Mode Description ·······························································...

  • Page 24: Characteristic

    1. Characteristic This product is a medical soft endoscope for cleaning and disinfecting the surface and channel of the endoscope using ultrasonic, water, air, and disinfection solutions. It focused on increasing the cleaning and disinfection effect through ultrasonic cleaning, and the program is possible to be operated easily by anyone as checking according to sequence, and the voice messages was added with a voice notification function to prevent in advance, such as problems in use.
  • Page 25 Classification Contents Remarks · Exterior Surface: Cleaning by rotational spray of washing water & by ultrasonic ·Channel Interior: Cleaning using washing Cleaning & Rinsing Method water ·Buttons: Cleaning by rotational spray of washing water & by ultrasonic ·Exterior Surface: Soaking in & spay disinfection solution ·Channel Interior: Soaking in &...

  • Page 26: Precautions

    Outlet Leakage Inspection 0.3bar Pressure Water Supply · Flow Rate: At least 5ℓ/min or higher Requirement · Pressure: 1 to 5bar Product Exterior 450mm×620mm×970mm (W×D×H) Dimension Product Weight 52㎏ Power 220V / 60㎐, 1.24KVA 3. Precautions 1. Do not Use the product except a skilled person. 2.

  • Page 27: Name & Description Of Each Unit

    8. When reusing a product that has not been used for a long time, use it after checking if the product is operating properly before use. 4. Name & Function Description of Each Unit 1. Front Side Name Description ① Cleaning Tank Cover Cover that can be opened and closed during cleaning ②...
  • Page 28 Name Description Cleaning Tank Water Sensor to detect the level of water or disinfection solution ① Level Sensor within cleaning tank Emergency Water Drain Prevent water overflowing outside due to excessive water ② Inlet within the cleaning tank ③ Water Supply Pipe Supply water to the cleaning tank Cleaning the endoscopic surface by water spray from four ④...
  • Page 29 Name Function ① LCD DISPLAY UNIT Display the current status of product Move to desired function (move to lower number than the ② UP Button present) Move to desired function (move to higher number than the ③ DOWN Button present)) ④...
  • Page 30 LCD DISPLAY ② Cleaning Tank: Display when water ① Water Supply: Display when water is and disinfection solution in the cleaning supplied into the cleaning tank tank are empty ③ Ultrasonic Vibrator: Mark of an ④ Drain Outlet: Display of drain in case of ultrasonic vibrator, and displays its draining operation...
  • Page 31 ⑫ Temperature: Display temperature within the disinfection tank numerically ⑬ Program Mode: Display the program mode from 1 to 11 4. Rear Side Name Description ① Hinge Hinge that opens and closes the cover Supply electricity to the product by connecting to an ②...

  • Page 32: Using Method

    5. Using Method 1. Preparation Items Before Use 1) In case of warehousing, check whether the product is damaged, and all components are existed. 2) Installation Location ① Install in a well-ventilated place that there is no moisture and exposure to direct sunlight. ②...
  • Page 33 on page 13) (4) Perform the water leak test of endoscope. (A) The purpose of the scope leak test is to protect the endoscope by checking the damage of the endoscope. (B) Scope Leak Test ① Endoscopy must be fastened with a water-resistant cap. (If there is moisture, foreign substances inside and outside the water-resistant cap, remove them and use it) ②...

  • Page 34: Time Setting Method

    3. Time Setting Method (1) Press once. Cleaning Time Selection (1 to 10 Min) Disinfection Time Selection (1 to 60 Min) Leakage Test Time Selection (1 to 10 Min) Rinsing (Cleaning) Time Selection (1 to 10 Min) Alcohol Supply Time Selection (1 to 10 Sec) Detergent Supply Time Selection (1 to 10 Sec) <...

  • Page 35: Disinfection Solution Exchange Method

    processed, allowing easy cleaning and disinfection < Manual Mode > 6. LEAKAGE TEST (Leakage Test) It is possible to proceed the leakage test for the set time. 7. WASHING (Cleaning) After pre-cleaning, proceed the ultrasonic cleaning for the set time. 8.
  • Page 36 - In case that the cleaning tank is dirty, wipe it with a neutral detergent. - Do not spray water on the interior and operation unit of the product in case of cleaning. (4) Wipe the product with a dry cloth to keep dry always. (5) Check the disinfection filter periodically to remove foreign substances.
  • Page 37 3) Move the mark bar to the additional function to be changed by pressing button. 4) Press button, and select [Ο] or [×]. (Select [Ο] if using the additional function, or select [x] if not) 5) Press button to finish the setting (Additional Function Use or Not). ！...

  • Page 38: Customer Service(A/S)

    Appropriate amount of disinfection solution is not Check Disin supplied in 3 minutes. (S1 sensor is not on) Supply Disinfection solution is not recollected within 3 minutes in Check Disin Tank case of disinfection recollecting process (Disin Low Supply sensor is not turned on) Disin Sensor turns...

  • Page 39: Product Warranty

    • Dimension: 450㎜(W)×620㎜(D)×970㎜(H) • Weight: 52[㎏] 1. Product Name: Soft Endoscope Reprocessor Type: SOO Dual 2. Company Name of Manufacturer: ASAP Co., Ltd. Address: Room No. 302, 37, Cheonho-daero 221-gil, Gangdong-gu, Seoul, Republic of Korea 3. Manufacturing License: No. 4001 Product Authorization: No.
  • Page 40 Name Address ※ When purchasing a product, you have to get the confirmation from the purchasing place for future free warranty. ※ Other Items: _________________________________________________________________________________________________________ <Warranty Regulation> The warranty period of the equipment main body is 1 year after purchasing and accessories are excluded.

This manual is also suitable for:

Cube liteSoo dual
