COPY OF THE ORIGINAL
INSTRUCTION MANUAL
5 AXIS CLAMPING VICE
Code: 10705922 Printed January 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMW Autoblok IMG and is the answer not in the manual?

Questions and answers

Summary of Contents for OML SMW Autoblok IMG

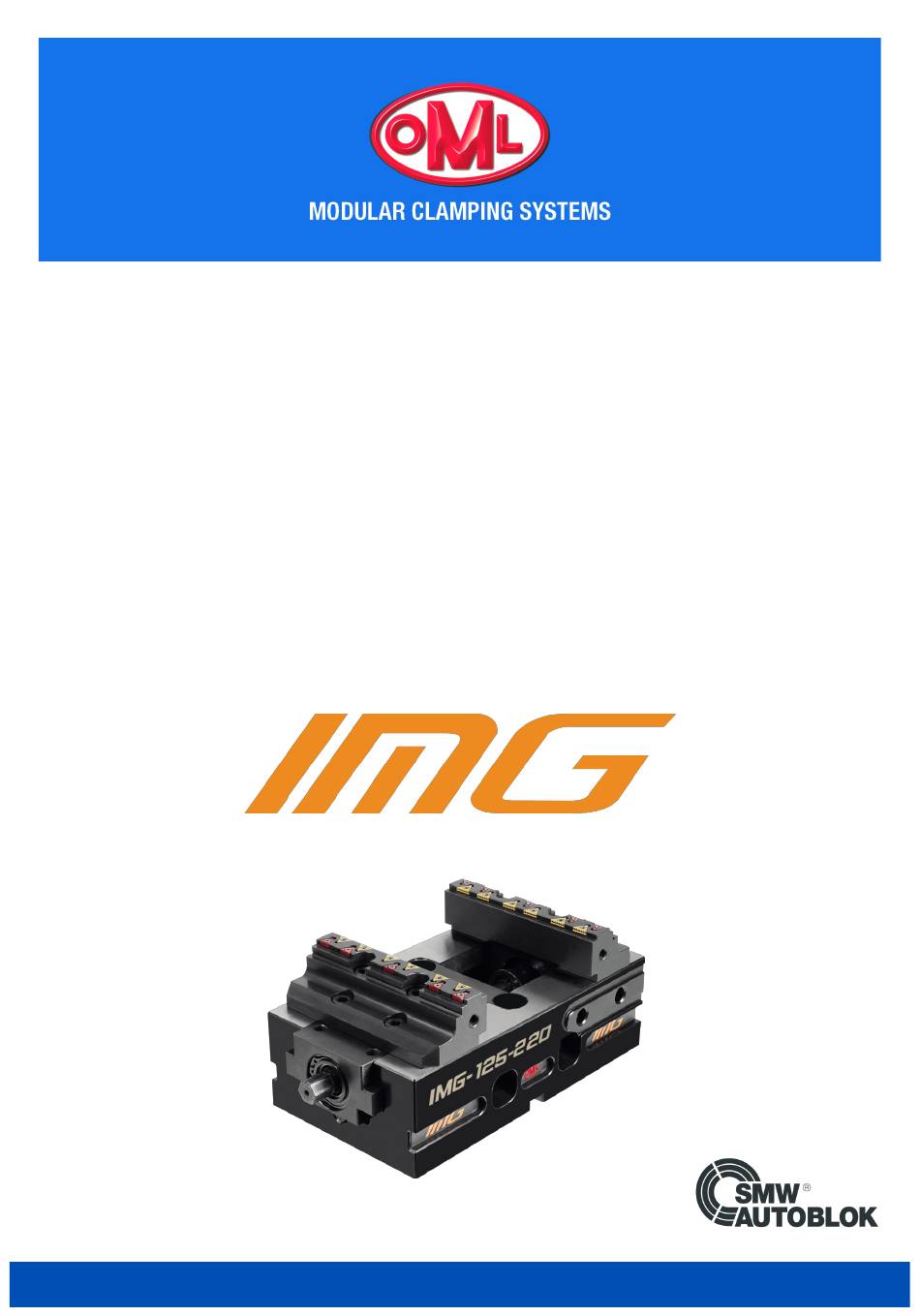

  • Page 1 COPY OF THE ORIGINAL INSTRUCTION MANUAL 5 AXIS CLAMPING VICE Code: 10705922 Printed January 2020...
  • Page 2 This instruction manual contains the installation and maintenance of the IMG vice. OML reserves the right to make changes without notice. This instruction manual is a part of the work holding and must be passed to the new owner in case of sale.
  • Page 3: General Safety Instructions

    For a proper function of the work holding, use original OML lubricant only. Max. speed The clamping unit is intended for stationary use only, and...
  • Page 4: Technical Data

    Technical Data Clamping tolerances Clamping repeatability +/- 0,01 Clamping force IMG 160-270 IMG 160-420 IMG 125-220 IMG 125-320 Clamping forces valid for self-centering, Double clamping, Fixed jaw...
  • Page 5: Usage Notes

    Usage Notes...
  • Page 6 Usage Notes Clamping types IMG 125: 2 x M10 x 30mm 58490710 IMG 160: 2 x M10 x 40mm IMG 125: 2 x M10 x 70mm IMG 160: 2 x M10 x 80mm IMG 125: 58351719 Self-centering IMG 160: 58361719 Double clamping 71107140 IMG 125: 58351019...
  • Page 7 Usage Notes Screw cover caps extraction Solution 1 Magnetic extractor Cod. 71290755 Solution 2 Screw cover caps extraction with compressed air...
  • Page 8: Installation

    Installation IMG 125 - IMG 160 with APS 140 APS 140 fixing pin kit and key for single use COD. 46162355 COD. 46162333 IMG 125 - IMG 160 with APS 190 APS 190 fixing pin kit and key for single use COD.
  • Page 9 Installation Use on Lang Quick-Point zero point system IMG 125-220 = LANG 52 - 96 mm IMG 125-230 = LANG 96 mm IMG 160-270 = LANG 96 mm IMG 160-420 = LANG 96 mm SECTION A-A...
  • Page 10 Installation IMG 125 - IMG 160 Positioning key Fixing clamps Positioning key for “T” slots Pair of clamps...
  • Page 11 Installation Direct mounting on plate or tombstone IMG 125 - IMG 160 Example of tombstone mounting Remove screw protection caps TCEI M12x70 screws for all vice models...
  • Page 12 Disassembly IMG 125 - IMG 160 Remove the upper middle support Remove the slide stop screws Remove the jaws Remove the screw assembly complete with slides...
  • Page 13: Spare Part List

    Spare part list IMG 125 - IMG 160 Complete screw group IMG 125-220 - cod. 58359010 IMG 125-320 - cod. 58359020 IMG 160-270 - cod. 58369010 IMG 160-420 - cod. 58369020 IMG base Bronze ring 15 Stopper ring 22 Cap Right slide way Elastic ring 16 Cap...
  • Page 14 Note...
  • Page 15 Note...
