TST TM-507 Instruction Manual

Wireless tire pressure and temperature monitoring system
Hide thumbs Also See for TM-507:
Table of Contents

Advertisement

Quick Links

Download this manual

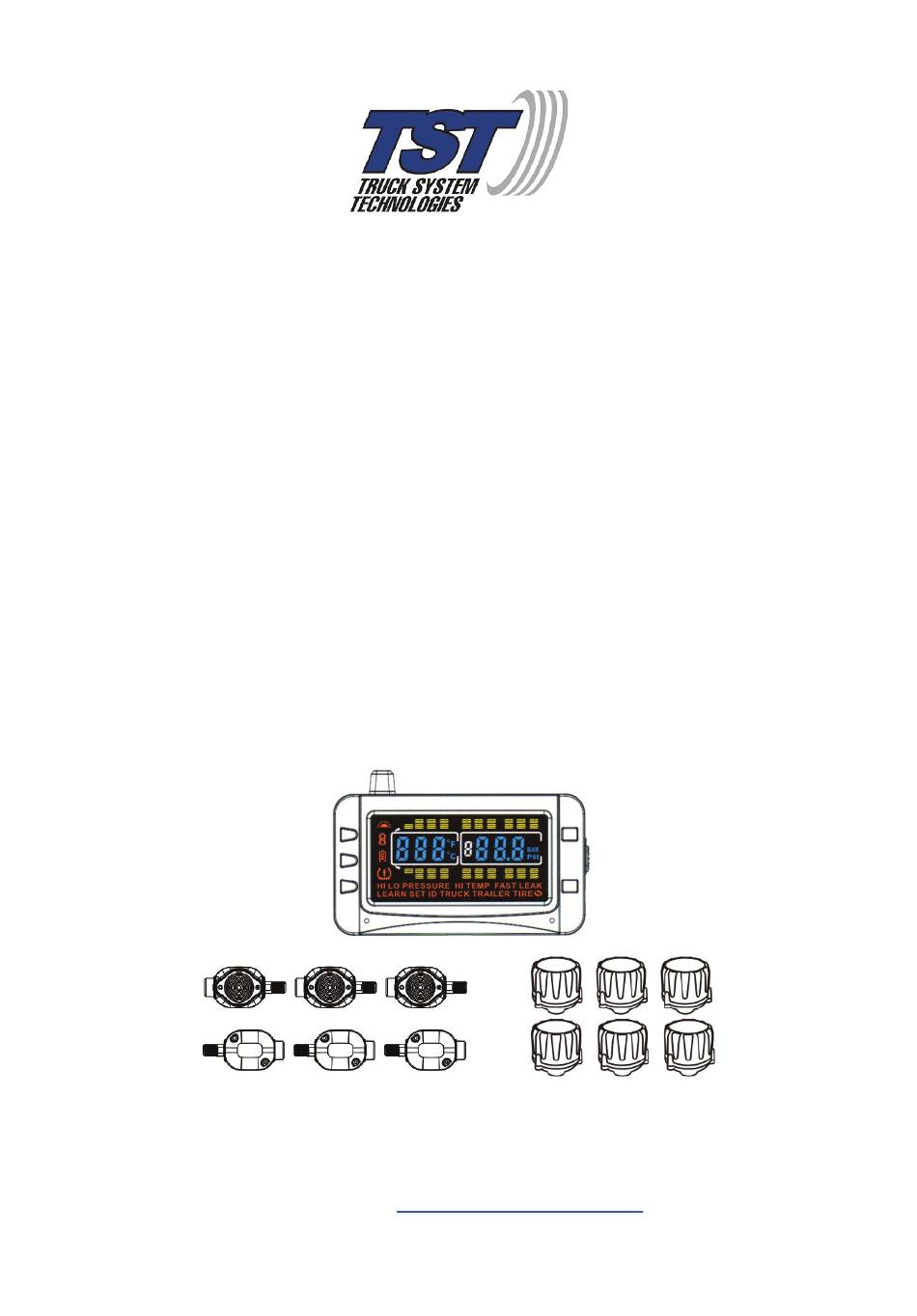

TST-Doc-507 WSD Manual-(A)
Wireless Tire Pressure and Temperature
Monitoring System Instruction Manual
Model #: TM-507 Wide Screen Display
507 Flow-through and Cap Sensors
Thank you for purchasing the TST Tire Pressure Monitoring
System. With minimal care, your new TPMS will
provide reliable service for many years. Please read and
understand the information contained within this manual.
Keep this manual for future reference.
Telephone: 770.889.9102
Website:
www.tsttruck.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM-507 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TST TM-507

Summary of Contents for TST TM-507

  • Page 1 Monitoring System Instruction Manual Model #: TM-507 Wide Screen Display 507 Flow-through and Cap Sensors Thank you for purchasing the TST Tire Pressure Monitoring System. With minimal care, your new TPMS will provide reliable service for many years. Please read and understand the information contained within this manual.
  • Page 2 TST-Doc-507 WSD Manual-(A) INDEX Page 1 - Sensor Features Page 1 - Display Features Page 2 - System Components in Kit Page 3 - Display Controls Pages 4 - 7 - Programming Sensor Codes Into the Display - Automatic Code Learning (Option #1)

  • Page 3: Sensor Features

    TST-Doc-507 WSD Manual-(A) SENSOR FEATURES 1. The sensors easily install on the valve stem. 2. Sensors are water resistant. 3. Pressure and temperature data is read every two (2) minutes. 4. Removal of a sensor (0 lbs. pressure) will shut off the sensor battery.
  • Page 4 TST-Doc-507 WSD Manual-(A) 9) Visual and audible warning alarms when temperature or pressure exceeds thresholds. 10) Multiple pressure units: PSI, BAR. 11) Selectable temperature unit: °C or °F. 12) Program up to 110 tires. 13) Tire pressure and temperature is displayed simultaneously for quick viewing of each tire.

  • Page 5: Display Controls

    TST-Doc-507 WSD Manual-(A) Flow-through Sensors Cap Sensors FT Hex Wrenches Cap Wrenches DISPLAY CONTROLS Display Holder BACK Pressure Unit: BAR or PSI, user-selectable temperature unit: C° or F°, user-selectable.
  • Page 6 TST-Doc-507 WSD Manual-(A) PROGRAMMING SENSOR CODES INTO THE DISPLAY Note: Your sensors will begin reading as soon as they are coded into the display. Once you go back to the main screen by pushing the “BACK” button twice, you may hear an alarm and see a pressure reading of “0”.
  • Page 7 TST-Doc-507 WSD Manual-(A) AUTOMATIC CODE LEARNING (option #1) Note: Code all the sensors to the display BEFORE screwing them onto the tire valve stem unless otherwise noted. 1. Push and hold the “SET” button until it beeps. You are now in the programming mode. The “HI PRESSURE SET”...
  • Page 8 TST-Doc-507 WSD Manual-(A) Note: To delete a single sensor code: Press the “SET” button until it beeps (approx. 3 seconds). Push the (+) button and scroll through the parameters until “LEARN ID” appears. Press and release the “SET” button. Use the (+) or (-) buttons to scroll to the tire you wish to remove.
  • Page 9 TST-Doc-507 WSD Manual-(A) different tire, press the (+) button to move to the correct tire. Push the “SET” button again and “FFF FFF” will flash. 4. Tighten the sensor down on the corresponding tire valve stem. The ID code will display and flash.
  • Page 10 TST-Doc-507 WSD Manual-(A) 4. To stop the coding for any position, Press “BACK” once. “FFF FFF” will reappear. No settings will be saved. 5. Press “BACK” twice to return to the main screen. SENSOR INSTALLATION - Flow-through Sensor 1. Be sure the anti-theft allen set screw at the sensor base is not screwed in as to impede screwing the sensor onto the valve stem.

  • Page 11: Display Installation

    TST-Doc-507 WSD Manual-(A) SENSOR INSTALLATION - Cap Sensor • Place the provided wrench around the sensor. You must use the wrench to put the sensor on or take it off of the valve stem. • Screw the correctly marked sensor onto the valve stem for that tire position.

  • Page 12: Display Buttons

    TST-Doc-507 WSD Manual-(A) DISPLAY BUTTONS • There are five (5) programming buttons on the display. They are: “GO”, “SET”, “BACK” on the left side of the display and (+) and (-) on the right side of the display. • The power slide switch is located on the right side of the monitor.
  • Page 13 TST-Doc-507 WSD Manual-(A) PRESSURE PARAMETERS To choose the Pressure Parameter, press the “SET” button until it beeps. Press the (+) button three (3) times and “SET” will appear at the bottom of the screen and BAR/PSI will be blinking on the screen.
  • Page 14 TST-Doc-507 WSD Manual-(A) HIGH TEMPERATURE ALARM SETTINGS To set the High Temperature Alarm, press the “SET” button until it beeps. Press the (+) button twice and “HI TEMP SET” will appear. Again, press the “SET” button to enter that mode. Use the (+) or (-) buttons to adjust the High Temperature parameter, if desired.
  • Page 15 TST-Doc-507 WSD Manual-(A) LOW PRESSURE ALARM SETTING To set up the Low-pressure Alarm, press the “SET” button until it beeps. Press the (+) button once and “LOW PRESSURE SET” will appear. Again, press the “SET” button to enter that mode. Press the “GO”...

  • Page 16: Display Alerts

    TST-Doc-507 WSD Manual-(A) RESTORE PARAMETERS TO FACTORY DEFAULT SETTINGS Turn off display by pressing the “BACK” and “SET” buttons at the same time until you hear one beep. The display will power back on and original factory parameters will be restored. Tire codes will not be erased or changed.

  • Page 17: Other Functions

    TST-Doc-507 WSD Manual-(A) Sensor Low Battery Alert The sensor low battery indicator will display when the CR1632 battery is at the end of its life. The tire affected will flash along with the pressure and temperature read-out and the low battery symbol and (!) on the left side of the display.
  • Page 18 TST-Doc-507 WSD Manual-(A) the display is on the internal battery, the display will “go to sleep” until the vehicle resumes motion. To shut the light sensor off, press the (+) button for approximately 4 seconds. Disconnecting and Reconnecting a Vehicle...
  • Page 19 TST-Doc-507 WSD Manual-(A) REPLACING THE FLOW-THROUGH SENSOR BATTERY (CR1632) 1. Remove the sensor from the tire valve stem. 2. Using a jewelers Phillip’s screwdriver, remove the two screws from the battery cover on the side of the sensor. The “+” side of the battery can now be seen.
  • Page 20 This is the waterproof seal. Replace if old or damaged. Additional “O” rings are provided in your 507FT kit or can be purchased from TST by calling 770-889-9102. 7. After the new battery installation replace the battery compartment cover and snuggly tighten the two screws.
