VORAGO KSP-450 - Karaoke Speaker Quick Guide

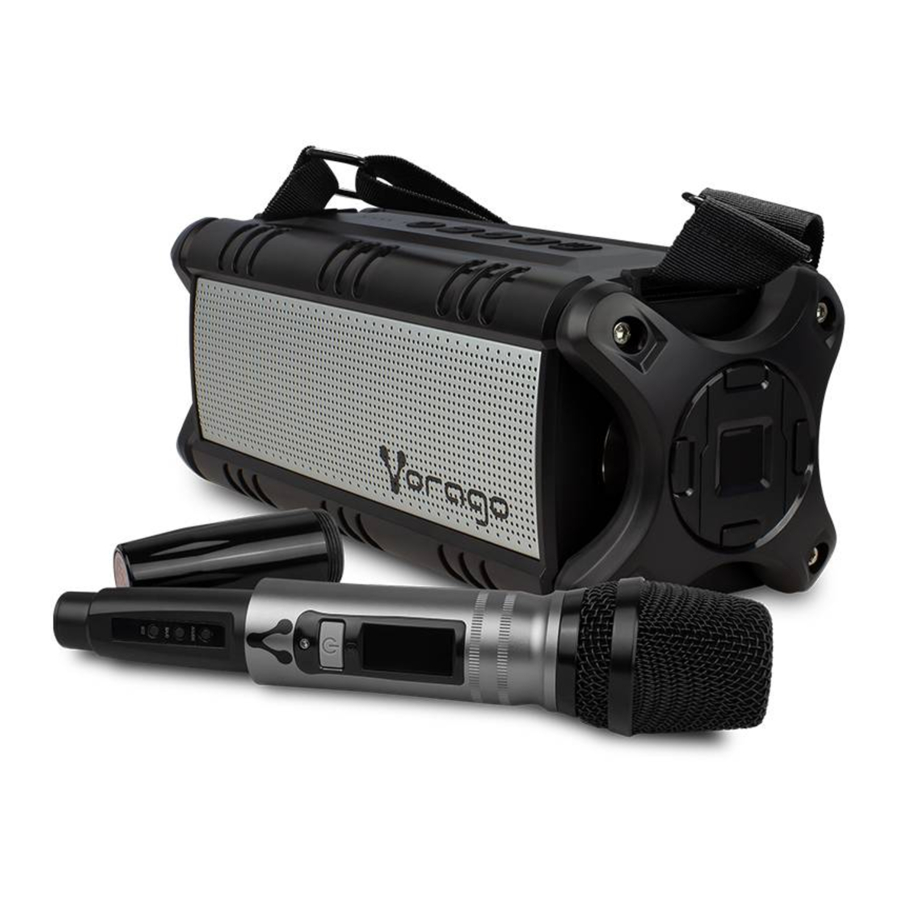

KNOW YOUR DEVICE

SPEAKER OPERATION

Items	Instructions	LED States
Power On	Long press "" for 2-3 seconds under Power off situation	Blue LED On
Power Off	Long press "" for 2-3 seconds under Power on situation	LED off
Pairing	Auto to Enter Pairing Mode	Blue LED Flash (every 2 seconds)
Successful Pairing	Select Bluetooth Name on your Phone	Blue LED
Disconnect Bluetooth	Press "+""-" together	Blue LED flash (every 2 seconds)
Reconnect	Will connect automztically with the last connected device	Green LED
Receive the Call	Short press "" when incoming call (Under TWS, only the main speaker will work)	/
Reject the Call	Long press "" when incoming call (Under TWS, only the main speaker will work)	/
Hang up the Call	Short press "" when you are on call (Under TWS, only the main speaker will work)	/
Call back	Long press "" (Under TWS, only the Main device can talk)	Blue LED
Mode Switch	Short press ""	/
AUX Mode	Insert AUX cable to enter AUX mode	Green LED
USB Mode	Insert a USB memory to enter USB mode
TF Card Mode	Insert to enter TF card mode

BASIC FUNCTIONS

TWS Pairing	Double press ""	Blue and Green LED Alternately flash
TWS Successful	/	Main device blue LED slow flash, auxiliary device blue LED long light
Disconnect TWS	Press + - together	Blue LED fast flash
Sound effect switch	Short press "" Sound effect button	Indoor: State indicator light long light; Outdoor: State indicator light flash
Volume Up	Short press +	/
Volume Down	Short press -	/
Next Song	Long press +	/
Previous Song	Long press -	/
Pause/Play/Mute	Short Press "" (Mute in AXU mode)	/
Low Battery Alarm	Battery Voltage lower than 6.5V	/
Low Battery Shutdown	Battery Voltage lower than 6.2V	/
Charging	Connect Type C USB cable	Red LED Long Light
Charging Finished	Auto completed	Red LED Off
Reset	Insert a toothpick on the AUX hole	LED off

TWS MODE

1. Turn on two device, blue LED flash.
2. Select one of the device and double press the power button, and then they will pair each other. ( The main speaker LED will flash blue and green)
3. After successfull pairing, main device blue LED slow flash, auxiliary device blue LED long light.
4. In your device search for "KSP-450" and connect, after successfully connecting, the two device can play music together.
5. Disconnect TWS, press "+. - " buttons together, the blue LED fast flash means it has been disconnected.

TECHNICAL SPECIFICATIONS

1. Power ON/OFF button: press and hold button to power on/off.
2. Pairing mode: when the speaker is at power off status, press and hold the button until the screen flashes 10 s (enter pairing mode); turn on the speaker for pairing them. Once they are successfully connected, the microphone will automatically reconnect with the speaker next time.
3. Microphone volume control: short press button to control the volume|(defalut is the maximum volume step six)

Inside the battery compartment you will find find the microphone audio adjustements.

1. High
2. Bass
3. Eco
