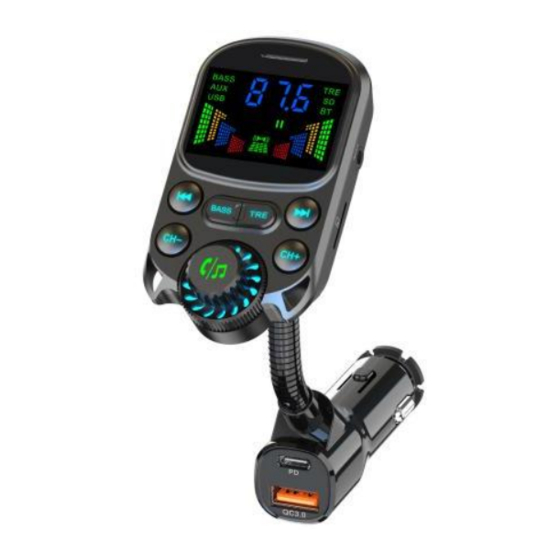

BC86 bluetooth Car Charger
Manual
Product Features:
1. Bluetooth、FM audio transmission
2. Support QC 3.0 QC2.0、PD、Huawei FCP、Samsung
AFC、BC1.2、 Apple 2.4A and other charging protocols
3. Support WMA，MP3,WAV, APE, FLAC music format
4. Support bluetooth hands-free, Voice broadcast, music,
navigation.
5. Support output over voltage protection, short circuit
protection, over current protection, over temperature
protection
6. Low voltage flashing alarm
7. Automatic connect
8. Support U-Disk and TF card play music
9. BASS.TREBLE can be adjusted
10. Dazzling music spectrum
Product specifications:
1. bluetooth version: 5.3
2. FM frequency: 87.5 Mhz-108.0 Mhz
3. bluetooth effective distance: 10m
4. QC3.0 output: 5V/3A、9V/2A、12V/1.5A
5. PD output: 5V/3A、9V/3A、12V/2.5A
6. Music port output: 5V/1A
7. Input voltage: 12V-24V
8. U Disk/TF card capacity: 32G MAX

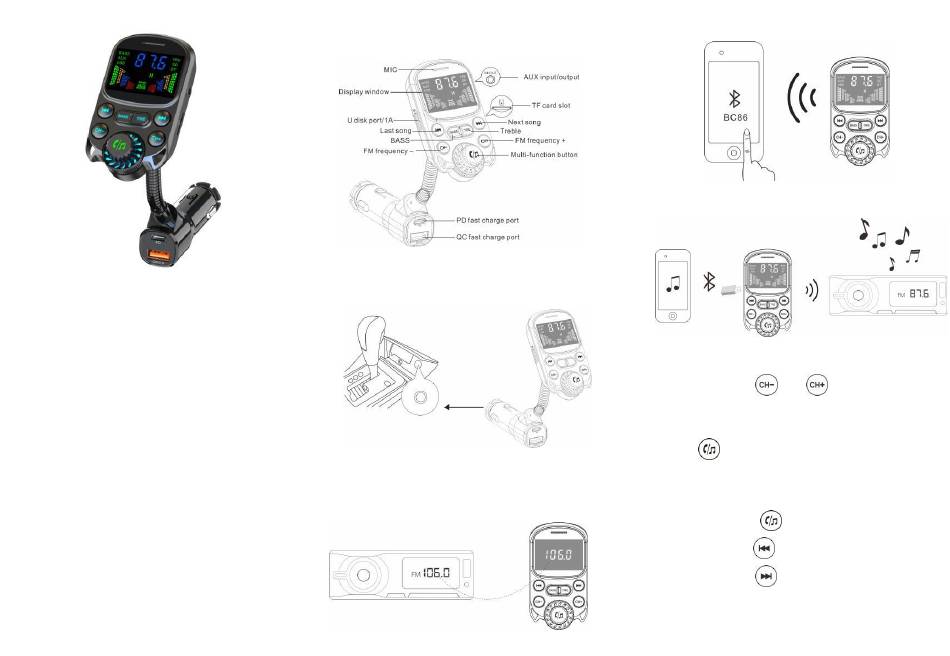

Product Diagram:
Operation instructions:
1. Insert the product into the cigarette lighter of the car after
vehicle start.
2 . The product turns on automatically .
3. Turn on your car FM radio, and choose the blank FM
channel.
4. Adjust the product frequency same as your car radio.
5 . Turn on the bluetooth of your phone, search for the
bluetooth device "BC86" and connect
6. After the connection is successful, you can play music,
navigate or make/answer calls.
FM frequency adjustment :
Click or long press" " " "button to adjust FM
frequency.
Adjust the volume:
Rotate" "button, clockwise volume +,
counterclockwise volume-.
Music control：
1. Pause/play--click" "button
2. Last song--click" "button
3. Next song--click" "button
BASS/TREBLE sound effect adjustment:
Click"BASS "button，to turn on/off bass，click"TER "
button to turn on/off treble, power-off memory current sound
