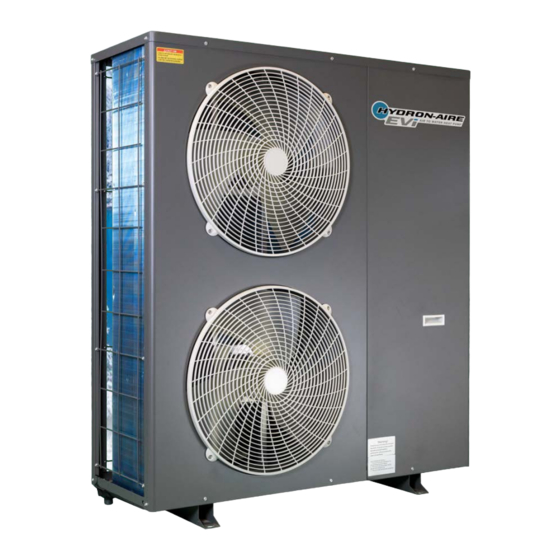

HYDRON-AIRE EVI HEVIAWHP035 Installation & Operation Manual

Hide thumbs

page of 27

/ 27
Bookmarks

Quick Links

Download this manual

INSTALLATION & OPERATIONS

MANUAL

Need help?

Do you have a question about the EVI HEVIAWHP035 and is the answer not in the manual?

Questions and answers

Summary of Contents for HYDRON-AIRE EVI HEVIAWHP035

Page 1 INSTALLATION & OPERATIONS MANUAL...
Page 3 Notice 1. Save this manual for future reference. 2. In order to use this product better and more safely, please read this manual carefully before installation and initial operation. 3. Children or persons with physical, sensory or mental disability should not play with nor operate this appliance.
Page 4 Table of Contents SPECIFICATIONS NOMENCLATURE SPECIFICATION TABLE DIMENSIONAL DATA INSTALLATION OUTDOOR INSTALLATION REQUIREMENTS OUTDOOR INSTALLATION CLEARANCES MAIN BOARD DIAGRAM SIZE 035 MAIN BOARD DIAGRAM SIZE 050-080 8-9. RELAY BOARD I/O DESCRIPTION FAN COIL SYSTEM PIPING DIAGRAM FAN COIL SYSTEM WIRING DIAGRAM FAN COIL SYSTEM WIRING DIAGRAM W/ AUX HEAT RADIANT SYSTEM W/ TANKS PIPING DIAGRAM RADIANT SYSTEM W/ TANK WIRING DIAGRAM...
Page 5 EVi Model Nomenclature H-EVI-AWHP-035-1-N-M HP - Heat Pump PH - Pool Heater 035 - Unit Size 1 - Single Phase 240 3 - Three Phase 240...
Page 7 Dimensional Data model Dimensions mm A(F-R mounting port distance B(L-R mounting port distance 1145 1195 1195 1195 C(Length D(Width 1285 1285 1365 E(Height F(Water connection height) G(Water connection height)
Page 8 Outdoor Installation Ensure that the heat pump has adequate airflow all around and that enough space is left for maintenance and servicing. Please refer to the diagrams below for proper heat pump placement. Incorrect Correct WARNING: For climates with snowfall accumulation please raise the outdoor unit to an adequate height to avoid accumulation around the outdoor unit.
Page 9 600mm 500mm 1500mm 750mm 200mm 200mm Notes: 1. Avoid installing unit where exposed to direct sunlight. 2. Unit should be protected from snow fall accumulation. 3. Unit can be installed on a balcony or other suspended structure as long as proper load bearing supports are in place. 4.
Page 10 Wiring diagram model 035 PFC1 PFC2 CN12 CN301 CN10 EEPROM CN302 CN11 Main board Computer monitoring Communication 4-way valve Capacitance Crankshaft and tropics Coil temp. Ambient Chassis heating temp. Suction Discharge temp. temp. EVI valve Water intlet Cold coil temp. temp.
Page 11 Wiring diagram model 050, 060, & 080 PFC1 PFC2 White Blue CN12 CN301 CN10 EEPROM CN302 CN11 Main board Computer monitoring Communication 4-way valve Crankshaft and tropics Coil temp. Ambient Chassis heating temp. Suction Discharge temp. temp. EVI valve Water intlet Cold coil temp.
Page 12 Relay Board I/O Description Note: All inputs require 24VAC (ungrounded side) power to operate and a 24V COM common connected. THERM and U1 - Connection terminals for the tank thermistor sensor used in the DHW control mode. Only one should be connected at a time. U2 - Connect to the CN27 Water Tank Temp input on main board or the cable marked “Water Tank”.
Page 13 ...cont. DHW - Supplying 24V to the DHW terminal will enable HP DHW (Hot Water) mode. When DHW mode is enabled the heat pump will monitor the temperature of the connected external temperature sensor. Regardless of the other heating or cooling demands present, when the temperature of the sensor drops below the DHW mode set point plus the set differential the heat pump will activate it’s the...
Page 14 Piping Diagram 1: Air Handler Air handler. Buffer tank with electric heat elements, 24V transformer and pump relay. Heating and cooling. Multi zone with radiant. Indirect domestic hot water tank. EVI Heat Pump Mass Tank Second Pump Second Pump Optional Resistive Required for Required for size 60 and 80...
Page 15 Notes: Wiring Diagram 1: Fan Coil System. Heat and Cool. Buffer tank with electric heat elements, 24V transformer and pump relay. Single zone or zoning by existing controls. 7-19-21 Main Zone Air Handler and Thermostat Main Zone Air Handler and Thermostat EVI Air To Water Heat Pump EVI Air To Water Heat Pump EVI Air To Water Heat Pump...
Page 16 Notes: Wiring Diagram 1B: Fan Coil System with Duct Heater. Heat and Cool. Single zone or zoning by existing controls. 24 Volt transformer and pump relay by others. 7-19-21 Main Zone Air Handler With Duct Heater and Thermostat Main Zone Air Handler With Duct Heater and Thermostat EVI Air To Water Heat Pump EVI Air To Water Heat Pump EVI Air To Water Heat Pump...
Page 17 Piping Diagram 2: Radiant System. Heat only. Indirect domestic hot water tank. Buffer tank with electric heat elements, 24V transformer and pump relay. Single zone or existing zoning controls. EVI Heat Pump Domestic Water Indirect Hot Water Tank Mass Tank Radiant Floor Zones Second Pump...
Page 18 Notes: Wiring Diagram 2: Radiant System. Heat only. Indirect domestic hot water tank. Buffer tank with electric heat elements, 24V transformer and pump relay. Single zone. 7-19-21 ORC-0100 ORC-0100 Outdoor Reset Tank Controller Outdoor Reset Tank Controller Main Zone Thermostat Main Zone Thermostat DO NOT CONNECT DO NOT CONNECT...
Page 19 Piping Diagram 3: Air Handler Air handler. Buffer tank with electric heat elements, 24V transformer and pump relay. Heating and cooling. Multi zone with radiant. Indirect domestic hot water tank. EVI Heat Pump Domestic Water Indirect Hot Water Tank Mass Tank Radiant Floor Zones Second Pump...
Page 20 Notes: Wiring Diagram 3: Fan Coil and Radiant Floor System. Heat and Cool. Indirect domestic hot water tank. Buffer tank with electric heat elements, 24V transformer and pump relay. Multiple zones. 7-19-21 Main Zone Air Handler Main Zone Air Handler THM-0600 Thermostat THM-0600 Thermostat THM-0600 Thermostat...
Page 21 Piping Diagram 4: Air Handler Air handler. Buffer tank with electric heat elements, 24V transformer and pump relay. Heating and cooling simultaneous with cooling mode three way valve. Multi zone with radiant. Indirect domestic hot water tank. EVI Heat Pump Domestic Water Indirect Hot Water Tank...
Page 22 Notes: Wiring Diagram 4: Fan Coil and Radiant Floor System. Heat and Cool. Three way cooling valve. Indirect domestic hot water tank. Buffer tank with electric heat elements, 24V transformer and pump relay. Multiple zones. 7-19-21 Main Zone Air Handler Main Zone Air Handler THM-0600 Thermostat THM-0600 Thermostat...
Page 23 User interface and functions E F G H symbol instructions icon Cool mode icon Heating mode icon Hot water mode icon ROOM defrost mode icon AMB.T Compressor run icon Fan run icon Pump run icon AUTO Auxiliary electrical heating icon The temperature icon Hours icon Minutes icon...
Page 24 Operational mode selection Press and hold the up key to change between operational modes. Hot water mode Heating mode Hot water + Cooling mode Cooling +Heating mode Hot Water Mode: The temperature on the left side of the display is the hot water tank setpoint.
Page 25 Unit Timer Function (See diagram below) Press the clock Press and hold clock Group 1 timer setting button, then press button. is on the up/down keys to adjust time. Press the Press clock clock button button to turn and then off timer press the up/ down keys to...
Page 26 Error Code Table Error Code Definition Discharge temperature sensor fault Outdoor coil temperature sensor fault Suction temperature sensor fault Condensing coil temperature sensor fault Outlet water temperature sensor fault Inlet water temperature sensor fault Buffer tank temperature sensor fault Controller communication fault Outdoor ambient temperature sensor fault Board to board communication fault (split unit) Driving board communication fault...
