exeltec X CERK HE Installation, Use And Maintenance Manual

Gas fired radiant strips heating systems pre-mix burner evo4
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

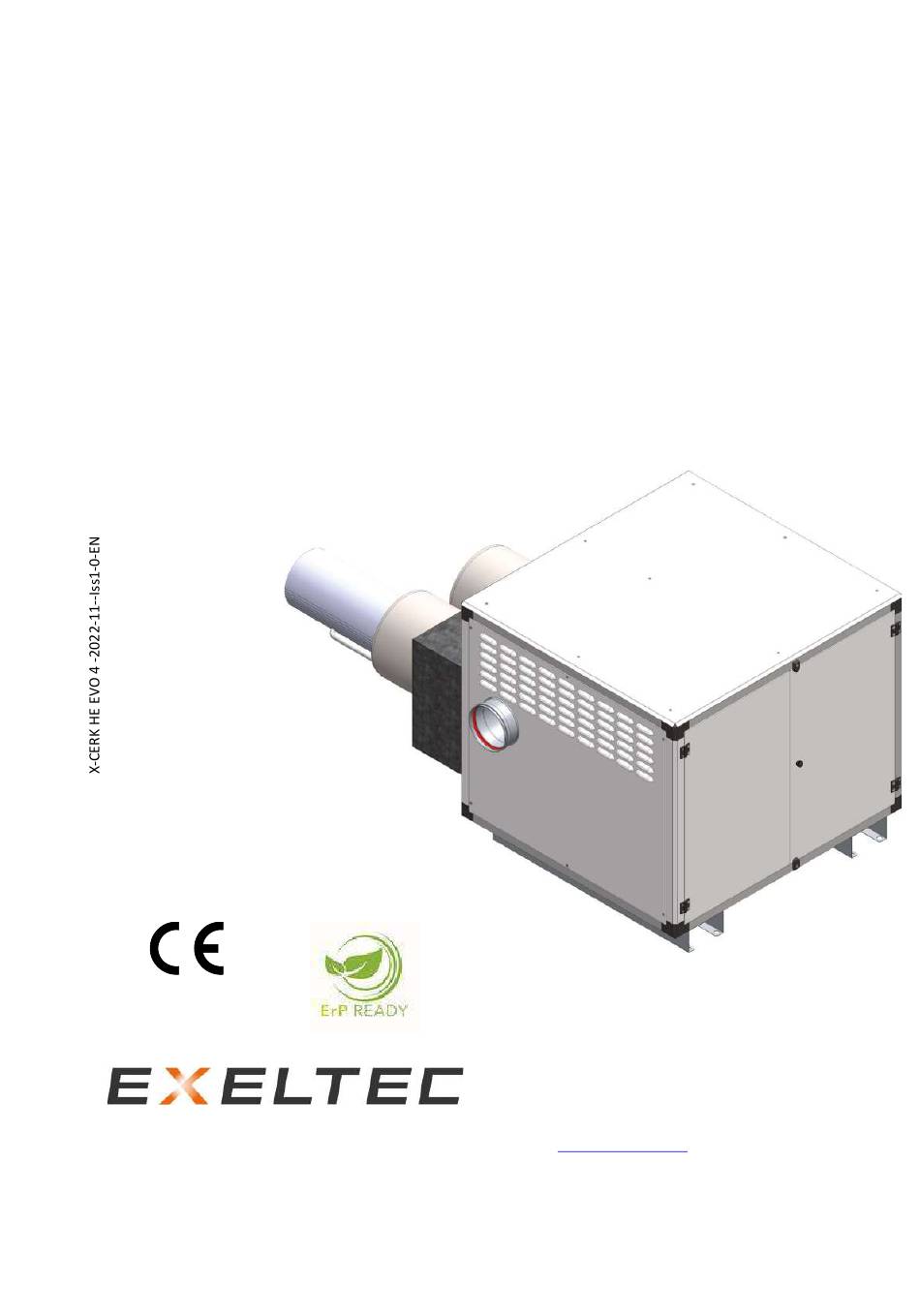

Installation , use and maintenance
manual
Gas fired radiant strips heating systems
X CERK HE / X CERK HE-Jr pre-mix burner EVO4
Technoparc Saône Vallée Est- 215 Rue Marie Curie-
01390 Civrieux en Dombes
Tel : 04 78 82 01 01 Fax : 04 78 82 01 02
www.exeltec.fr
– info@exeltec.fr
