9. Lock the Pop-out Module with the Plastic Locking Pieces
I
Maintenance
• Check that the bracket is secure and safe to use at regular intervals(at least every three months).
• Please contact your distributor if you have any questions.

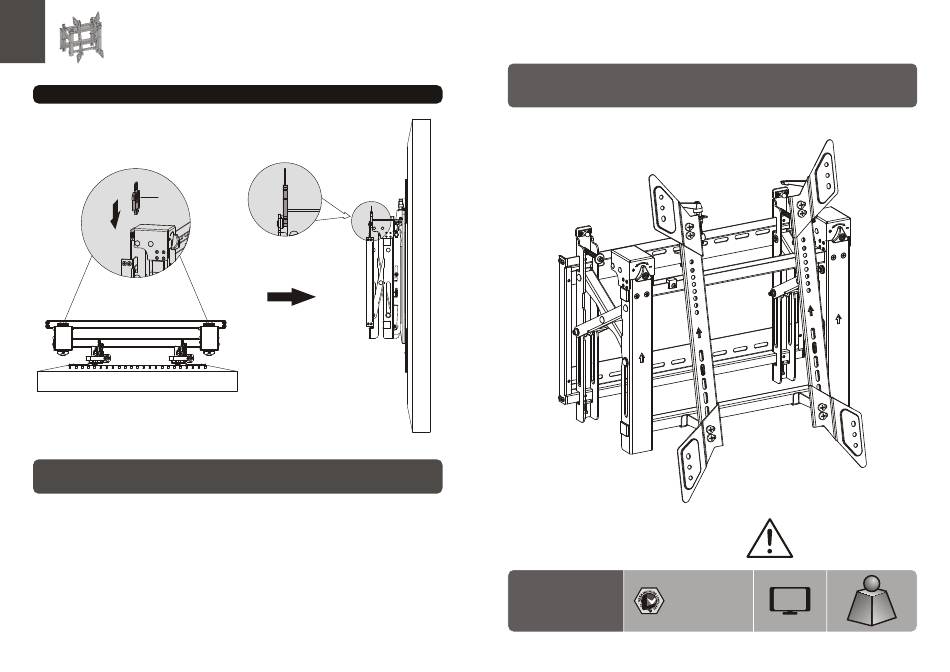

Video Wall Mount
200x200
/300x300
AS0364T
400x200/400x400
600x400
INSTALLATION MANUAL
CAUTION:
DO NOT EXCEED
RATED LISTED WEIGHT. SERIOUS
INJURY OR PROPERTY DAMAGE
MAY OCCUR!
70"
70kg
70kg
MAX
(154lbs)
(154lbs)
RATED
RATED
ISSUED: DEC. 2014
Advertisement
Table of Contents
Summary of Contents for AllMounts AS0364T
- Page 1 • Check that the bracket is secure and safe to use at regular intervals(at least every three months). • Please contact your distributor if you have any questions. CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR! 200x200 /300x300 70" AS0364T 400x200/400x400 70kg 70kg (154lbs) (154lbs) 600x400 RATED RATED ISSUED: DEC. 2014...
- Page 2 Component Checklist NOTE: Read the entire instruction manual before you start installation and assembly. IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, telephone your local distributor for a replacement. WARNING •...
- Page 3 2. For Video Wall Installation (Mounting space as shown below) 1. For Solid Brick and Concrete Wall Mounting X=Length of display Y=Height of display 60mm 60mm (2.4") (2.4") ø 10mm (ø 3/8") Mark the Drill pilot holes exact location of mounting holes √...
- Page 4 Top of the display Hang the pop-out module onto the wall plate. Secure it by tightening both screws. 4. Installing the Adapter Brackets For the VESA:400x400 600x400 4-1 For Flat Back Screens Attach the VESA adapters to the adapter brackets using the appropriate screws and nuts so that the hole pattern can be expanded to the VESA 400x400 and 600x400.
- Page 5 6. Adjustment 4-2. For Bump-out or Recessed Back Screens M-C M-D/M-E M-D/M-E M-D/M-E Note: Choose the appropriate screws, washers and spacers (if necessary) according to the type of screen. Push the display to · Position the adapter brackets as close as possible to the center of the display. left or right to enable ·...
- Page 6 Left Left Left Left Right Right Right Right Left Left Left Left Right Right Right Right...
- Page 7 7. Level the Displays wall Right Right Left Left wall wall wall Adjust the display to keep level in vertical and horizontal directions. Push the display inward and then release it, the display will be pop-out. Kickstands provide tilt access for easy cables management and maintenance.
- Page 8 8. Fixing the Brackets Position with the Antiskid Blocks 1.2mm Note: Use the plastic locking piece to measure and keep a 1.2 mm gap between displays. Note: Install/adjust the displays by the numerical order given. Install the both antiskid blocks as close to the adapter brackets as possible. Tighten screws on the antiskid blocks using a proper screwdriver to prevent display from moving.
