Skyvue C-OBX-55150-UHB-P Owner's Manual page 21

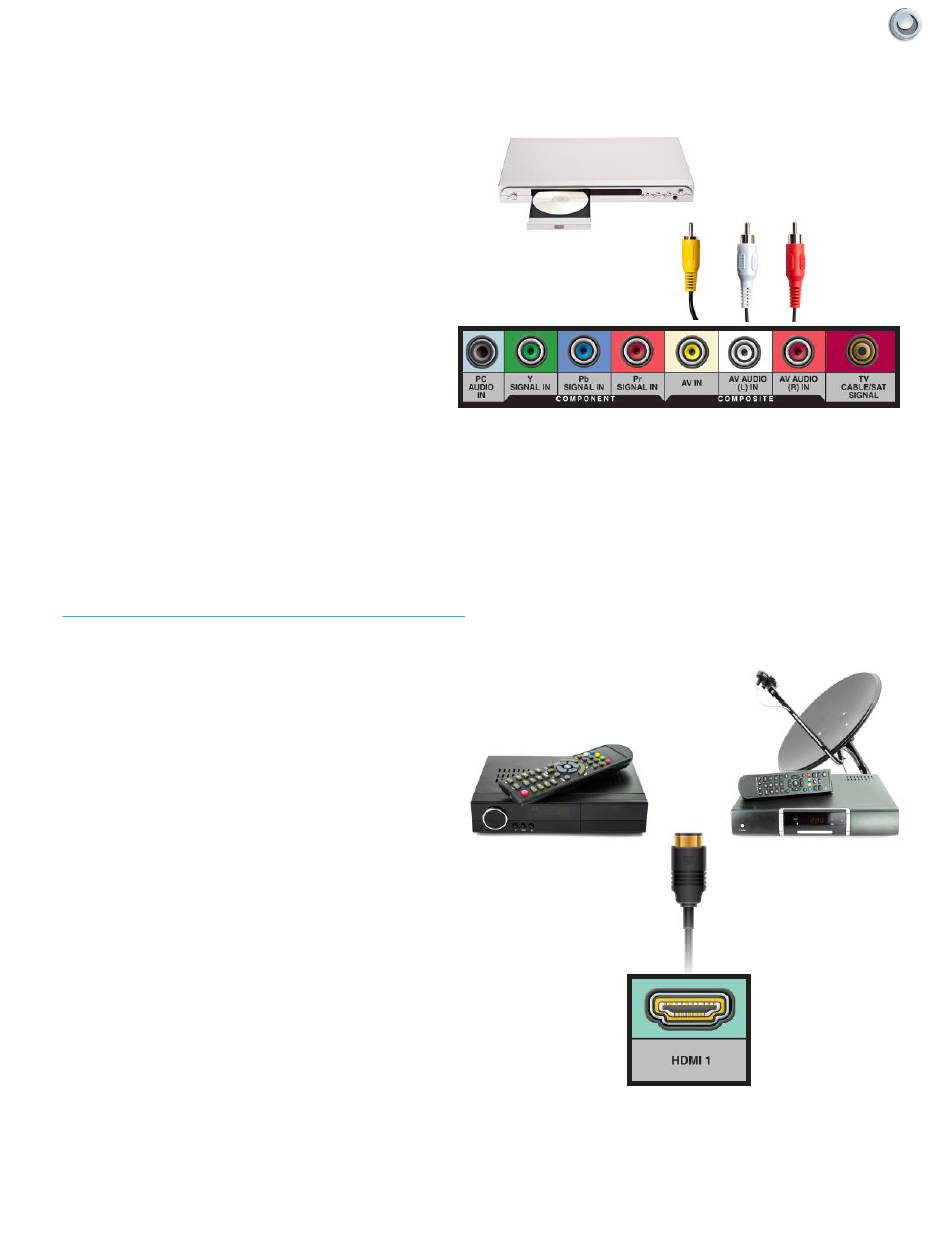

Connecting with Composite
1. Make sure the power of the TV and your DVD/
Blu-ray player is turned off.
2. Obtain a Yellow Video Cable. Connect the
Yellow Video connector to both your DVD/
Blu-ray player and Composite's Yellow Video
connector port off the back of
your TV.
3. Obtain a RCA Audio Cable. Connect the white
color connector to both your DVD/Blu-ray
player and Composite's white connector port
off the back of your TV.
4. Connect the red color connector to both your
DVD/Blu-ray player and Composite's red
connector port off the back of your TV.
5. Turn on the TV and your DVD/Blu-ray player.
6. Use remote control's input button or the input button on the bottom side of the TV to switch to AV (CVBS).
Please note:
1. Reference the DVD/Blu-ray player's manual to make sure the DVD/Blu-ray player is configured to output correctly to the TV.
2. This TV will turn off automatically if there's no signal present for more than 15 minutes.
Connecting to a Cable Box or Satellite
Connecting with HDMI Cable
(Best Option)
1. Make sure the power of the TV and your set-
top box is turned off.
2. Connect a HDMI cable to the HDMI output
of your set-top box and the other end to the
HDMI port off the back of your TV.
3. Turn on the TV and your set-top box.
4. Use the remote control's input button or the
input button on the bottom side of the TV to
switch to HDMI 1.
Please Note :
1. Refer to the set-top box's manual, to make sure the
settop box is configured to output correctly to the TV.
2. If HDMI 1 is already occupied, use HDMI 1 as your
connection port and switch source to HDMI 3.
3. This TV will turn off automatically if there's no signal
present for more than 15 minutes.
Owners's Manual -
Model C-OBX-55150-UHB-P
DVD/Blu-ray
Cable Box
OR
Located on Back of TV
TV I
nsTallaTIon
Located on Back of TV
Satellite
|
19
& C
onneCTIons
