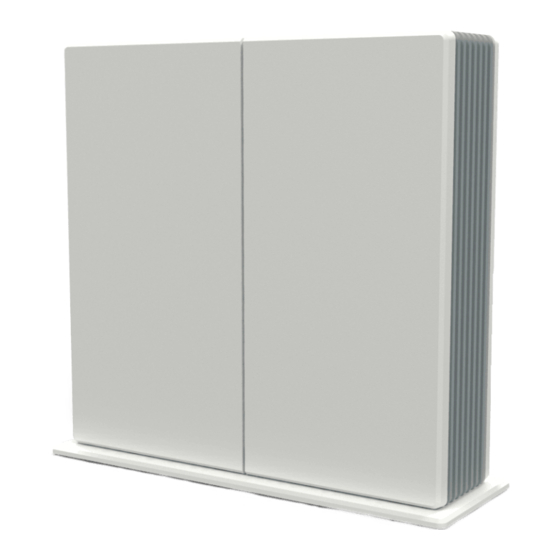

SC109
VIAS Controller
1. General Introduction
VIAS (Video IOT Alarm System) is an all-in-one solution for Alarm, Surveillance
and Home Automation. The VIAS solution consists of the SC109 Controller, the
Cloud platform and the U-net wireless sensors. This manual covers only
standalone operation without connection to the VIAS cloud platform.
The VIAS Controller is the central control hub to wirelessly control and monitor
U-net family of accessories. When connected with the VIAS cloud platform on
the internet, the system will send you alerts during events and provide access
to control your smart home system.
Main features:
Home security and Home automation function.
●
Manage/supervise wireless network of sensor and devices
●
Alerts security provider of alarm events via SIA-IP
●
Harddrive compartment for local storage of 24hrs/7days recorded video
●
Alarm Video verification
●
Connects to router by Ethernet
●
Built-in GSM/GPRS as backup connection
●
Optional 3G/4G LTE connection
●
Rechargeable backup battery
●
Tamper protection for housing open and removal from wall
●

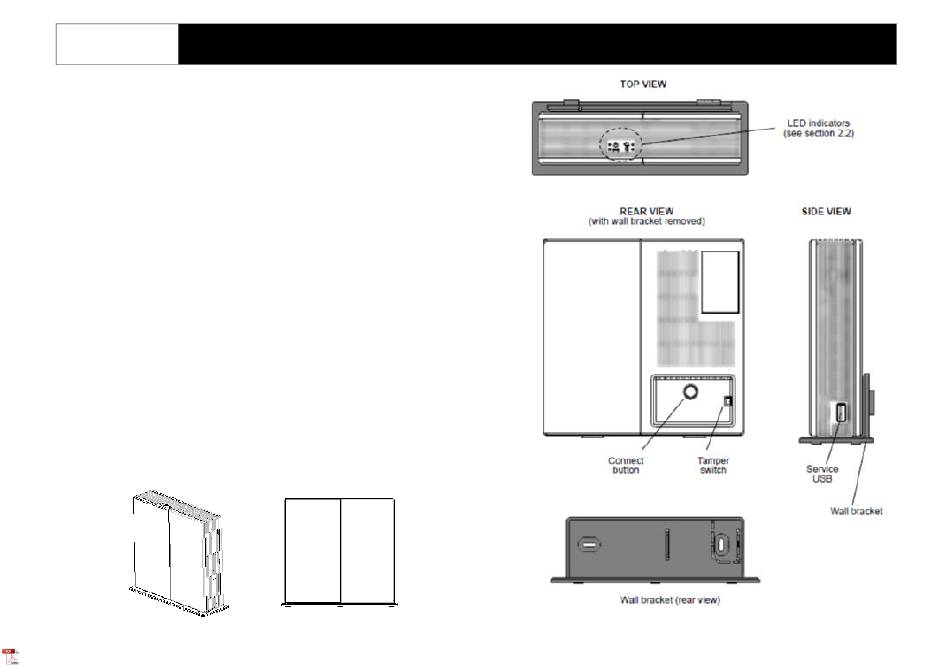

1.1 Product Layout
FRONT VIEW
1
Advertisement
Table of Contents
Summary of Contents for ViAS SC109
- Page 1 1. General Introduction VIAS (Video IOT Alarm System) is an all-in-one solution for Alarm, Surveillance and Home Automation. The VIAS solution consists of the SC109 Controller, the Cloud platform and the U-net wireless sensors. This manual covers only standalone operation without connection to the VIAS cloud platform.
- Page 2 2. Controller hardware setup Remove the battery and hard drive to reveal the connectors. 2.1 Internal connection To access the internal connectors, first remove the wall bracket followed by the top cover. Tamp Remove the wall bracket by removing its bottom screws. Screws Micro SD card slot...
- Page 3 2.2 LED definition Status LED : shows alarm status Power Internet LED Color Meaning System Arm Orange System Partial 1 or 2 Green System Disarm Comms LED Status LED 2.3 Powering up Power LED: Shows the power status and also as error indicator. 1.
- Page 4 7. Connect the back-up battery to the gateway can ensure the alarm working around the Controller is recommended as illustrated below. during the power is cut off. The duration of power back up last for 12hrs. The APP will receive the notification when alarm is triggered when 4G 3.2 Mounting communication is enabled.
- Page 5 4. Account Setup 5. VIAS Alarm System Overview Scan the QR code below to download the iOS/Android app and install it. In a typical installation, each gateway controls several Partitions, under which consists of several zones. One device will be assigned a zone number when added.
- Page 6 4 leds on the top to light on Green again. This procedure takes around SC109-1 (EU) : 868MHz Frequency 30 secs. There will be push notification to notify when gateway is back on- SC109-2 (US) : 923 MHz Sensor & line. devices network (Optional) LTE CAT-1 5.
- Page 7 Le present appareil est conforme aux CNR d'Industrie Canada applicables aux Federal Communication Commission Interference Statement appareils radio exempts de licence. L'exploitation est autorisée aux deux FCC warning: conditions suivantes: Any Changes or modifications not expressly approved by the party responsible (1) l'appareil ne doit pas produire de brouillage, et for compliance could void the user's authority to operate the equipment.
