Summary of Contents for Mahr MarSurf PS1

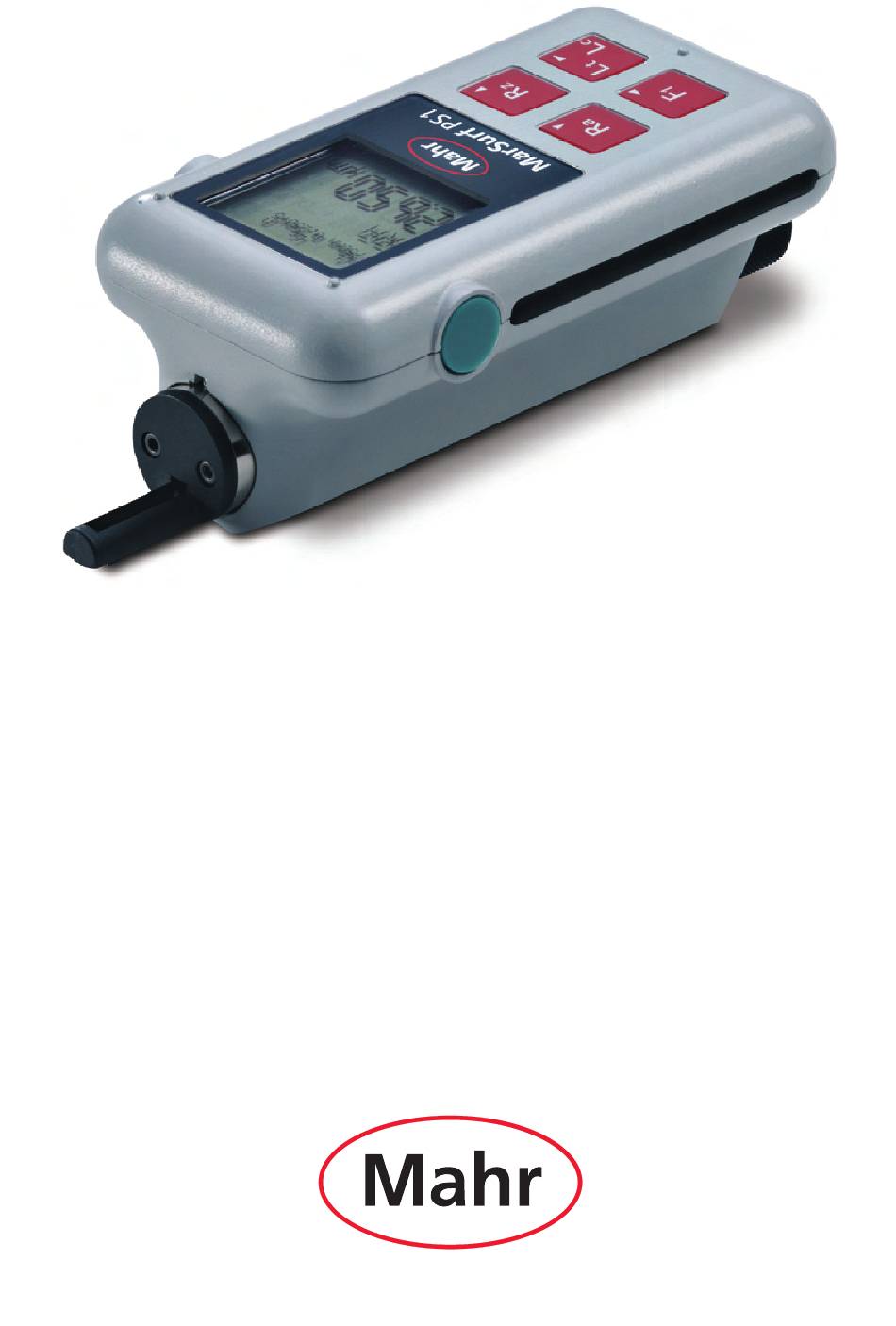

- Page 1 Betriebsanleitung Operating Instructions Guide de l‘utilisateur Manuale di istruzioni Manual de instrucciones MarSurf PS1 Mahr GmbH · Carl-Mahr-Straße 1 · D-37073 Göttingen · Telefon +49 551 7073-0 · Fax +49 551 71021...
- Page 3 Deutsch English Français Italiano Español Mahr GmbH, MarSurf PS1...
- Page 4 Mahr GmbH, MarSurf PS1...
- Page 5 The crossedout garbage can symbol indicates that separate collection is necessary. Mahr GmbH carries out the redemption and disposal of its electrical and electronic products in accordance with legal requirements. Please contact your local service representative.
- Page 6 Disconnect the power supply before replacing the battery. 12. Only Mahrtrained personnel are permitted to carry out work on this instrument and its compo nents. Protective covers must only be removed by trained technicians and only when servicing is required.
- Page 7 4. Measurement ............ 11 Warranty ........59 4. Evaluation ............ 4.4 Available Parameters ........4 Declaration of Conformity .. 60 4.5 Saving Profiles ........... 6 4.6 Saving Measuring Results ......9 4.7 Switching off ............. 44 Mahr GmbH, MarSurf PS1...
- Page 8 These Operating Instructions contain the following symbols: General information. Important information. Nonobservance of this information can result in incorrect meas urements or even damage to the instruments! Mahr GmbH, MarSurf PS1...
- Page 9 The MarSurf PS1 is a compact roughness meas Its compact form and low weight (approx. uring instrument for mobile use under shopfloor 400 g / 0.88 lbs) make the MarSurf PS1 ideal conditions. for mobile use. Thanks to the carrying case with The maximum measuring range is 350 µm...
- Page 10 (and in The software also serves to copy profile and re the measuring record). sult files from the MarSurf PS1 to a computer in a straightforward way. Results and settings can be displayed using either the metric or the Imperial system of units.
- Page 11 5 KB for 100 meas. with 4 parameters approx. 150 Profile file (*.pcd) 45 KB with n = 5 approx. 15 Profile file (*.txt) 66 KB to 88 KB with n = 5 approx. 8 to 11 Mahr GmbH, MarSurf PS1...
- Page 12 Instrument settings can only be modified if they are not Only possible if the reset switch (17) is in the "I" position. blocked, i.e. if "Blocking off" (see Section 3.3. 1 ) and "Save off" or "Save interrupt" (see Section 4.6) is set. Mahr GmbH, MarSurf PS1...
- Page 13 Automatic setting of cutoff and 9 Pair of bow-type vertical adjusters, traversing length arranged as three-point support Non-standard measuring condi- (can also be used individually) tions Battery status : battery almost empty) ANSI, JIS, ISO Standard 11 Text field to display the traversing length Lt (cutoff Lc × number n of sampling lengths), catalog, operating instructions and error messages 12 Symbols +TOL Upper tolerance exceeded for the displayed parameter TOL Lower tolerance exceeded for the displayed parameter Upper limit of measuring range exceeded Lower limit of measuring range exceeded 13 Parameter with measuring result Mahr GmbH, MarSurf PS1...
- Page 14 The brief guide describing the main operating steps can be found in the front pocket of the carrying case. The case’s shoulder strap and belt loop allow the MarSurf PS1 to be carried around easily. Fig. 4 MarSurf PS1 connections 15 USB USB interface ...
- Page 15 The MarSurf PS1 is also charged if it is connected to a PC via its USB interface (15), but the battery takes longer to charge using this method. This can happen after long periods of storage, for exam...
- Page 16 To set up the drive unit: Practical examples: 1. Carefully introduce the pickup (5) into – MarSurf PS1 standing on its veeblock bot the pickup holder on the end face of the tom or on the vertical adjusters, measure drive unit (7), bearing in mind the plug ment on level surface or in bore, stylus tip assignment.
- Page 17 – MarSurf PS1 is held vertically; optional end face veeblock lies on the circumference of a cylindrical testpiece, the stylus tip contacting the end face of the testpiece. Mahr GmbH, MarSurf PS1...
- Page 18 A mount (6910201) is required for this which is available as an optional accessory. 2. Lay the MarSurf PS1 on its top surface and put the mount (22) on top of it so that the mount’s two screws fit into the threaded inserts on the bottom of the MarSurf PS1.
- Page 19 "Results" subcatalog. again to close the catalog. To retain modified instrument settings after the MarSurf PS1 is switched off, an errorfree measurement must be carried out with these settings. Pressing cancels the selection and the change is not made.
- Page 20 The following table shows the catalog of instrument settings with its subcatalogs and the lines they contain (for further details, see Sections 3.3. 1 to 3.3.4). The top line always gives the value on delivery of the MarSurf PS1 or after a reset. Sub-...
