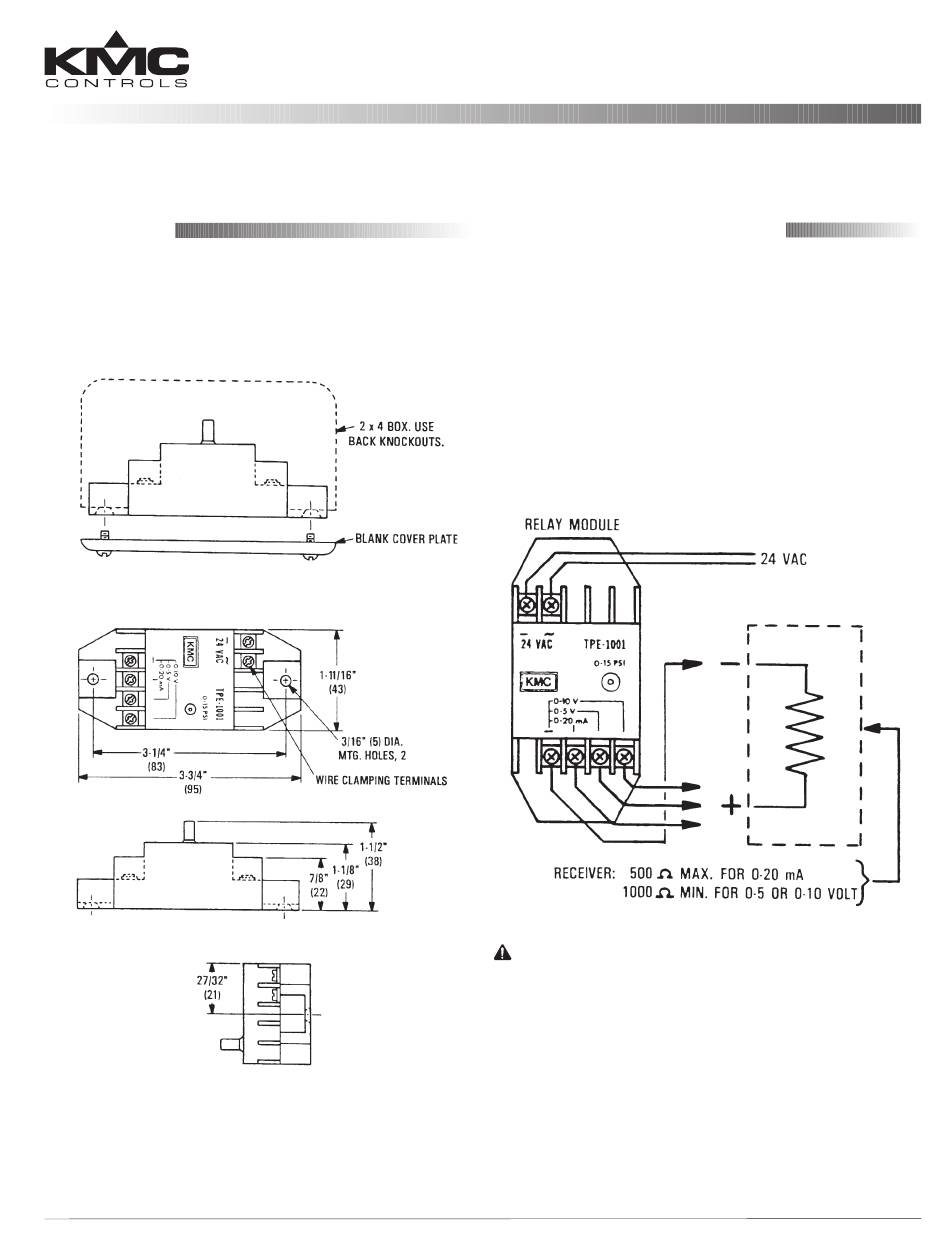

Mounting
The TPE-1001 may be mounted either on a surface,
such as a panel backplate, or in a deep 2" x 4" handy
box. A deep box is required to accommodate the
3/16" (5 mm) diameter tubing connection.
TPE-1001
Installation Guide
Connections and Wiring
1. Connect 1/4" (6 mm) O.D. tubing to the 0–15 psi
2. Connect the terminals of ONE (only) of the
3. Connect the 24 VAC terminals to a 24 VAC (+20%,
1
Pressure Transducer (P-E/I)
port.
outputs (0–5 VDC, 0–10 VDC, or 0–20 mA) to the
appropriate load (500 ohms max. for 0–20 mA or
1000 ohms min. for 0–5/0–10 VDC). (See also the
Input/Output Calibration section.)
–15%), Class 2 transformer. (Multiple units may
be supplied from an individual transformer.)
CAUTION
Pneumatic devices must be supplied with clean, dry
control air. Any other medium (e.g., oil or moisture
contamination) will cause the device to fail.
TPE-1001
Installation Guide
