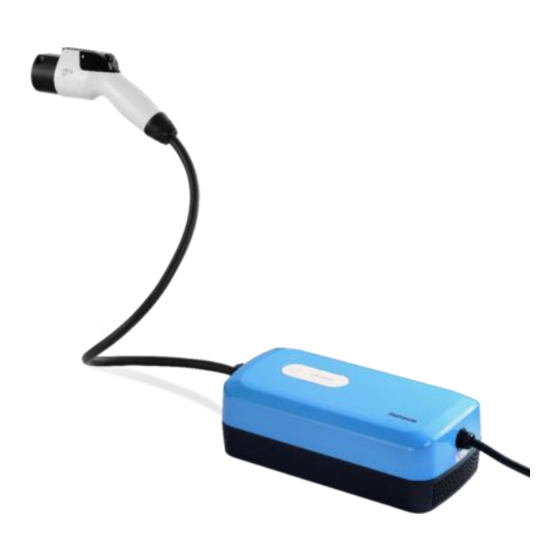

- Page 1 RF Point Pte Ltd SPECIFICATION 3.5 KW Portable DC EV Charger Model DC4KEP Website: www.rf-point.com.sg...
- Page 2 Specifications Item Description Model DC4KEP Dimension (H x W x D) 330 x 164 x 110 mm Weight 7.2 kg Storage Temperature -40 to 176 ° F (-40 to 80 ° C) Operating Temperature -22 to 131 ° F (-30 to 50 ° C)
- Page 3 Input Wiring Hardwired Input Cord L1, L2, L3, N (Neutral), and PE (Protective Earth) AC Power Input Rating 220±20 %Va.c., 50/60 Hz, 32 A (Max ) Output Current Rating Maximum 10A Output Voltage Range 250-500VDC Connector Type Type 2 Charging Mode Plug-and-Charge Website: www.rf-point.com.sg...
- Page 4 2 Charging Operation 2.1 Plug-and-Charge Mode (Default ) When the charging station is on standby, plug in the connector to your EV, and the LED will turn blue from purple. The LED will be flashing green while charging. When your EV is fully charged, the LED will be solid green, unplug the connector and place it back into the holster.
- Page 5 Description Led Indicator Standby Solid Purple Connector Plug in Solid Blue Charging Flashing Green Fully Charged Solid Green RFID Card Setting Solid Orange Fault Flashing RED 3 Troubleshooting LED Status Problems Solutions Immediately turn off the leakage/overcurrent protection switches in the power distribution box.
- Page 6 Check the charger installation environment. The red light flashes slowly twice Check whether there are other and quickly for 4 times, Over-heating heating devices nearby. alternately cycle. Ensure that the ambient temperature is below 50℃ . If the voltage exceeds 265Vac for a short time,wait for the power gird to restore itself The red light flashes slowly for 3 to the normal voltage range.
- Page 7 The red light flashes slowly once and quickly twice, CP Frequency Fault Check whether the charging alternately cycle. connector is connected correctly and stably. IF the fault persists, contact us. The red light flashes slowly once CP Duty Cycle and quickly for 3 times, Fault alternately cycle.
- Page 8 Please do not operate this product at a temperature beyond -30 to 55 ° C. Please do not repair or refit without authorization, contact our support for help. Please do not disassemble safety signs, warning notices, labels, or markings. Please do not spray water or other liquids directly onto the charging station or the connector.
