PLT Tri-Head LED Floodlight Installation Instructions

Installation Instructions

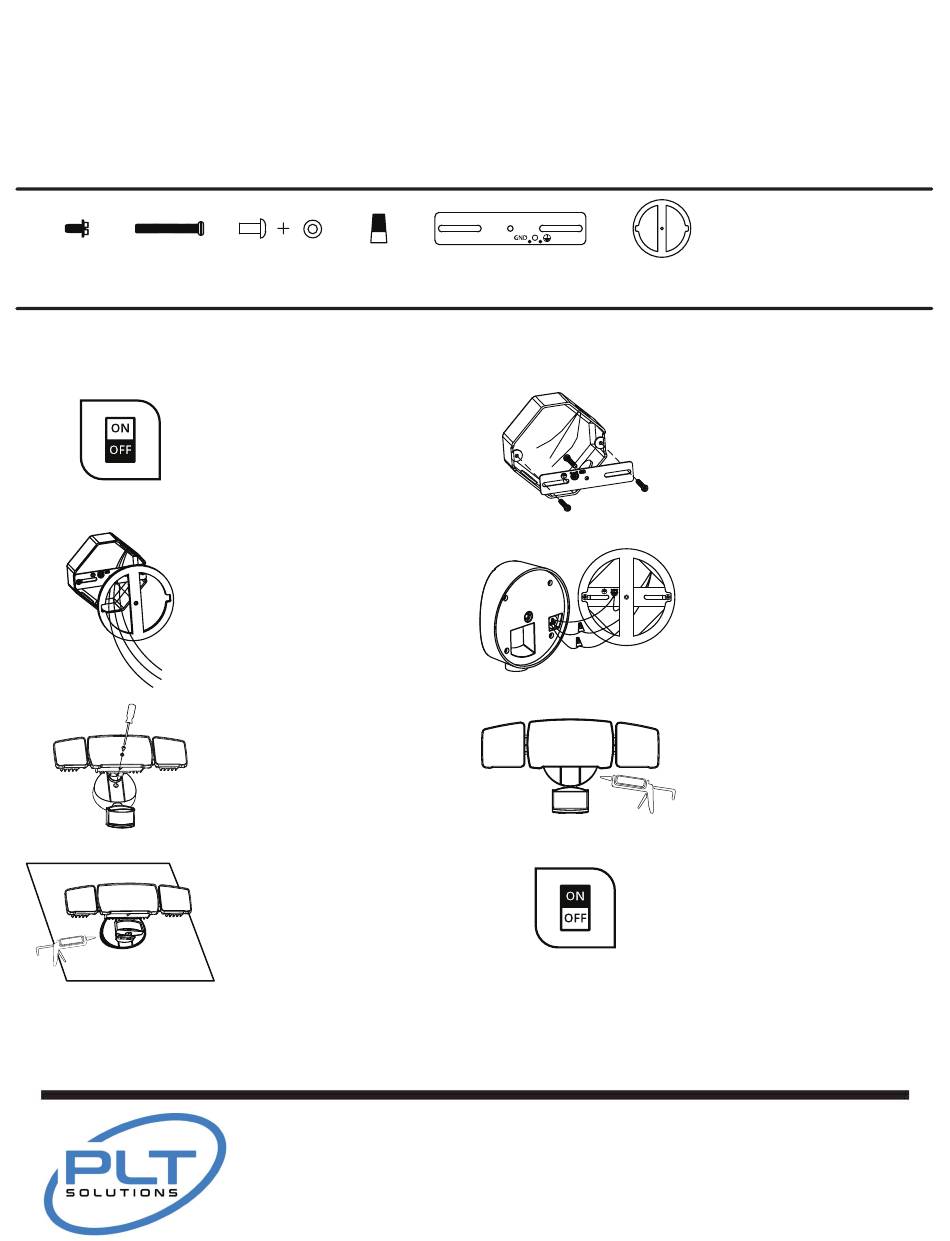

COMPONENTS
A B
Ground Screw Machine Screw
EASY INSTALLATION
Turn Power
OFF
C D
Nut + Silicone gasket Wire Nut
HARDWIRE INSTALLATION WITH BRACKET TO J-BOX
1. Turn off the switch and circuit breaker before
installing this LED light fixture.
4. Pull the supply wires through the gasket opening.
5. Adhere the EVA Gasket to the crossbar and outer
edge of the round, surface mount junction box.
• Ensure that the center machine screw on the
crossbar is threading through the hole of the
EVA Gasket
9. Position wall plate over the crossbar. Mount the
light onto the crossbar.
• Secure with nut + silicone gasket (part C).
• Do not overtighten.
10. Make sure the motion detector head is NOT
upside down. Rotate the motion sensor so the
controls face detection areas.
12. After mounting the motion-activated light, apply
a silicon sealant compound (not included) around
the perimeter of the cover plate. This will seal
where the back of the cover plate meets the
mounting surface. Sealant will prevent water from
seeping into the J-Box
Tri-Head LED Floodlight - Page 1
E
Crossbar
Turn Power
ON
Any further questions or interests, please visit
www.pltsolutions.com
F
EVA Gasket
2. Insert the machine screw (part B) into the center
hole of the crossbar (part E). Attach the crossbar
to your junction box (not included) with the other
2 machine screws (part B).
• Ensure the screw thread on the center hole is
pointing away from the surface.
3.
Remove the protective paper from the adhesive
face of the EVA Gasket (part F).
6. Connect supply wires to the LED wires and
secure with wire nuts (part D).
• Black to Black (live)
• White to White (neutral)
7. Connect the yellow/green ground wires from
supply to the LED light and secure using
Ground Screw (part A) on the crossbar.
8. Tuck wires into junction box once you confirm
wire connections are secure.
11. For wet locations, fill the gap of the EVA Gasket
and mounting surface with a sealant compound
or a silicon glue (neither included).
13.
Turn on breaker and light switch. When the sensor
detects movement at night within the coverage
area, the security light will automatically turn on.
• Establish the time settings and maximum
sensing range with the details below.
