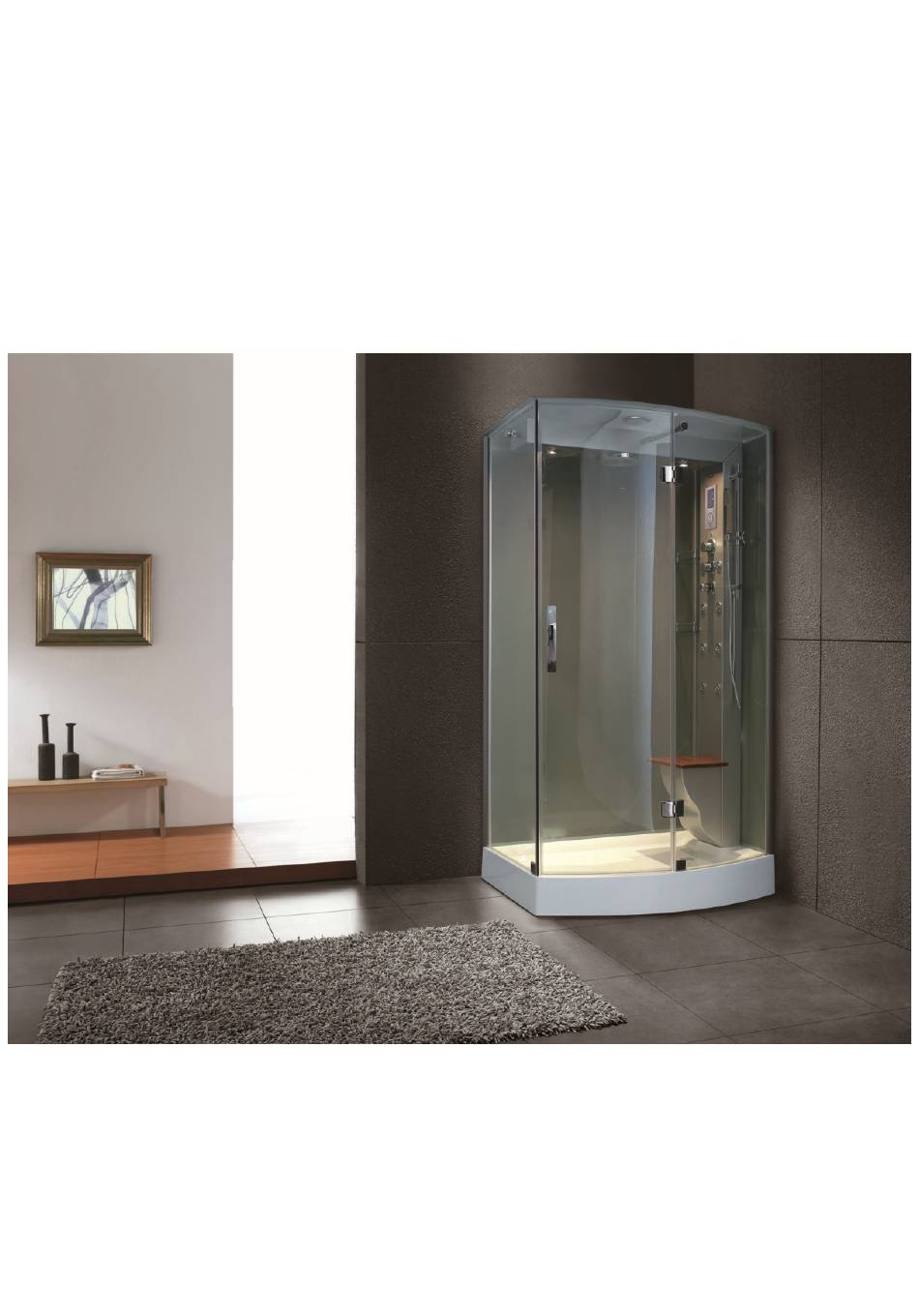

- Page 1 WG-U820 Instruction Manual...
- Page 2 Top Cover Exhaust Fan long Pole short Pole Top Lamp Top shower Handle Shower Fixed aluminum Control panel Temperature probe head Lifting Polr Storage Shelf Thermostatic Switch Ozone Accupuncture Jet Door Handle The chief aluminum pillar Wood Seat Sliding Glass Hinge Drainer Fixed Glass Hinge...
- Page 3 Size:1200x880x2250mm 1200 3 7 0 1 0 0 Creepage Protect 1. Water supply: One piece of galvanized tube Cold water shall be provided for hot and cold water respectively 1300mm high from the ground and Hot water the DN15 shut-off valve shall be mounted on the wall: 0.25mPa≤pressure≤0.4mPa.
- Page 4 M6x35 Screw M8x25 Screw M8x35 Screw M4x16 Screw M4x16 Screw Zinc gasket Hinge Yellow Stick pastern Black gasket H1 Rubber Strip H2 R ubber Strip H3 R ubber Strip H4 Rubber Strip H5 Rubber Strip 308A Rubber Strip 308c Rubber Strip A-1 Glass A-2 Glass A-3 Glass...
- Page 5 Tray The chief aluminum pillar G top aluminum...
- Page 6 install step Picture 1. Open the packing, put the tray to the appropriate place. Use the Level Ruler Test all direction is Balance. adjust the screw which in foot to the tub until level, and then screw down the nut. the drainer Pipe must put into the Drain Hole at least 50mm , fixed and drain well.
- Page 7 M4x16 Screw 1.Install the Fixed Glass (1) Fixed the Glass Hinge on the tray with M4x16 Screw . Locked (As Picteure 3) Picture E2(90°Aluminum) E1(1 15°Aluminum) Picture (2) Place The Foam to protect the Glass on the ° Ground . Put the 90 Aluminum Column on the 2 .
- Page 8 E1(115°Aluminum) Picture (3) Do as picture 4 , Put the 115°Aluminum 2.5mm Column on the Foam and Full Insert A2 , A3Glass into The Aluminum. (Note: The Glass Should Full Insert into the Aluminum. And Up Direction as the picture show ) (As Picture 5 ) (4) On the Back side of The Big Aluminum Column .
- Page 9 (5) Insert The H5 Rubber Strip into the Glass Which install in Picture 4, Then Put on The Tray. (As Picture 7) Picture (6) Let the A2 Glass Sticked with the Back side of The Big Aluminum Column edge. Then Locked the 4 Hinge With Screw . (As Picture 8) Picture...
- Page 10 (7) Insert The H5 Rubber Strip into the Glass Which install in Picture 5, Then Put on The Tray and Let the A2 Glass Sticked with the Back side of The Big Aluminum Column edge. Then Locked the 4 Hinge With Screw .
- Page 11 4 . Install The Head Aluminum Head Aluminum Match the Big Aluminum Column 'S Hole exactly ,Then Locked with zinc Gasket . Then Install the Two Pole as picture show . The Head Shower Pipe should Through The Hole and connect with the Head Shower with Gasket ( as picute .
- Page 12 5. Install The Top Conver A. Use the Level Ruler Test The Head Aluminum is Balance . Then Sitk One or Two Layer of Yellow Stick pastern as picture show. Make Sure There is Level Balance with the Glass . (As Picture 12) Picture B .Install The Top Conver match The Hole with Aluminum, Then Fixed with...
- Page 13 6.Install the Glass Door 1. Install the Glass Hinge First . Then fixed the Glass Door with the Hinge as picture 14. Rubber Strip 308A Rubber Strip 308C Picture Then Insert the Rubber Strip. 2. If the Magic Rubber Strip not sealling well .you could Adjust the Hinge of the Glass fit the Door Glass Balance .
- Page 14 7. Install The Accessory As Picture 15 Show M4 x16 Screw Picture 15 8. Connect the pipe A.connect the Steam Generator to Steam Box with Pipe (Note: All Pipe must with Plastic Pad.) B.connect the Steam Generator water outlet of tub Drainer on the bottom . C.connect the top shower , Handle Shower pipe in back side .
- Page 15 S198E control system operation Layout of S198E wire connection AC240V/60Hz 3. 5KW 14. 5A IPX4 S198E Steam Generator AC220V/ 3000W...
- Page 16 14 14 -----Next song -----LCD screen -----Power switch -----Last song - - - - - Shuttle switch -----Volume control...
- Page 17 14 14 -----2 modes of shortcut key -----Radio frequency indication -----Overhead spray -----Steam -----Keyboard lock -----Steam temperature setting -----Steaming time setting -----Upper spray -----Spray -----Middle spray 14 14 -----Lighting -----Lower spray -----Fan -----Cleaning -----Telephone answer -----FM -----Sterilization -----Channel search -----Turning -----Temperature indication -----Bluetooth -----Display of volume,minute,channel...
- Page 18 14 14 -----Lighting function key -----Channel storage function key -----Side spray function key -----Setting function key -----Steam function key -----Switch function key -----Fan function key -----Bluetooth function key -----Ozone function key -----Turning/song switch function key 14 14 -----Overhead spray function key -----Tune rising function key -----Radion function key -----Tune falling function key...
- Page 19 I.notes： 1.this panel is equipped with capacitive touch buttons,make sure to advod direct Contact with shower head while selecting installation loaction of the panel.Otherwise it would lead to maloperation or trigger the panel lock. 2.all function keys are located at the most conveniet locations。 3.the panel would give a sound once being energized。...
- Page 20 , press the shuttle switch or momently press on remote control to enter the temperature setting mode. As the icon ℃ flashes, rotate the shuttle switch to adjust the temperature or press on the remote control to raise the temperature or to lower the temperature.
- Page 21 function. Then the LCD would show channel and the icon “Frequency” would flash. Rotate the shuttle switch to turn on incremental tuner or momently press on the remote control to switch channels. The step length is 0.1MHz. In radio mode, touch to start automatic upward, downward search;...
- Page 22 9. Volume control In the radio and Bluetooth mode, touch on the panel to enter the volume adjustment mode. Icon would flash on the LCD screen. Rotate the shuttle switch to adjust volume. Wait for 3 seconds or press the shuttle switch to exit from the volume adjustment mode. In radio or Bluetooth mode, when the remote control is used to adjust the volume, momently press on the remote control to enter volume adjustment mode if steam machine...
- Page 23 IV、Fault code: Display on Cause Fault Name Description nixie tube A. General water valve is After the steam function is turned on, the not open; system will open water inlet after it detects Overtime water shortage of water. If the system shows no B.
