The Setra In-Line Display (SID) can be used with most transducers (voltage output) or transmitters
(current output) to provide a visual indication of the measurand experienced by the transducer or transmit-
ter. Installation requires wire hookup, configuration/jumper installation and zero and span adjustment.
Wire Hookup
Voltage 4-Wire Hookup (Figure 1)
Remove the back cover. Two wires must be
connected to each of the four inner terminals,
one wire going to the transducer and the other
going to the measuring system. (Note: the two
wires should be the same gauge.) Cable strain
relief is provided through two holes, one on
each side of the SID.
Voltage 3-Wire Hookup (Figure 2)
3-wire hookup is similar to 4-wire
except that -V EXC and -OUT must
be connected together at the SID
connector.
Current Output Transmitter
(Figure 3)
To use SID with a current output
transmitter, simply connect SID in
series between the transmitter and
loop supply as in Figure 3.
Note: There is a 5.9 volt maximum voltage drop across the SID unit when used in a 4-20 mA current
loop. You may need to increase the loop supply voltage.
Setra In-Line Display (SID)
Model 880 6P
Installation and Operating Instructions

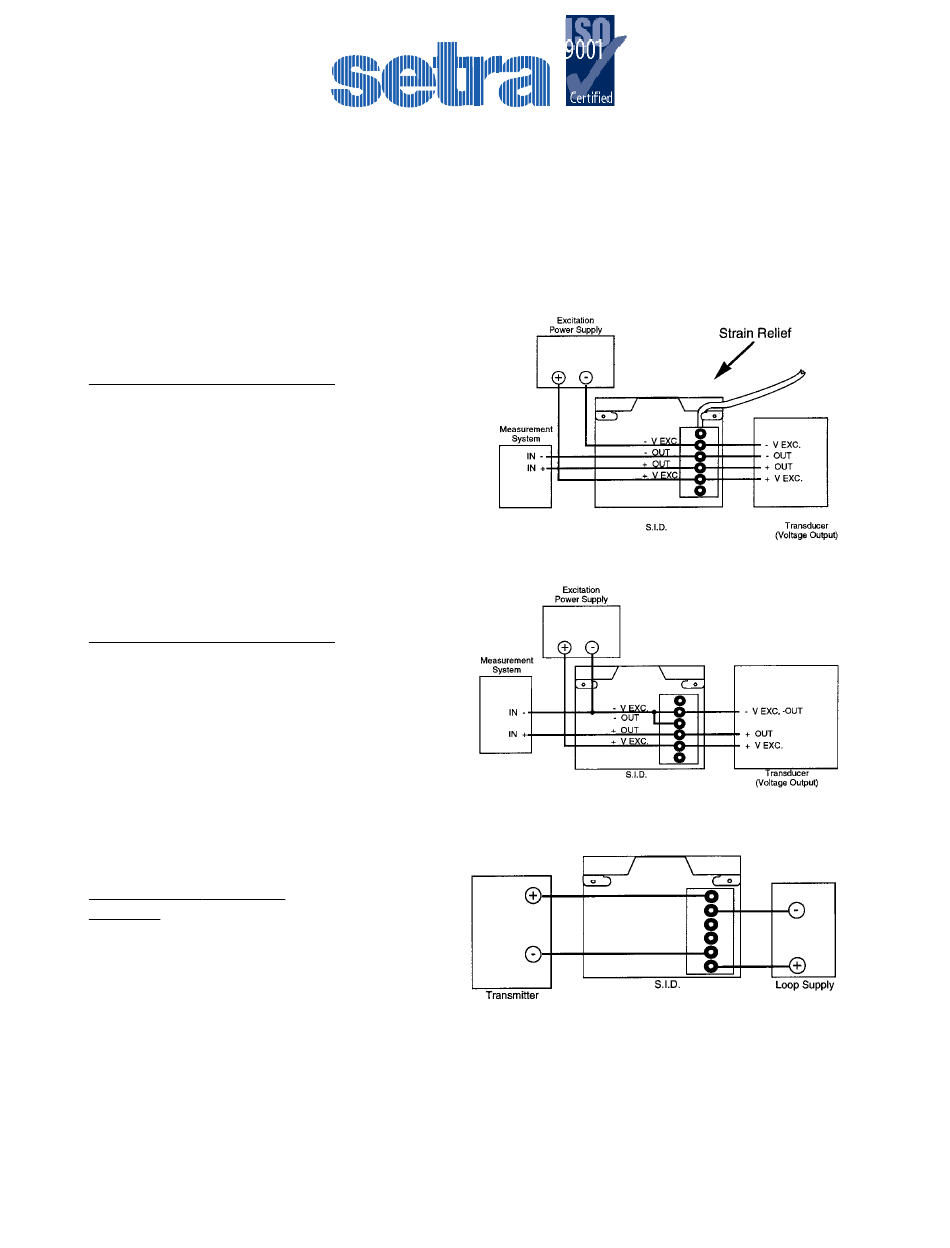

Figure 1
Figure 2
Figure 3
