NEC MultiSync LT140 Installation Data page 4

Visual Systems Division
Technical Bulletin
MultiSync LT140 Installation Data
Desktop and Ceiling Mount
Cabinet Dimensions

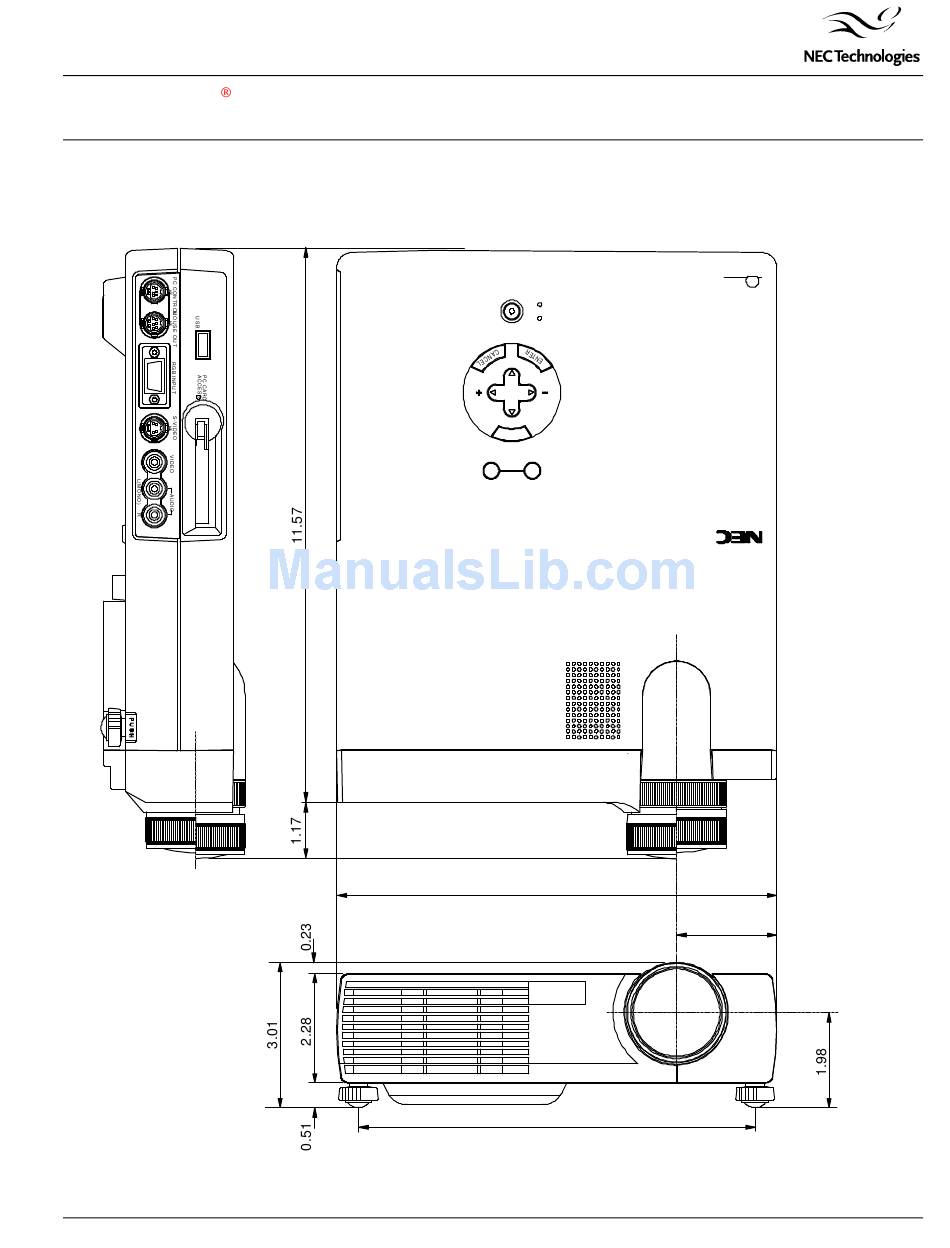

The following drawings show the cabinet dimensions for the MultiSync LT140.
Dimensions are in inches. For millimeters multiply by 25.4.
‚`•@‚s‚d‚w‚`‚r•@‚h‚m‚r‚s‚q‚t‚l‚d‚m‚s‚r•@‚s‚d‚b‚g‚m‚n‚k‚n‚f‚x
‚c‚k‚o
TM
POWER
ON/OFF
STATUS
SELECT
MENU
AUTO SOURCE
9.25
2.1
MultiSync
LT
140
Lens Center
8.34
