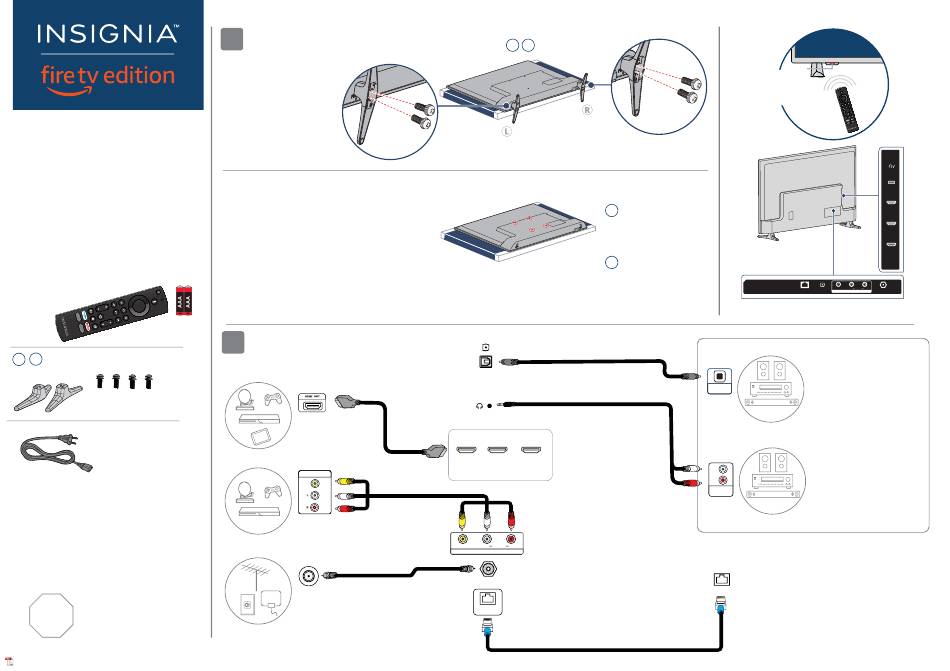

QUICK SETUP GUIDE
50"/55"
LED TV
4K ULTRA HD
NS-50F301NA22
NS-55F301NA22
INCLUDED ACCESSORIES
Voice Remote with Alexa
+ +
and two AAA batteries
50" 55"
TV stands
M4 screws
(20 mm length) (4pcs.)
Power cord
STOP
Before using your new product, please
read these instructions to prevent any
damage.
Do not plug your power cord in until all
other devices have been connected.
INSTALLING THE STANDS OR A WALL MOUNT
1
Place your TV face-down on a cushioned, clean surface.
STANDS
1 Align the TV stand screw holes
with the holes on your
TV's bottom.
2 Use a Phillips screwdriver and
two provided screws to secure
each stand to your TV.
M4 × 20 mm screws
WALL MOUNT
Before you mount your TV, make sure that:
• You remove the stands.
• The wall-mount bracket supports the weight of your TV.
See the instructions that came with your wall mount
for more information about how to correctly mount your TV.
WARNING: Your TV has four VESA mounting holes on the back.
You must secure a wall-mount bracket to all four holes.
If you do not use all four holes, your TV may fall and cause
property damage or personal injury.
Note: Wall-mount screws are not included.
MAKING CONNECTIONS
2
HDMI
(best video quality)
Note: You can use the
HDMI 1 (ARC) jack to
connect a digital
audio system.
AV
(good video quality)
AUDIO/VIDEO OUT
Coaxial
(good video quality)
H D
H D
Connect an antenna to
access live over-the-air TV.
50" 55"
M4 x 20 mm screws
50" TV shown
VESA Mounting Pattern
50"
200 x 200 mm
Screws: type M6, 12 mm to
15 mm length depending
on the wall mount
50" TV shown
VESA Mounting Pattern
55"
200 x 200 mm
Screws: type M6, 12 mm to
14 mm length depending
on the wall mount
DIGITAL
OPTICAL
OUTPUT
AUDIO
OUT
HDMI1
HDMI2
HDMI3
(ARC)
HDMI OPTIONS
VIDEO
L
AUDIO
R
AV IN
ANT/CABLE
ETHERNET
FEATURES
Power/
Input button
Press to turn your TV on or off
manually.
When your TV is on, a short press
changes inputs and a long press
turns off your TV.
M4 × 20 mm screws
50" TV shown
DIGITAL OPTICAL
ETHERNET
OUTPUT
Note: Images do not necessarily represent the exact design
of your television.
DIGITAL
You can use the DIGITAL OPTICAL
OUTPUT jack or the HDMI 1 (ARC)
jack.
OPTICAL
Note: If you need to change the
AUDIO IN
digital audio format, go to the Home
SOUNDBAR
menu, select Settings, then select
Display & Sounds. Select Audio Output,
then select Digital Audio Format and
change the setting to PCM or Dolby
ANALOG
Digital.
L
R
AUDIO IN
SOUNDBAR
ETHERNET (optional)
Note: You can use a wired Ethernet connection to
access the internet instead of a WiFi connection.
ETHERNET
Plug an Ethernet cable into the ETHERNET jack on
your TV and your Ethernet connection.
Power indicator
Remote control sensor
AUDIO OUT
USB
HDMI1
(ARC)
HDMI2
HDMI3
VIDEO
L
AUDIO
R
ANT/CABLE
AV IN
AUDIO OPTIONS
