Summary of Contents for Doosl W13-M

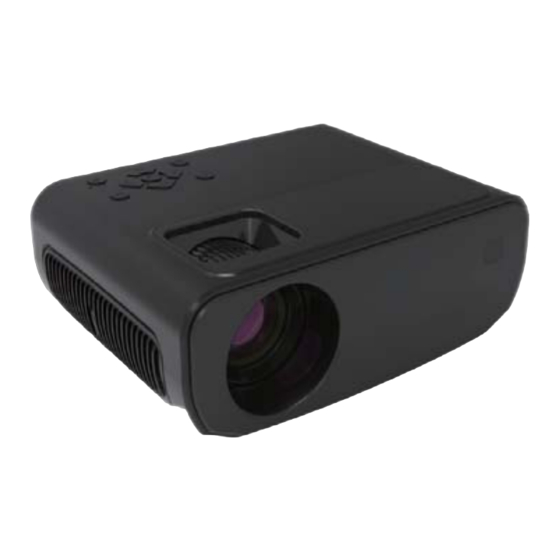

- Page 1 User Manual Doosl Mini Video Projector W13-M...
- Page 3 WARNINGS 1. Do not look directly into the projector light. 2. Don't touch the project lens. 3. Mains adapter is used as disconnect device and it should remain readily operable during ntended use. In order to discon- nect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.
-
Page 4: Product Overview
PRODUCT OVERVIEW Set Up On/of Arrow Keys Return Focusing Ring Model Keystone Correction... - Page 5 PRODUCT OVERVIEW DC Power Socket USB1 HDMI Port 3.5mm Headphone Jack...
-
Page 6: Remote Control
REMOTE CONTROL Power Mute Play/Pause Forward Backward Move Right Move Up Move Down Move Left Input Source Menu Return Volume Down Volume Up STARTING PROJECTOR 1. Connect the projector to the DC power adapter,then turn on the power supply of the adapter, the power indicator light of the body will be on, and the projector will enter the standby state. -
Page 7: Keystone Correction
Focusing Ring Keystone Correction Keystone Correction In different angel you put the projector, the projection will Deformation like a trapezoid,use the keystone correction to make it correctly. CONNECTING Press " " of the remote control, enter signal source menu. Use the arrow keys "... - Page 8 Password Enter the password to connect. Connected Manual IP Settings The name of your home wireless W13-M network will appear in the upper right coner of the projectionscreen after the projector connects with it Network successfully. If not, please check...
- Page 9 W13-M Network Airpaly Miracast settings If you use an IOS device, please choose "Airplay ", and then wait for the device connection. W13-M Airpaly If you use an Android device, Network Miracast settings please choose "Miracast ", and wait for the device...
- Page 10 W13-M Make sure that your IOS/Android device connect with the same network your projector. For IOS device, open Control Center and tap Screen Mirroring For Android device, slide the phone interface from the up to bottom to enter the control center, then click on "WirelessProjection"...
- Page 11 Miracast (Android) Operation on the IOS/ Android device connects with same WIFI>Control Center>Screen Mirroing >Waiting connection> Select W13-M What devices can use the wireless connection? 1. IOS devices are only suitable for iPhone, and Ipad; 2. Android devices are only suitable for smartphones, and tablets;...
- Page 12 2. Connect HDMI Devices Using the HDMI cable in the package to connect with projector. (HDMI connection is recommended for projecting movies, videos, and other files which need to be HD.) Turn on your laptop and the projector. Connect the HDMI cable to your laptop's HDMI port. Connect the other end to any available HDMI port on your projector.
-
Page 13: For Android Devices
The user of windows 7 or over windows 7. Simply press the +P, select “Duplicate” to connect. If the operation above is invalid, Please update the computer graphics driver. 3. Connect Smartphone For IOS devices By using a lightning to HDMI/USB adapter(lighting to HDMI cable adapter), you can connect your iOS device to this projector easily(NOT INCLUDE ADAPTER) For Android devices... - Page 14 Note: 1. Please kindly note that the adapter was not included in the package. 2. Please also make sure to choose HDMI as the input source after connection. 3. Because there are different versions of Micro USB/ Type C / Lighting to HDMI adapter cable and different models of smartphones, the Micro USB/Type C / Lighting to HDMI adapter cable may not be compatible with your smartphone, and there is a problem that it cannot be...
- Page 15 4. Connect the USB Drive Different from other devices, when you connect a USB drive, directly select the file you want to play on the main menu. To play a video stored in a USB drive, select "Movie" on the main menu, and press the "OK". To play a picture, music stored in a USB drive, select "Photo"/ "Music"...
-
Page 16: Projector Setting
PROJECTOR SETTING 1.PROJECTION SETTINGS 1. Click "Menu" of the projector remote control or " " of the projector, enter the setting menu. 2. "PICTURE"/" SOUND"/" TIME"/" OPTION" can be set manually. After you select the properties (PICTURE/- SOUND/TIME/OPTION) you want to set, please press "<" or ">"on the operation panel to select the setting range of the properties. -
Page 17: Picture Menu
2. OPTIONS RELATED TO “PICTURE” ARE SET ON THIS SCREEN PICTURE MENU MODE FUNCTION Picture Mode Standard, Soft, User, Vivid Switch among the image mode Medium, Warm, User, Cool Switch among the color temperature mode Color Temperature Aspect Ratio Set up the aspect ratio of the image Auto/ 4:3/ 16:9 Set up the intensity of noise reduction Noise Reduction... - Page 18 3.OPTIONS RELATED TO "SOUND" ARE SET ON THIS SCREEN PICTURE MENU MODE FUNCTION User, Standard, Music, Sound Mode Set up the sound mode Movie, Sports Balance the sound ofthe left Balance -50~50 and right channel of the speaker Auto Volume On, Off ntelligently adjust volume...
- Page 19 4. OPTIONS RELATED TO "TIME" ARE SET ON THIS SCREEN Shut off the projector after a set Sleep Timer Off/10min/20/min/30/min,etc amount of time 5. OPTIONS RELATED TO "OPTION" ARE SET ONTHIS SCREEN...
-
Page 20: Option Menu
OPTION MENU MODE FUNCTION English, France, Italian, SSet up the language OSD Language Spanish, etc. displayed in the operation Restore Factory Default Reset the projector Adjust the transparency Blending Off, Low, Middle, High of menu interface Adjust the duration of OSD Duration Off, 5Sec, 10Sec, 15Sec keeping the menu interface... - Page 21 2. How can I do if the image is up side down? You can use the remote control to find the "FLIP" key, one-click fiip; Or enter Menu-Picture-Projection Direction to fiip the projection image accordingly. 3. How should I do if there are small dots on display? It may be caused during installing or shipping, please contact Seller Support to get the video about how to clean it.
- Page 22 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
