HITEC AD350 Instruction Manual

Instruction Manual
Introduction

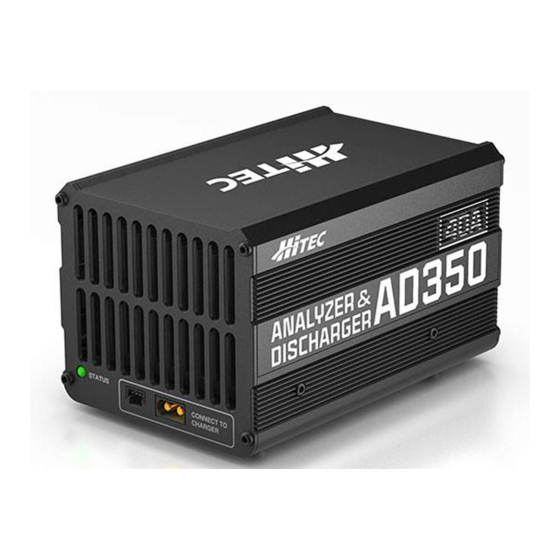

Thanks for choosing the Hitec AD350 Analyzer & Discharger.
The AD350 Discharger supports most RC batteries and works with Hitec's RDX2 1000* Charger
with a discharge current of up to 40A and discharge power of 350W.
* Hitec anticipates this Discharger will work with other Hitec charger models in the future.
BEFORE YOU BEGIN CONNECTING YOUR BATTERY, MAKE SURE YOU HAVE
READ AND UNDERSTOOD ALL OF THE WARNINGS AND SAFETY INFORMATION
CONTAINED IN THIS MANUAL.
Warning
Discharge Operation Instructions

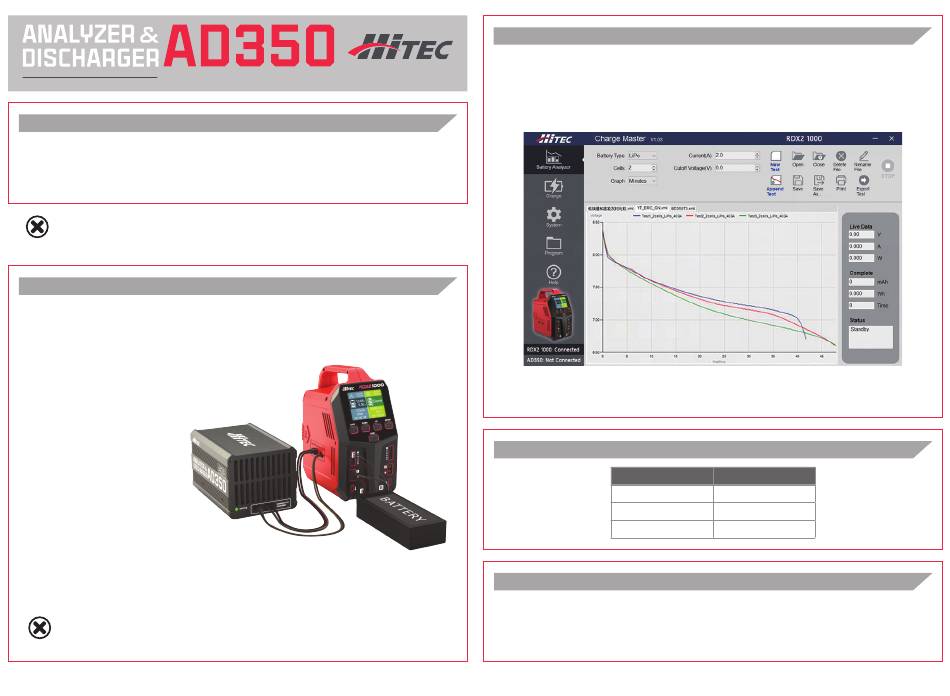

1. Connect the power supply to the RDX2 1000 Charger. The main menu screen will
automatically appear.
2. Connect the AD350 Discharger to the RDX2 1000 Charger.
3. Connect the battery to Port A or through the Parallel
connection.
4. Select DISCHARGE to
discharge only. Set the
voltage cut-off in CONDITION
and amperage in CURRENT.
5. To Cycle: Select Balance or
Parallel charging, set Cycle
to 1 or more and select
the Charge and Discharge
Amperage. (20A max in
Balance/35A max in Parallel).
Notice: The Cycle function will always discharge first and then charge so the pack will be ready to use
when complete. (This is typically used for Stock Racing to lower the internal resistance of the pack to
increase power.)
PLEASE BE AWARE THAT HIGH AMPERAGE CHARGING AND DISCHARGING
CAN REDUCE THE LIFE OF THE BATTERY.
Warning
Part No. 44405
-1-
Analyze via the Charge Master PC Software
The AD350 is more than a simple battery discharger. It is a powerful test instrument that
measures, graphs and compares the parameters of various batteries. It allows for the precise
measuring of battery capacity and performance.
No more guesswork when choosing the best battery for your RC activities.
Notice:
As the time of release, (01/2023) the AD350 Discharger only works with the Hitec RDX2 1000 Charger.
Explanation of LED Status
LED
Solid Green
Solid Red
Flashing Red
Specifications
Working Voltage: DC 5V
Discharge Power: 350W
Discharge Current 0.1-40A
Over Temp. Protection > 95º
Status
Standby
Discharging
Error
Working Temp.: 32º ~ 104ºF
Working Humidity: 0% ~ 75%
Size (L x W x H) 6.2 x 4.1 x 3.7 in.
Net Weight: 43.2 oz.
