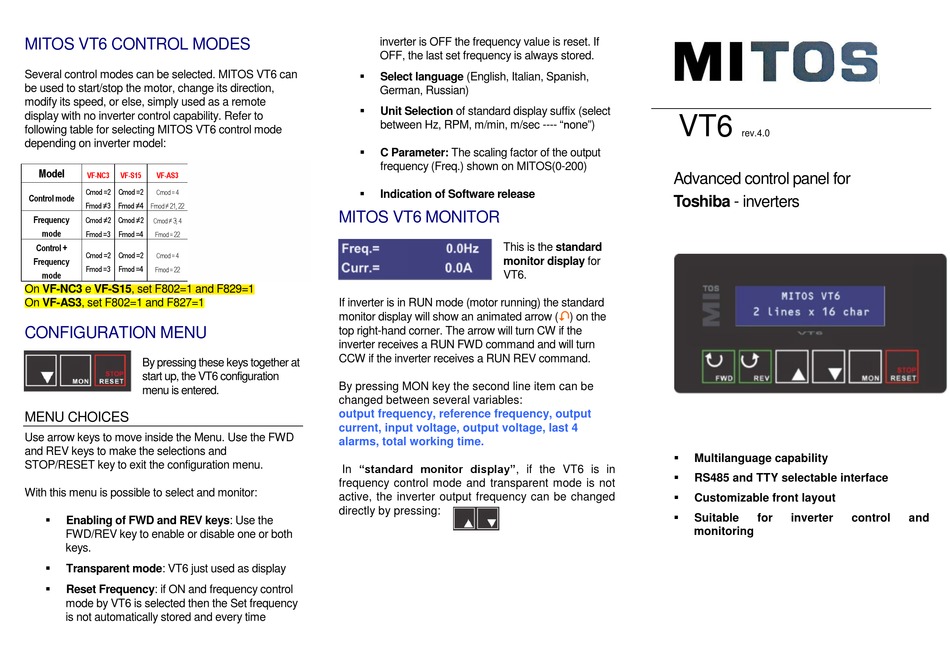

MITOS VT6 Quick Start Manual

MITOS VT6 CONTROL MODES
Several control modes can be selected. MITOS VT6 can
be used to start/stop the motor, change its direction,
modify its speed, or else, simply used as a remote
display with no inverter control capability. Refer to
following table for selecting MITOS VT6 control mode
depending on inverter model:
Model
VF-NC3 VF-S15 VF-AS3
Cmod =2 Cmod =2
Cmod = 4
Control mode
Fmod ≠3 Fmod ≠4
Fmod ≠ 21, 22
Frequency
Cmod ≠2 Cmod ≠2
Cmod ≠ 3, 4
mode
Fmod =3 Fmod =4
Fmod = 22
Control +
Cmod =2 Cmod =2
Cmod = 4
Frequency
Fmod =3 Fmod =4
Fmod = 22
mode
On VF-NC3 e VF-S15, set F802=1 and F829=1
On VF-AS3, set F802=1 and F827=1
CONFIGURATION MENU
By pressing these keys together at
start up, the VT6 configuration
menu is entered.
MENU CHOICES
Use arrow keys to move inside the Menu. Use the FWD
and REV keys to make the selections and
STOP/RESET key to exit the configuration menu.
With this menu is possible to select and monitor:
▪
Enabling of FWD and REV keys: Use the
FWD/REV key to enable or disable one or both
keys.
▪
Transparent mode: VT6 just used as display
▪
Reset Frequency: if ON and frequency control
mode by VT6 is selected then the Set frequency
is not automatically stored and every time
inverter is OFF the frequency value is reset. If
OFF, the last set frequency is always stored.
▪
Select language (English, Italian, Spanish,
German, Russian)
▪
Unit Selection of standard display suffix (select
between Hz, RPM, m/min, m/sec ---- "none")
▪
C Parameter: The scaling factor of the output
frequency (Freq.) shown on MITOS(0-200)
▪
Indication of Software release
MITOS VT6 MONITOR
This is the standard
monitor display for
VT6.
If inverter is in RUN mode (motor running) the standard
monitor display will show an animated arrow (
top right-hand corner. The arrow will turn CW if the
inverter receives a RUN FWD command and will turn
CCW if the inverter receives a RUN REV command.
By pressing MON key the second line item can be
changed between several variables:
output frequency, reference frequency, output
current, input voltage, output voltage, last 4
alarms, total working time.
In "standard monitor display", if the VT6 is in
frequency control mode and transparent mode is not
active, the inverter output frequency can be changed
directly by pressing:

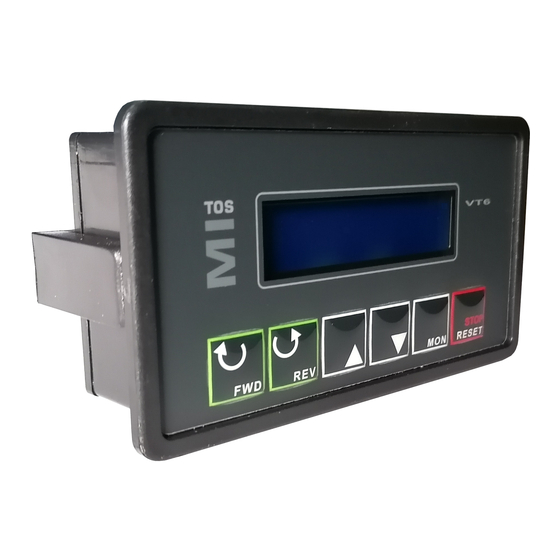

VT6
Advanced control panel for
Toshiba - inverters

) on the
▪
Multilanguage capability
▪
RS485 and TTY selectable interface
▪
Customizable front layout
▪
Suitable
monitoring
rev.4.0
for inverter control a nd
