PROTECTGLOBAL.COM
Manual for installation and use
Version 1.3
Item no .: 21681_0001IPC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPCard and is the answer not in the manual?

Questions and answers

Summary of Contents for Protect IPCard

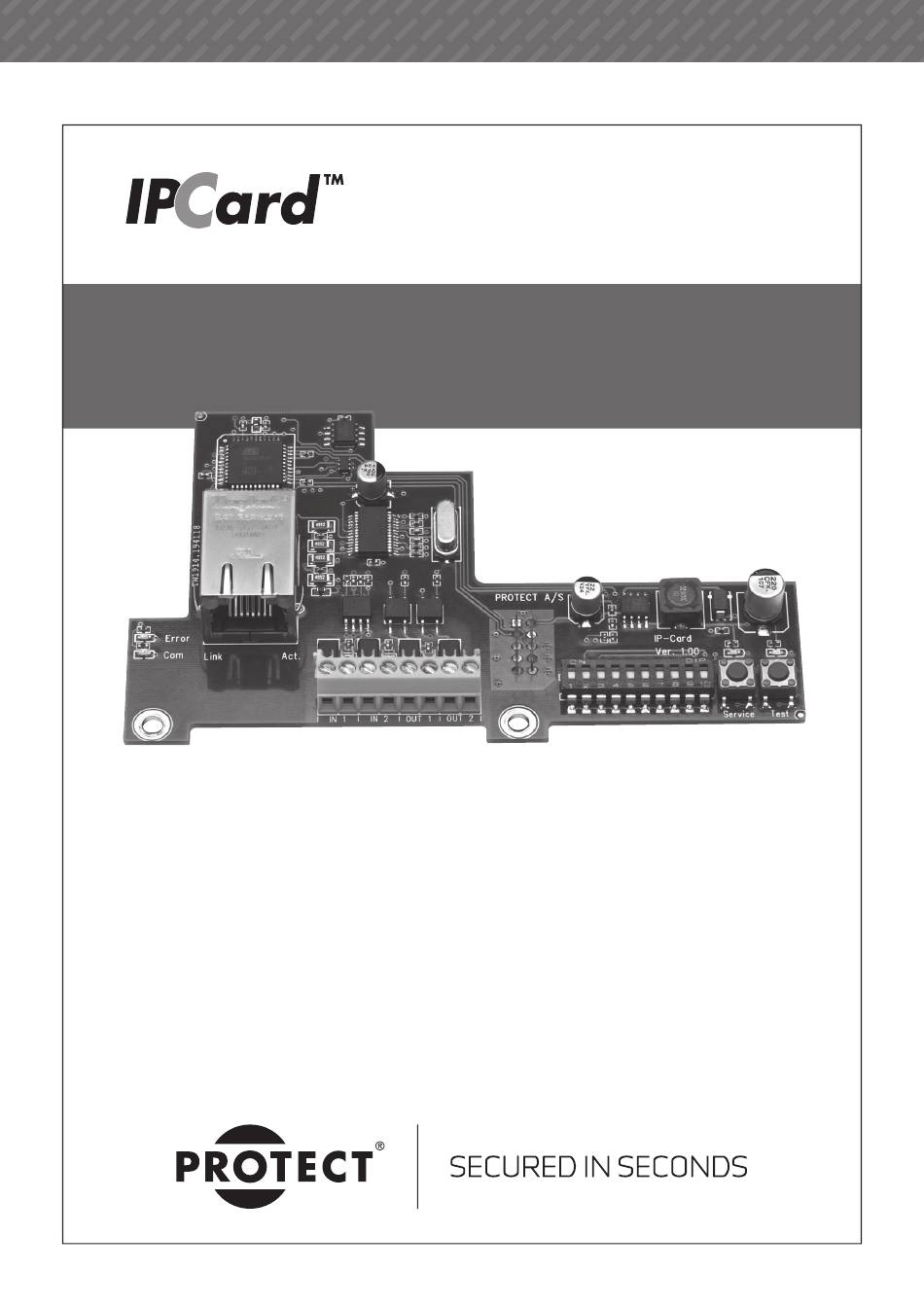

  • Page 1 PROTECTGLOBAL.COM Manual for installation and use Version 1.3 Item no .: 21681_0001IPC...

  • Page 2: Table Of Contents

    4 .1 . Prepare the main PCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 4 .2 . Make sure to install the IPCard securely using supplied washers, spacers and screws .

  • Page 3: Introduction To Protect Ipcard

    1. Introduction to PROTECT IPCard This refers to PROTECT IPCard hardware version 1 .1 and software version 1 .02 . The IPCard in combination with PROTECT IntelliSuite adds the following func- tio nality to the Fog Cannon • General networking capability • Remote real time monitoring of faults, fluid level, battery state etc.

  • Page 4: Networking Security And Safety

    PROTECT IPCard ™ 1.2. Networking security and safety The communication protocol used between the IPCard and IntelliSuite is de- signed for use on secure networks only. Access is controlled by use of a 10 digit password . No form of encryption is used on this specific communication protocol.

  • Page 5: Installation And Use Of Intellisuite

    PROTECT IPCard ™ 2. Installation and use of IntelliSuite Before you can proceed with the installation of the IPCard you will need to install the latest version of IntelliSuite IMPORTANT NOTICE! IntelliSuite versions before 2.40.3 will not support the IPCard versions before 2.40.3 will not support the IPCard...

  • Page 6: Mechanical Installation

    Bad alignment Correct alignment The connector on the IPCard MUST align properly with the connector on the main board, and mounting holes in the IPCard must align with spacers before attempting to install the screws .

  • Page 7: Cabling

    When installing the network cable, please make sure to use the correct type of RJ45 connector . Some prefabricated cables come with a strain relief that extends behind the con- nector. This type of connector (as shown on the left) will not fit inside the cabinet of the PROTECT 600i fog machine since it will conflict with the top cover of the Fog Cannon . Please use RJ45 connectors as shown to the right .

  • Page 8: Technical Data

    PROTECT IPCard ™ 5. Technical data Inputs: Type Optically isolated Bidirectional DC input Activation level (guaranteed ON) 7 – 30VDC (Max) Not activated (guaranteed OFF) 0 – 1VDC Current 2mA@12V, 4mA@24V Outputs: Type Optically isolated Bidirectional output Overload protected solid state relay...
  • Page 9 LED’s on RJ45 network connector: Green Connected to network Yellow Network traffic indicator Please note that dipswitch settings, on the IPCard , may be manipulated during normal operation . This will however reset program flow on the IPCard back to its initial stage for that particular setting .

  • Page 10: Setting Up The Ipcard

    PROTECT IPCard ™ 6. Setting up the IPCard Before the IPCard can be used for monitoring and controlling the Fog Cannon the IPCard must be set up for the specific use. Start up the Fog Cannon with the installed IPCard , connect it to your computer using an IntelliConnector cable .

  • Page 11: Network Settings

    PROTECT IPCard ™ Then use the top menu [Commands] to select different options for things to do on the IPCard while connec ted over the service interface . 6.1. Network settings Under the menu item [IPCard Network Setup] you will be able to setup all basic networking parameters and get information on MAC-address, current IP-address etc .
  • Page 12 Fog Cannon over network . Default password is “1234000000” . In the menu item [IPCard Location ID setup] you can type in a text identifying this particular Fog Cannon . The Location ID will be visible in the...

  • Page 13: Using Intellisuite

    ™ 7. Using IntelliSuite for monitoring and controlling the Fog Cannon After correct setup of the IPCard you will be able to connect to the Fog Cannon over network by using IntelliSuite Connect your computer to the network and select...
  • Page 14 . You may edit or copy any endpoint in the list by right clicking it and selecting the action you want . You may also password protect you endpoint list by changing the master password. This will encrypt any information specified in the endpoint list. If you have specified a password to be used, you will be asked to type in your...
  • Page 15 Blocking facility, to prevent unintentional fog release during service of the alarm system attached to the Fog Cannon Select from the top menu [Commands], [IPCard Change Blocking Mode] (Blocking is a feature on the IPCard , not the Fog Cannon...

  • Page 16: Options

    IntelliSuite software and stay in contact with your local PROTECT distributor for up to date information .

  • Page 17: Operational Modes Of The Ipcard

    Software requirements Fog Cannon : Software version 2 .70 or higher . Software requirements IPCard : Software version 1 .02 or higher . Device requirements: This program will run on any type of PROTECT Fog Cannon ® Dipswitch settings: Inputs functionality:...
  • Page 18 - If service disable functionality is requested, for servicing attached alarm system, please use the Service button on the IPCard , or the remote Blocking over network instead. It was designed specifically with this pur pose in mind •...

  • Page 19: Atm Protection Mode On Protect 600I

    : Software version 2 .70 or higher . Software requirements IPCard : Software version 1 .02 or higher . Device requirements: This program is specially designed for PROTECT 600i ONLY! Attempts to use this feature on other machines may result in unpredicted behavior .
  • Page 20 PROTECT IPCard ™ Possible settings are: Dip setting Shot type Fog volume Dip 7 & 8 5 S turbo 85 m 10 S turbo 170 m 20 S normal 290 m 40 S normal 540 m Retrigger blocking is for this input limited to only 5 seconds, following any other fog release .
  • Page 21 The third trigger method is controlled entirely by inputs and settings on the main- board like in any other fog protection application without the use of an IPCard Retrigger blocking is for this input limited to 30 se conds, following any fog release .

  • Page 22: Atm Protection Mode On Protect 1100I

    Software requirements Fog Cannon : Software version 2 .70 or higher . Software requirements IPCard: Software version 1 .02 or higher . Device requirements: This program is specially designed for PROTECT 1100i Attempts to use this feature on other machines may result in unpredicted behavior .
  • Page 23 PROTECT IPCard ™ Possible settings are: Dip setting Shot type Fog volume* Dip 7 & 8 250 m 15 S 500 m 20 S 687 m 30 S 875 m *Please note that numbers on fog settings and fog volumes may differ slightly on low voltage models (115V/127V) .
  • Page 24 The third trigger method is controlled entirely, by inputs and settings on the main- board, like in any other fog protection application without the use of an IPCard Retrigger blocking is for this input limited to 30 se conds, following any fog release .

  • Page 25: Atm Protection Mode On Protect 2200I

    : Software version 2 .91 or higher . Software requirements IPCard : Software version 1 .04 or higher . Device requirements: This program is specially designed for PROTECT 2200i Attempts to use this feature on other machines may result in unpredicted behavior .
  • Page 26 PROTECT IPCard ™ Possible settings are: Dip setting Shot type Fog volume* Dip 7 & 8 225 m 10 S 450 m 20 S 900 m 40 S 1800 m *Please note that numbers on fog settings and fog volumes may differ slightly on low voltage models (115V/127V) .
  • Page 27 The third trigger method is controlled entirely, by inputs and settings on the main- board, like in any other fog protection application without the use of an IPCard Retrigger blocking is for this input limited to 30 se conds, following any fog release .
  • Page 28 PROTECTGLOBAL.COM PROTECT IPCard ™ PROTECT A/S is the world’s largest supplier and the only producer of Fog Cannon Scandinavia . PROTECT is represented worldwide in 50 countries . PROTECT A/S · Hasselager Centervej 5 · DK-8260 Viby J Tel .: (+45) 86 72 18 81 · Fax: (+45) 86 72 18 82 · Mail: info@protectglobal .com...
