TFM VT-222 Vortex Flowmeter User Manual

TFM VT-222 Multi Variable Vortex Flow Meter

Goes with

ModBus

QUICK User Manual

Take 5, Inc.

1335 Dayton Street Unit A

Salinas, CA 93901

Dave@TacticalFlowMeter.com

Call 831-244-8080

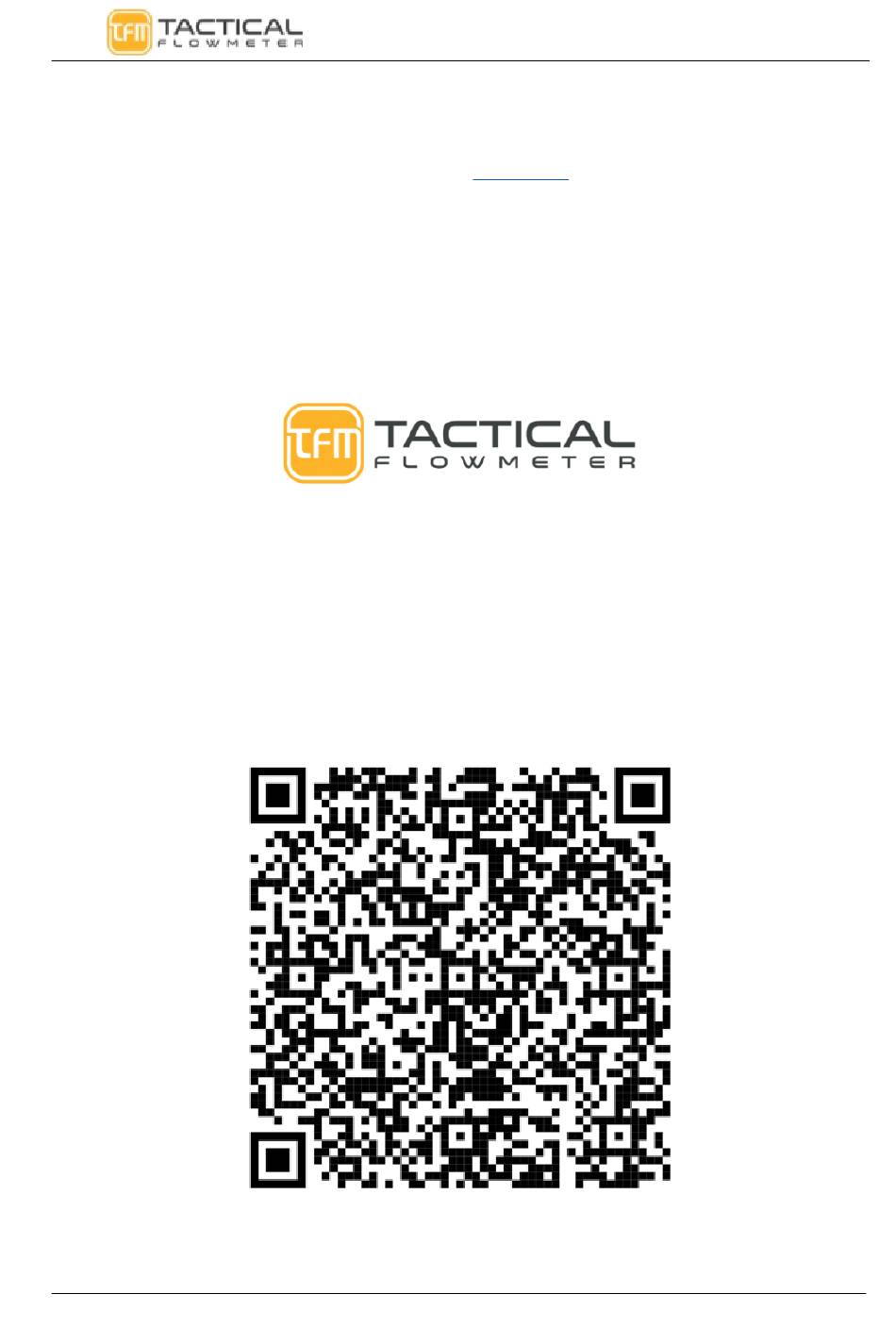

QR Code for Website with Videos. Open Video tab and watch the first video for

simple user configuration instructions

TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 1 of 30

Table of Contents

Need help?

Do you have a question about the TFM VT-222 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tactical TFM VT-222

Page 1 1335 Dayton Street Unit A Salinas, CA 93901 Dave@TacticalFlowMeter.com Call 831-244-8080 QR Code for Website with Videos. Open Video tab and watch the first video for simple user configuration instructions TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 1 of 30...
Page 2: Table Of Contents
1.1 Serial Communication Parameters 1.3 Communication Interface Functions Format 1.3.2 Function 04(Read Input Register) example 1.3.3 Function Code 16(Write Holding Registers) example 2 Register Description 2.1 Input Registers Table (Variables) TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 2 of 30...
Page 3: Hardware
Terminal Board Wiring The terminal board is used for connection to the external power supply, output pulse, the external pressure sensor and temperature sensor. The following are common wiring methods. TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 3 of 30...
Page 4: 4-20Ma Output Hart External Pressure
The 2-Pin green XT terminal is used for connecting the vortex piezo sensor that has no polarity. Note: The main circuit board must be properly safety grounded according to NEMA safety standards TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 4 of 30...
Page 5: Pressure Sensor
0.3 mA. As long as the sensor output does not exceed 50mV@0.3mA, you may use an external sensor of your choice. Socket XF3 defined as follows: Temperature Sensor Socket XF5 supports Pt1000 and Pt100, two-wire connection. TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 5 of 30...
Page 6: Vortex Dimensions
The LCD display features a 128 x 64 dot matrix full graphics display, allowing for convenient display modes to suit specific needs. The instrument supports two display modes： TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 6 of 30...
Page 7: Three-Line Display Mode
Note this meter can accurately indicate the DENSITY! Two-Line Display: Bar Graph 0- 100% Full Scale Line 1 displays the Instantaneous flow. Line 2 displays the totalized flow. TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 7 of 30...
Page 8: Local Adjustment:.. Probably Do Not Need This Below
TFM VT-222 Vortex Flowmeter User Manual Local Adjustment:.. Probably do not need this below…. TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 8 of 30...
Page 9: Data Entry
Short press D-Key or S-Key to scroll backward or forward in the menu. ● Long press D-Key to access, and then save, the parameter. Refer to the key names below.: TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 9 of 30...
Page 10 TFM VT-222 Vortex Flowmeter User Manual TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 10 of 30...
Page 11: Pipe Diameter
The backlight flashes to alert the operator that it is in the test mode at this time. If there is no new key operation within 10 minutes, it will automatically exit. TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 11 of 30...
Page 12: Loop Current Calibration
When the instantaneous flow unit is set, the cumulative flow unit is also automatically determined. The corresponding relationship table is below: Instantaneous flow unit Corresponding total flow unit /h，Nm /m，Nm /d，m /h，m /m，m l/h，l/m，l/s Scf/s，Scf/m，Scf/h， cf/s，cf/m，cf/h， USG/s，USG /m，USG /h， UKG/s，UKG /m，UKG /h， bbl/h，bbl/d， TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 12 of 30...
Page 13: Basic Functions No Password Required
Liquid Qm：Liquid mass Gas Qv：Gas volume Gas Qm：Gas mass Steam Qv：Steam volume Steam(P/T)：Steam mass Sat_Steam(T) ： Saturated steam mass (temperature compensation) Sat_Steam(P) ： Saturated steam mass(pressure compensation) TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 13 of 30...
Page 14: Password Protected Functions
Input 00038, set menu,Steam Variables Input 00011, view menu,Version Input 00090, set menu ModBus settings Input 00111, set menu, preset total, set value Input 00721, set menu, temp. sensor trim TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 14 of 30...
Page 15 Output pulse Pulse Factor Output pulse direct Set the output pulse number corresponding 1 coefficient coefficient input „Pulse Factor Unit‟. Note:To output the original pulse, set TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 15 of 30...
Page 16 X1 and X2. CH_3 generally used for gas measurement, which corresponds to the configuration software, select X1, X2 and X3. TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 16 of 30...
Page 17 Version read only Firmware version. U8 maximum Max Frequency maximum read only The internal conversion frequency value frequency frequency corresponds to the “High Flow Limit” “High Flow Limit”/K-FACTOR*3.6 TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 17 of 30...
Page 18 Use standard resistance as input calibration calibration For example:2500 for Pt1000, or 250 for Pt100. pressure type Gas Pre. Type Gas pressure menu Select gauge/absolute pressure TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 18 of 30...
Page 19 Pre. Data Y1; value; pressure zero Pre. Data Y0[75] and Pre. Data Y1[76] are the value; input calibration values. Collected value of pressure full point; pressure full TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 19 of 30...
Page 20 Note 2: The test mode will only be executed after a new value must be entered, and the LCD backlight will flash to indicate in test mode. TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 20 of 30...
Page 21: Protocol Overview
8204 (0x200C in hexadecimal). Note: 100 is 42C80000 in IEEE 754 ABCD float Request frame: Address Function Code Register Address Register count CRC Check 0x01 0x03 0x20,0x0C 0x00,0x02 0x05,0xB0 The correct response frame： TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 21 of 30...
Page 22: Function 04(Read Input Register) Example
Signal Gain float AMP CHANNEL 1 Unknown 16412/x401C Signal Channel AMP CHANNEL 2 FOR LIQUID ANM CHANNEL 3 FOR GAS 16417/x4021 Current float 16419/x4023 Pressure float kPa Gage TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 22 of 30...
Page 23 {3, "Gas_QM Gas Mass"}, 8193/x2001 Flow Mode {4, "Steam_QV Steam Volume"}, {5,"Steam_PT Steam Pressure and Temperature Compensation "}, {6,"Steam_SAT_T Saturated Vapor (Temperature Compensation)"}, {7,"Steam_SAT_P Saturated Vapor (Pressure Compensation)"} TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 23 of 30...
Page 24 { 273/x0111, "Gas DN500"}, { 274/x0112, "Gas DN600"}, Maximum Signal 8196/x2004 Range: 0-1500 float Magnification 8198/x2006 Minimum Frequency float 8200/x2008 float Maximum Frequency 8202/x200A K-Factor Pulses/m3 float >0 Pulses/m3 TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 24 of 30...
Page 25 8220/x201C { 29 , "m3/d" }, Index Value { 19 , "m3/h" }, { 131 , "m3/min"}, { 28 ,"m3/s" }, { 138, "l/h" { 17, "l/min" }, TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 25 of 30...
Page 26 { 40, "USGal" }, Index { 42, "UKgal"}, { 46, "bbl"}, { 61, "kg" }, { 60, "g" }, { 62, "ton"}, { 63, "lb"}, { 253, "special"}, { 254, "special"}, TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 26 of 30...
Page 27 Correction factor 3 K-Factor User Trim: float 8242/x2032 Correction factor 4 K-Factor User Trim: float 8244/x2034 Correction factor 5 8246/x2036 Low Flow Cutoff % float 0 - 20% TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 27 of 30...
Page 28 { 3, "1200bps,8bits,1stop, No parity " }, { 4, "600bps,8bits,1stop, No parity " } Low Flow limit. 8266/x204A Low Flow Limit float ‘Low Flow Limit’ units are in m TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 28 of 30...
Page 29 High Trim: Input Calibration Value Temperature Sensor Units: ：Ohm 9228/x240C Trim: Input float Calibration Resistance Value Temperature Sensor Units: ：Ohm 9230/x240E High Trim: Input float Calibration Resistance Value TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 29 of 30...
Page 30 TFM VT-222 Vortex Flowmeter User Manual 9232/x2410 Pressure Cutoff float Unit: ：kPa 9234/x2412 Pressure Bias Value float Unit: ：kPa TFM VT-222 Vortex Flowmeter Quick Manual Rev 10f page 30 of 30...
