Specifications
Size: 72x70x42mm (2.75" x 2.75" x 1.7")
Weight: 133g (5 oz)
Interface: Bluetooth
Smart App: iOS & Android
App name: FX Radar
Measurement Tech: Doppler Radar
Velocity Range: < 335m/s (1099fps)
Power Source: 3x AAA Batteries
Mount: V-shaped mount (not in the picture) that allows you to mount the chrono to the
barrel.
1. OVERVIEW

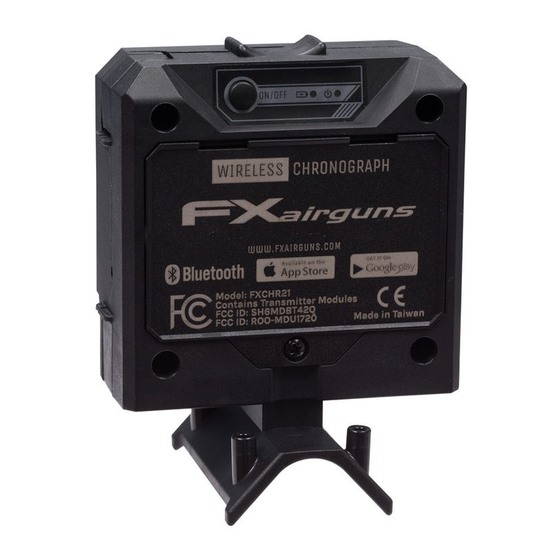

The power button for the chronograph is
located on the backside of the device.
Next to the power button, you will find
two LED lights. The red LED indicates
that the batteries should be changed
soon, and the green LED indicates that
the chronograph is turned on.
To turn on the chronograph, tap the
power button. To turn it off, press and
hold the power button. The chronograph
will automatically shut down after a
period of inactivity to save power.
FX Pocket Chronograph
Quick Start
13.12.2022 rev1

Advertisement

loading
Need help?

Need help?

Do you have a question about the FX Pocket and is the answer not in the manual?

Questions and answers

Summary of Contents for FXairguns FX Pocket

  • Page 1 13.12.2022 rev1 FX Pocket Chronograph Specifications Size: 72x70x42mm (2.75” x 2.75” x 1.7”) Weight: 133g (5 oz) Interface: Bluetooth Smart App: iOS & Android App name: FX Radar Measurement Tech: Doppler Radar Velocity Range: < 335m/s (1099fps) Power Source: 3x AAA Batteries Mount: V-shaped mount (not in the picture) that allows you to mount the chrono to the barrel.
  • Page 2 2. BATTERY Open the battery cover using a screwdriver and insert 3 AAA batteries. Recommended battery type is Energizer Ultimate Lithium. Be careful not to overtighten the screw when closing the battery cover. The plastic is strong enough that the screw can be tightened many times without stripping the threads.
  • Page 3 It is important not to place other devices, such as other velocity chronographs, in front of the radar when using the chronograph. This can interfere with the accuracy of the readings. 4. Download the FX Radar App from Google Play Store or Apple App Store.
  • Page 4 FX Radar App Android v1.6.112 or newer, iOS v1.8.67 or newer HOME PAGE 1. When the chronograph is not connected, the home menu will be black and will show a message indicating that it is waiting for a connection. Once you tap the "Connect" button, the display will switch to the "Connected"...
  • Page 5 SHOT STRING PAGE 1. The "Shot String" menu shows a summary of all shots in the current string. 2. At the top of the view, there are options to start a new string, copy the current string to the clipboard, save the string, and email the string. Saved strings can can be accessed in the “More”...

  • Page 6: Profile Page

    PROFILE PAGE 1. To select a profile, go to the profile menu and click on the desired profile. You can edit the name of the profile in the settings menu unless it is a default profile. If you set a name for the pellet in the settings menu, this information will be displayed after the profile name.

  • Page 7: Settings Page

    SETTINGS PAGE 1. The settings menu has a segmented control at the top of the view that allows you to switch between "Profile Settings" and "Application Settings". The "Application Settings" section contains settings that are applied to all profiles, such as the units of measurement. The "Profile Settings"...
  • Page 8 3. The "Minimum Return" setting in the "Advanced" section of the settings is rarely needed. In some cases, the sensitivity of the chronograph may need to be adjusted. If a shot is not being registered, you can try lowering the minimum return value to make the chronograph more sensitive.
  • Page 9 3. In the "Calibrate" settings, you can increase or decrease the readings by a certain percentage. This can be useful when you want to match the readings from the chronograph with those from another velocity chronograph. Please note that this does not mean that the unit requires manual calibration.
  • Page 10 MORE PAGE 1. The "More" menu contains links to the support page, manuals, and quick start guides. To access your saved shot strings, click on "Saved Strings" in the "More" menu. This will open a list of all the saved shot strings, where you can view, copy, email, or delete them as needed.
