Installation:
Binding Posts

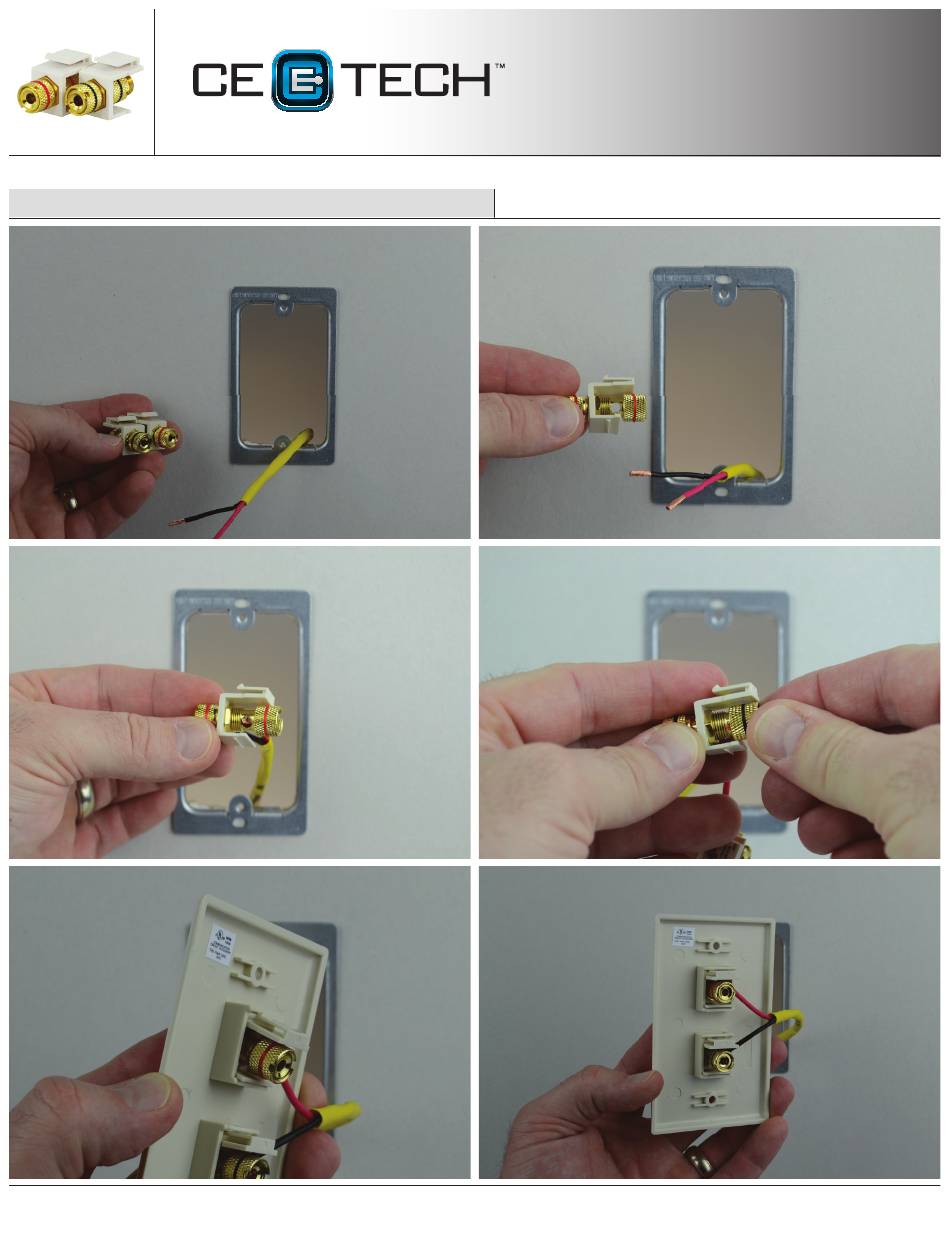

1.
Binding Post pair: Red (positive +), Black (negative -).
3.
Remove about ½" of insulation from each speaker wire, then feed
through opening on the side of the binding post.
5.
Place Binding Post insert at an angle into the keystone port with
the tab up. Tilt insert up to lock in place.
Distributed by: Home Depot U.S.A., Inc.
2455 Paces Ferry Rd., NE, Atlanta, GA 30339
2.
Unscrew the rear portion of each binding post .
4.
Tighten each binding post to secure wires.
*NOTE* Red is positive (+) and black is negative (–).
6.
Install all desired Binding Posts into keystone wall plate.
Item #1000015548
Model #5106-LA-BK/RD
Item #1000015549
Model #5106-WH-BK/RD
Visual Installation Guide
Binding Posts
Page 1 of 2
For assistance, call: 1-800-394-7519
HOMEDEPOT.COM
Advertisement
Table of Contents
Summary of Contents for HOMEDEPOT CEETECH 5106-WH-BK/RD
- Page 1 Place Binding Post insert at an angle into the keystone port with Install all desired Binding Posts into keystone wall plate. the tab up. Tilt insert up to lock in place. Distributed by: Home Depot U.S.A., Inc. For assistance, call: 1-800-394-7519 2455 Paces Ferry Rd., NE, Atlanta, GA 30339 HOMEDEPOT.COM...
- Page 2 Binding Posts are compatible with most standard keystone should not be loose. wall plates; they are also compatible with most banana plugs. Distributed by: Home Depot U.S.A., Inc. For assistance, call: 1-800-394-7519 2455 Paces Ferry Rd., NE, Atlanta, GA 30339 HOMEDEPOT.COM...
