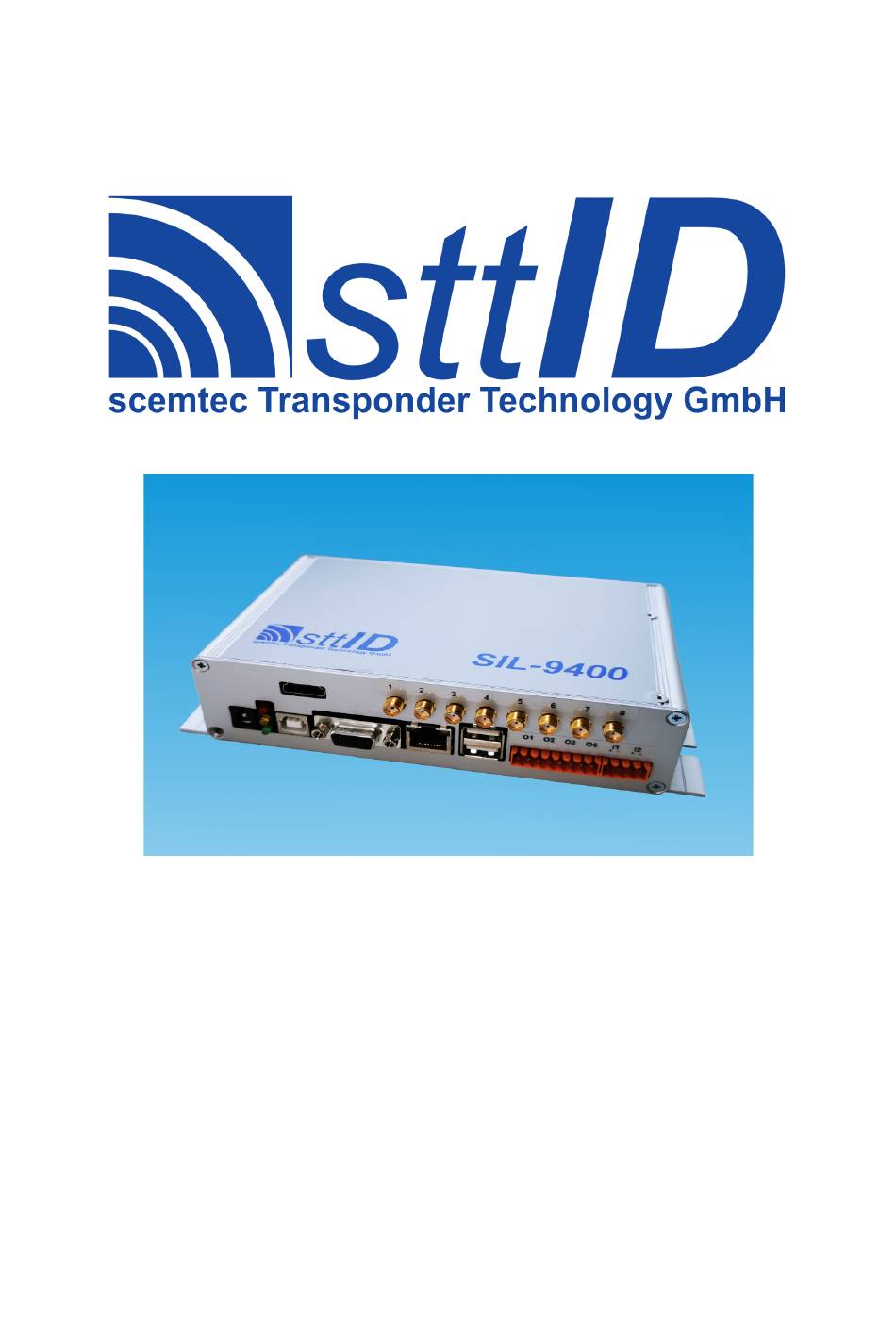

  • Page 1 Manual SIL-9400...
  • Page 2 Manual and Specification SIL-9400 Product name Version SIL-9400 Last Change Author Document revision 2.06.2022 J.Kalbitzer (c) scemtec Transponder GmbH 2022 Page 2 of 26...
  • Page 3: Table Of Contents

    Manual and Specification SIL-9400 Contents General...........................5 Care and Maintenance......................5 RFID Systems..........................6 RoHS and WEEE Directives.....................6 1.3.1 RoHS............................6 1.3.2 WEEE (Waste Electrical and Electronic Equipment)...............7 Safety Informations......................8 System Description......................9 Quick Start........................10 Connection via Ethernet.......................10 Mounting..........................10 Operating Modes......................11 Standard (Host) Mode......................11 Stand alone Mode........................11 Software........................12...
  • Page 4 Manual and Specification SIL-9400 9.2.3 Connecting-cables........................23 Related Documents.......................24 Contact sttID.........................25 History..........................26 Page 4 of 26...
  • Page 5: General

    This issues will be addressed by future version of the firmware. Additionally, the functionality described in this document may change without further notice in the future. scemtec Transponder Technology GmbH (sttID) reserves the right to make changes or to discontinue its products or services at any time without notice.
  • Page 6: Rfid Systems

    Manual and Specification SIL-9400 RFID Systems As this technology is based on radio frequency, one must exercise the following operational and mounting instructions to achieve best performance: • Metal affects radio signals. Normally the antenna has to be as far away as possible from any metal object and it’s damping influence on the magnetic field.
  • Page 7: Weee (Waste Electrical And Electronic Equipment)

    Manual and Specification SIL-9400 • Lead Polybrominated biphenyl flame retardants • Polybrominated diphenyl ether flame retardants • • Mercury This declaration is based on information provided by our suppliers and subcontractors. 1.3.2 WEEE (Waste Electrical and Electronic Equipment) This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE).
  • Page 8: Safety Informations

    Manual and Specification SIL-9400 Safety Informations As with all electronic systems, the system described hereafter may not be used for any ap- plications critical for maintaining safety. This means, the products may not used in life sup- port applications or any other life critical applications that could involve potential risk of death, personal injury or severe property or environmental damage.
  • Page 9: System Description

    This manual describes the 868 MHz LongRange Reader System SIL-9400, hereafter referred to as "Reader". The 868 MHz Long range Reader System SIL-9400 is designed as a multi-tag system for reading and writing information stored on transponders (TAGs). The operating frequency of 868 MHz permits a reading range up to 12 meters depending on antenna system and transponder type and size.
  • Page 10: Quick Start

    Manual and Specification SIL-9400 Quick Start Connection via Ethernet figure 1: System connection example For example you can use the sttID antenna “SAT-A26/26-LR-P-UHF”[order-no.: 400.2626] . Now you can use a PC- demonstration software like “SimpleDemo” to control the Reader. For more details please refer to “Quick Start Guide read”. This Guide is available for down- load on www.stt-rfid.com.
  • Page 11: Operating Modes

    Manual and Specification SIL-9400 Operating Modes Standard (Host) Mode In standard mode the Reader is completely controlled by a Host system connected to the network interface via STX-ETX commands. For further information, please refer to the STX- ETX protocol description, which can be downloaded from www.stt-rfid.com.
  • Page 12: Software

    ‘100E’ or via STX-ETX script ‘Get Fn List.stx’ (which will be installed together STX- Term software ). Webserver The SIL-9400 includes a web-server for firmware updates and maintenance which can be accessed using the devices IP-Address. Page 12 of 26...
  • Page 13: User Applications

    Manual and Specification SIL-9400 Default User Name: admin Default Password: admin User Applications It is possible to run own Applications on the reader. For developing own applications please read the “User Application Development Guide”. 6.5.1 Loading / Installing User Applications The application can be installed by opening the readers a web page and login as an admin- istrator.
  • Page 14: User Application From Sttid

    Manual and Specification SIL-9400 6.5.2 User Application from sttID Following User Applications from sttID are available: 6.5.2.1 SmartRead This App has been designed as an extension aimed to be used as an autonomous controller and protocol interface to be placed between an sttID RFID device and an arbitrary host sys - tem, hiding the STX/ETX protocol layer and providing standard ASCII terminal/telnet output in a highly configurable way.
  • Page 15 Manual and Specification SIL-9400 Page 15 of 26...
  • Page 16: Hardware

    Manual and Specification SIL-9400 Hardware Voltage Supply The Reader is designed for a voltage supply connectible via a standard 2.1-mm barrel con- nector. Polarity of connector The Reader may only be connected to a power supply within an output current-value of 1.5-2.5 A and which is tested for safety requirements according to appropriate standard...
  • Page 17: External Antenna

    Manual and Specification SIL-9400 Configuration 8 Data Bits, 1 Stop Bit, no Parity, no flow control Supported Data Rates [baud] 9600, 19200, 38400 57600, 115200 (default), 230400 External Antenna The Reader is only operational with external antenna(s). Some key parameters of the such as reading range for example depends on the used an- tenna, the used transponder type, size and quality, and the resulting magnetic coupling between the transponder resonant circuit and the transmission/receiver antenna.
  • Page 18: Inputs And Outputs

    Manual and Specification SIL-9400 For this system setup the permitted radiated power P according to EN 302 208 would be e.r.p. 1 W = 30 dBm. This leads to: = 10 (30 dBm + 3,2 dB - 5,5 dBi + 2,15 dB + 3 dB)/10...
  • Page 19: Io Connection Example

    Manual and Specification SIL-9400 Terminal assignment: Output designation Terminal designation Internal assignment — Contacts of the potential-free Output-port 1 — Contacts of the potential-free Output-port 2 — Contacts of the potential-free Output-port 3 — Contacts of the potential-free Output-port 4 All screw terminals are clearly marked with their specific designation at the terminal.
  • Page 20: Specification

    Manual and Specification SIL-9400 Specification Electrical specification Electrical specification (Ambient temperature: 25°C) Parameter Test condition Symbol Min. Typ. Max. Unit DC input voltage — — Current consumption = 24 V — — Operating frequency — — SIL-9400 Maximum RF power...
  • Page 21: Power Steps

    Manual and Specification SIL-9400 Power steps The output power of the Reader can be set in 15 steps. Output power conducted [mW] @ 50 Ohm load Power step (typical values @ 20 C) SIL-9400 Attention: National regulations regarding radiated power has to be considered, when setting the out- put power.
  • Page 22: Dimensions

    Manual and Specification SIL-9400 Dimensions An aluminium housing protection type IP 20 (in acc. with DIN EN 60529) is used. This hous- ing is equipped with two lateral covers attached with screws. For mounting the mounting latches can be used.
  • Page 23: Delivery Scope & Optional Accessories

    Delivery Scope SIL-9400 Long-Range system Optional Accessories For the SIL-9400 system a suitable wall plug 24 V =DC power supply as optional accessory is available and contactable to the SIL-9400 over a 2.1-mm standard barrel connector. 9.2.1 Antennas SAT-A12/12-P-868MHz 120*120 mm circular 5,5 dBi, 100° [order-no.: 400.2018] SAT-A26/26-LR-P-UHF-cir 260*260 mm circular 9,0 dBi, 70°...
  • Page 24: Related Documents

    Manual and Specification SIL-9400 Related Documents • QuickStart Guide ◦ Short introduction for using the with UniDemo • Quick guide to STXETX-protocol ◦ Short introduction of basic structure of STX-ETX protocol STX/ETX Protocol description • ◦ Detailed Description of command structure and available commands for con-...
  • Page 25: Contact Sttid

    Manual and Specification SIL-9400 Contact sttID scemtec Transponder Technology GmbH Wehrstr. 1 D-51645 Gummersbach Phone: + 49 (0) 22 61 / 80407 - 0 Fax: + 49 (0) 22 61 / 80407 - 55 e-Mail: info@stt-rfid.com website: www.stt-rfid.com If you have any questions about our products, please do not hesitate to call us. Our special - ists are always available for you and will provide professional support to find a solution to your specific problem.
  • Page 26: History

    Manual and Specification SIL-9400 History Rev. Changed by Date Description 28.02.2020 – J.Kalbitzer Initial Version 04.03.2020 – C. Pauls Added Stand alone mode description – Removed inapplicable values from specification – Fixed mechanical specifications – Added Preliminary watermark – J.Kalbitzer 7.2.2022...
