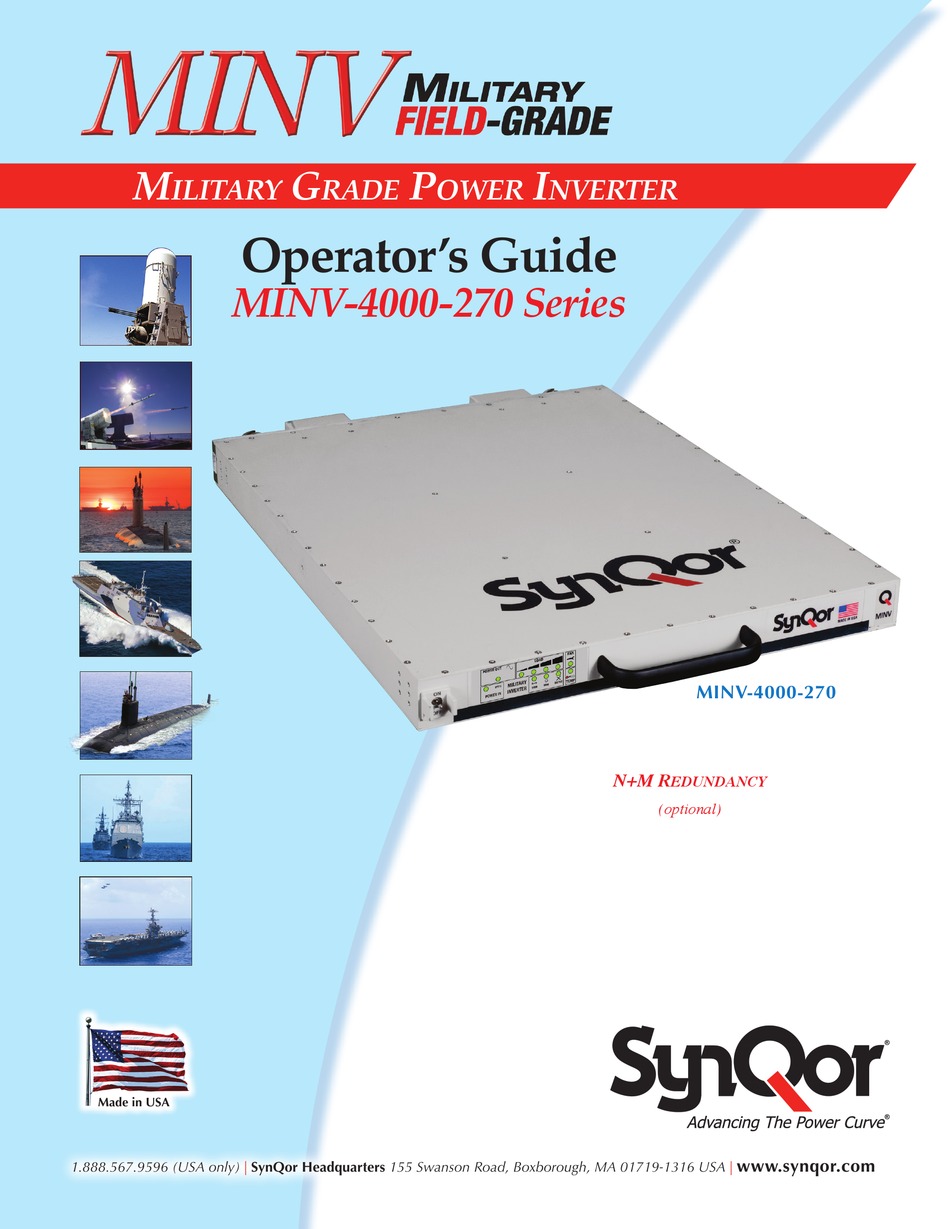

- Page 1 Operator’s Guide MINV-4000-270 Series MINV-4000-270 N+M R EDUNDANCY (optional) Made in USA www.synqor.com 1.888.567.9596 (USA only) SynQor Headquarters 155 Swanson Road, Boxborough, MA 01719-1316 USA...
-
Page 2: Table Of Contents
Power Cable Wiring Diagram ..........................10 Section III Operation Set-Up ....................................11 Start-Up ..................................11 Shut-Down ..................................11 Power Cable Connections ............................12 Programming The Output ............................12 Cooling System ................................13 Front Panel Indicators ..............................14 Audible alarm ..............................16 Operating Environment ............................17 006-0007361 12/08/2022 Rev A MINV-4000-270 Guide www.synqor.com... - Page 3 Internal User I/O Circuits ..........................30 Remote On/Off Switch Connections ......................30 Digital Input/Output Control Signals ........................31 Ethernet Interface ...............................31 RS-232 Serial Interface ..............................32 Section VI Maintenance Fans ....................................33 Cleaning..................................33 Section VII Trouble-Shooting Guide Fault Conditions ................................34 006-0007361 12/08/2022 Rev A MINV-4000-270 Guide www.synqor.com...
-
Page 4: Section I
Warnings Hazardous Voltages The INPUT AND OUTPUT POWER connectors and cables of the SynQor MINV-4000-270 may have voltages that are unsafe. INJURY OR DEATH ON CONTACT may result. Appropriate safety precautions should be taken. All connections should be made in accordance with LOCAL ELECTRICAL CODES. -
Page 5: Hazardous Energies
MINV-4000-270 fans are user replaceable with kits available from SynQor. Please contact the SynQor factory for obtaining fan replacement kits and instructions (Counter-Rotating Replaceable Fan Module , two piece kit, SYN-9452). The SynQor MINV has no other user serviceable parts inside. DO NOT REMOVE the cover of the MINV or any of its connectors. Other than fan assembly replacement, only factory trained personnel should perform unit repairs. -
Page 6: General Product Information
The electronic circuitry within the MINV-4000 Series products is designed, qualified and screened according to SynQor’s MIL-COTS Standards. It complies with the requirements of MIL-STD-704F and MIL-STD-461F. The MINV-4000 Series products are designed and manufactured to withstand the harshest environments and use encountered in military applications. The electronic circuitry is contained... -
Page 7: Product Topology
Section II General Product Information Product Topology The SynQor MINV-4000 Series products use an isolated topology that provides protection to the load from spikes, noise, surges, brownouts, blackouts, etc. in the input power source. They also provide smoothing of load transients and nonlinear load profiles so that the input power source is not subjected to these disturbances. EMI filters are present at all MINV-4000-270 external inputs and outputs. -
Page 8: Part Numbering Scheme And Options
Section II General Product Information Part Numbering Scheme and Options This table shows the part numbering scheme for the full line of SynQor MINV-4000-270 products: Base Models Model Number Power Height (W x D x H) Weight MINV-4000-1U-270 4000 W 5000 VA 1U (17.00”... -
Page 9: Product Specifications
Section II General Product Information • The Electronic Breaker option adds fault-tolerant, glitch-free multi-unit operation for N+1 or N+M redundancy. This option allows up to 32 units total in Single-Phase, Split-Phase, or 3-Phase systems. • RS-232 serial port and logic-level I/O communication are included in the standard model. An Ethernet port provides web and SNMP interfaces. Product Specifications The next pages show the electrical and mechanical specifications of the MINV-4000 Series of products. Data sheets showing these specifications and other information can be found at the web site http://www.synqor.com/MINV. MINV-4000-1U-270 Status Indication Panel 1.73" Air intake On/Off Switch 17.00" MINV-4000-1U-270 Ethernet User CONFIG Ground Output... -
Page 10: Technical Specifications
HD DB15 Female Ethernet Port Amphenol RJF22N00, Code B Cooling Exhaust Fans Sound Pressure Level (SPL) 64 dB(A) Air Flow 0.92(m /min) 32.5 CFM Two fans in system; above specs are for each fan separately. 006-0007361 12/08/2022 Rev A 7 of 41 MINV-4000-270 Guide www.synqor.com... -
Page 11: 1U Mechanical Diagram
0.55 [19.05] [13.9] 0.75 0.625 [19.1] 17.000 1.49 [15.88] [431.80] [37.8] 0.313 [7.94] POWER OUT LOAD 1.73 MILITARY [43.9] POWER IN INVERTER MADE IN U S A BATTLE TEMP MINV 006-0007361 12/08/2022 Rev A 8 of 41 MINV-4000-270 Guide www.synqor.com... -
Page 12: Efficiency
Efficiency Figure 1 shows the typical efficiency with which the MINV-4000-270 unit delivers power to its AC OUTPUT load from 60 Hz: 330 Vdc 270 Vdc 160 Vdc AC Output Power (kW) Figure 1 Total Output Power The total output power for the MINV-4000-270 is rated at 4000 W/5000 VA (Surge-rated to 5250 W/6500 VA for transient durations up to 10 seconds) for for an ambient temperature as high as 55 C (131 006-0007361 12/08/2022 Rev A 9 of 41 MINV-4000-270 Guide www.synqor.com... -
Page 13: Temperature Derating
Power Cable Wiring Diagram Looking at the rear panel, the MINV-4000-270 connector terminals have the following functions and locations: DC Input Function Ground Vin + Vin - Warning: Pin D should never be connected to a line Voltage AC OUTPUT Function Line 1 Line 2 Ground 006-0007361 12/08/2022 Rev A 10 of 41 MINV-4000-270 Guide www.synqor.com... -
Page 14: Operation
Section III Operation Set-Up The recommended procedure for setting up the MINV-4000-270 is the following: • Connect the ground wire to the ground stud on the rear panel of the MINV. • Connect the AC OUTPUT cables, first to the MINV and then to the load. • Connect the USER I/O cables. • Check that pin A in the input connector is not connected to Vin + or Vin -. On input cables provided by SynQor, pin A (Earth Ground) is connected to the green color wire. • Ensure the DC power source is off. • Connect the INPUT cables, first to the MINV and then to the DC source. • Turn on the source (if it has an up-stream breaker). Start-Up • VERIFY that all connections to the MINV-4000-270 are correct. • If the DC source is present and within specifications, a POWER IN LEDs on the front panel will light up green. • Momentarily push the “ON/OFF” switch on the front panel of the MINV upward. The switch can then be released and it will return to its normal (neutral) position. -
Page 15: Power Cable Connections
The MINV-4000-270 allows the user to adjust the output frequency. The output frequency can be set to 50, 60 and 400 Hz via both the serial and web interfaces. The MINV output frequency cannot be programmed using the SNMP interface. See the MINV Ethernet and SNMP guide for details on updating the output frequency using the web page. See the MINV User Commands document for details on updating the frequency using the RS-232 interface. https://www.synqor.com/document-viewer?document=MINV_User_Commands.pdf https://www.synqor.com/document-viewer?document=MINV_Ethernet-SNMP_User_Guide.pdf 006-0007361 12/08/2022 Rev A 12 of 41 MINV-4000-270 Guide www.synqor.com... -
Page 16: Cooling System
Section III Operation Cooling System The SynQor MINV-4000 Series products are cooled by fans that draw air into the intake on the front panel and exhaust it out the two fan ports on the rear panel. Care should be taken to ensure there is no obstruction to this airflow, either at the front intake or the rear exhaust ports. Similarly, care should be taken to avoid obstructing the fan blades. -
Page 17: Front Panel Indicators
MINV is On and the Output Voltage is Green Within Range MINV is On but the Output Voltage is Amber Out of Range MINV is Off and the Output Voltage is Within Range MINV is Off 006-0007361 12/08/2022 Rev A 14 of 41 MINV-4000-270 Guide www.synqor.com... - Page 18 Blinking Green (Fans Running at 50%) Elevated MINV Temperature Amber (Fans Running at 75%) Maximum MINV Temperature (Fans Running at 100%) Over Temperature Warning Blinking Red (Fans Running at 100%) 006-0007361 12/08/2022 Rev A 15 of 41 MINV-4000-270 Guide www.synqor.com...
-
Page 19: Audible Alarm
Fault Appears on the AC Output Three MINV Must be Turned Off and Back On to Reset Fault Four One or More Fans have Encountered a Fault and Require Service 006-0007361 12/08/2022 Rev A 16 of 41 MINV-4000-270 Guide www.synqor.com... -
Page 20: Operating Environment
Section III Operation Operating Environment The SynQor MINV-4000 Series is designed for the extreme environmental conditions of military and aerospace applications. All the electronic circuitry is contained in a sealed, weather-proof, shock-proof chamber constructed of die-cast aluminum. Only the redundant, water-proof cooling fans are exposed to the environment. The Unit will shut down if it is too hot and Battle Mode is not active. The MINV-4000-270 (with cables connected or connector covers installed) has been qualified to the following requirements of MIL-STD-810G: MIL-STD-810G Name Procedure Details Test Method • 15,000 ft. operating 500.5 Low Pressure I, II and III • 40,000 ft. storage • +55 C operating 501.5 High Temperature I and II • +65... -
Page 21: Multiple Unit Configuration
MINV must internally have the neutral wire of its AC OUTPUT floating, rather than connected to its chassis. This requires that all the MINV units have the “F” option for expanded parallel units and “R” option for redundant parallel units regarding the AC OUTPUT neutral wire connection. Check the MINV part numbers to be sure this is the case before ordering. 006-0007361 12/08/2022 Rev A 18 of 41 MINV-4000-270 Guide www.synqor.com... -
Page 22: Expanded Paralleling -F Option
Section IV Multiple Unit Configuration Expanded Paralleling -F Option With expanded paralleling, up to 32 SynQor MINV-4000-270 Units with identical “F” type model numbers can be combined in various ways to achieve: • Higher output power • Higher output voltage • M ultiple output phases... -
Page 23: Redundant Paralleling -R Option
It is strongly recommended that the system DC input be disabled or turned “OFF” before the unit is removed or replaced. CONFIGURATION cables for two, three, four and five unit and single-phase systems are offered as standard products. See the next sections for further details. Contact the SynQor factory for Single-Phase systems larger than five MINV Units, or for Split-Phase and 3-Phase systems. Systems created using redundant parallel MINV Units will be fault-tolerant to the following events: • C omplete loss of power to a unit (DC input) -
Page 24: Possible Configurations Of The Ac Outputs
1 x I 3 x P SYN-9617 rated rated L-L: 1.73 x V 120° rated Note that the chart above shows the SynQor part number for the CONFIGURATION cable required to build each multi-unit type system. 006-0007361 12/08/2022 Rev A 21 of 41 MINV-4000-270 Guide www.synqor.com... - Page 25 The “F” and “R” options allows up to 32 MINV-4000-270 Units to be installed in a single parallel or redundant system. The “R” option adds a single pole electronic breaker to the hot wire of the AC OUTPUT. This breaker allows for fault-tolerant, glitch-free operation of up to 32 MINV Units in a redundant N+1 or N+M multi MINV system. Therefore, “R” option allows customers to build redundant, Single-phase, Split-phase, and 3-Phase with SynQor’s MINV units. Each of these MINV systems can also be configured to be N+1 or N+M redundant on each phase. The block diagrams below show a summary of the different system configuration that can be made using units with the “R” and “F” option. Please note that each multi-unit system requires its own unique system CONFIGURATION (Single-phase, Split-phase, and 3-Phase) cable. Configuration cables are the same for the “R”...
- Page 26 MINV Unit 2 (0°) (120°) (240°) Phase B Phase A Phase C MINV Unit 10 MINV Unit 10 MINV Unit 10 * Configuration Cable (120°) (0°) (240°) * AC Output 006-0007361 12/08/2022 Rev A 23 of 41 MINV-4000-270 Guide www.synqor.com...
-
Page 27: Parallel Connection Of The Ac Outputs
MINV-4000-270 AC Output Blue Cable Section Red Cable Section Minimum Wire Size Minimum Wire Size Voltage 115 Vac #8AWG (10 mm #2AWG (41 mm 230 Vac #10AWG (6 mm #6AWG (16 mm 006-0007361 12/08/2022 Rev A 24 of 41 MINV-4000-270 Guide www.synqor.com... - Page 28 MINV-4000-270 AC Output Blue Cable Section Red Cable Section Minimum Wire Size Minimum Wire Size Voltage 115 Vac #8AWG (10 mm #0AWG (65 mm 230 Vac #10AWG (6 mm #4AWG (26 mm 006-0007361 12/08/2022 Rev A 25 of 41 MINV-4000-270 Guide www.synqor.com...
-
Page 29: Series Split-Phase Connection Of Ac Outputs
(meaning at a high potential relative to the neutral or PEGND). One will be phase-shifted by 180 degrees (one-half cycle) from the other, meaning that when one hot wire is at its positive peak the other is at its negative peak, and vice versa. The voltage between these two hot wires is therefore twice that of either hot wire compared to the neutral wire. This configuration is called “Split-Phase”. When ordering, select the “F: Floating” or “R: AC Output Electronic Breaker” option for the MINV Units. Contact the SynQor factory for N+1 redundant Split-Phase systems. The wiring diagram for the AC OUTPUT cables and the CONFIGURATION cable for the Split-Phase configuration is shown below: CONFIGURATION cable SYN-9613 Line 2 Line 1... -
Page 30: Series 3-Phase Connection Of Ac Outputs
Three expanded or redundant parallel MINV-4000-270 Units can be setup so that their AC OUTPUTs can share a common “neutral” and deliver output voltages that are phased by 120 degrees (one-third cycle) from each other. This configuration delivers a 3-Phase output where the line-to-neutral voltage is the rated voltage of the individual MINV Units (e.g. 115 Vac or 230 Vac line-to-neutral) and the line-to-line voltage is 1.73 times higher (e.g. 200 Vac or 400 Vac line-to-line). When ordering units for this configuration, make sure you select the “F: Floating” or “R: AC Output Electronic Breaker” option for the MINV Units. Contact the SynQor factory for N+1 redundant 3-Phase systems. The wiring diagram for the AC OUTPUT cables and the CONFIGURATION cables for the 3-Phase configuration is shown below: CONFIGURATION cable SYN-9617 Line 2 Line 1 Line 3... -
Page 31: Connecting Dc Inputs
AC OUTPUT CONNECTIONS. ALL DC INPUT AND AC OUTPUT CABLE CONNECTORS MUST BE INSTALLED PRIOR OPERATION. DISCONNECTED CABLE CONNECTORS MAY HAVE VOLTAGES PRESENT FROM ANOTHER UNITS IN A GROUP AND COULD POTENTIALLY BE HARMFUL. 006-0007361 12/08/2022 Rev A 28 of 41 MINV-4000-270 Guide www.synqor.com... -
Page 32: Control Interface Details
The Configuration male DB15 connector on the right provides for synchronized startup and shutdown operation of multiple interconnected units, using the SYN-9341, SYN-9343, SYN-9344, SYN-9345, SYN-9613 or SYN-9617 cables. See the “Possible configurations of the AC OUTPUTs” on page 21 for supported configurations details. The designation/location of the pins for the User I/O female high-density DB15 connector are shown below: 006-0007361 12/08/2022 Rev A 29 of 41 MINV-4000-270 Guide www.synqor.com... -
Page 33: Internal User I/O Circuits
+5V Pin I/O Circuits 500 Ohms PS2581L REMOTE_START OUTPUT ON 1N4148 Input Pin OUTPUT OFF 500 Ohms PS2581L Remote On/O Switch SHUTDOWN 1N4148 SPDT Momentary Input Pin (ON) OFF (ON) Note: A 2PDT or 3PDT switch may be substituted for single control of 2 or 3 MINV machines, respectively. 006-0007361 12/08/2022 Rev A 30 of 41 MINV-4000-270 Guide www.synqor.com... -
Page 34: Digital Input/Output Control Signals
IP address assignment can be configured to be acquired by the unit automatically via DHCP or set up through a static address entry via the web interface. The Ethernet interface also provides a local DHCP server that allows direct MINV to host computer connections. For a d etailed d escription o f t he E thernet p ort a nd S NMP i mplementation s ee t he S ynQor w ebsite a t: https://www.synqor.com/document-viewer?document=MINV_Ethernet-SNMP_User_Guide.pdf 006-0007361 12/08/2022 Rev A 31 of 41 MINV-4000-270 Guide www.synqor.com... -
Page 35: Rs-232 Serial Interface
• Total Output Power • E xternal Switch Input Status • Fan RPM Parameters that are controllable through the interface: • O n/Off Synchronization • AC Output Frequency • B attle Mode • Alarm enable / disable • O utput enable / disable • Fan Diagnostics For a detailed description of the terminal interface see the SynQor website. https://www.synqor.com/document-viewer?document=MINV_User_Commands.pdf https://www.synqor.com/document-viewer?document=MINV_Ethernet-SNMP_User_Guide.pdf 006-0007361 12/08/2022 Rev A 32 of 41 MINV-4000-270 Guide www.synqor.com... -
Page 36: Maintenance
Fans The fans on the rear panel have sealed bearings that do not require any maintenance. Fan assemblies are user replaceable with kits available from SynQor. Please contact the SynQor factory for obtaining fan replacement kits (Counter-Rotating Replaceable Fan Module SYN-9452). -
Page 37: Trouble-Shooting Guide
Section VII Trouble-Shooting Guide Fault Conditions The SynQor MINV has no user-serviceable parts within it. If it has an internal malfunction only factory trained personnel should attempt to repair it. There are, however, several external conditions that could cause the MINV to not operate as desired. These external conditions can likely be corrected by the user. The 11 LEDs on the front panel are the best and first place to look to determine what might be wrong with the MINV. The table on the next several pages is therefore organized by what these LEDs indicate, and for each indication there is a listing of what might possibly be wrong. The front panel LED array is shown below. The designations of the 11 LEDs in this array are used in the following table. Indication Possible Problem(s) • The DC INPUT power source is not turned on. - Page 38 • To reset, the MINV must be turned OFF and then ON. • One or more fans have encountered a fault or degraded performance. Four tones • The MINV may still operate with degraded fan performance, but will require service. Ensure the fan blades are not obstructed. 006-0007361 12/08/2022 Rev A 35 of 41 MINV-4000-270 Guide www.synqor.com...
- Page 39 “ON” AC OUTPUT of a Unit that is already running. Common examples of such loads are motors and incandescent lights, but some electronic equipment can also display this characteristic. 006-0007361 12/08/2022 Rev A 36 of 41 MINV-4000-270 Guide www.synqor.com...
- Page 40 Section VII Trouble-Shooting Guide Several problems could arise with such a load: • Loads that draw a large surge of current at start-up: SynQor’s MINV-4000-270 is designed to try various start-up routines when it is first turned “ON” to overcome the problem of surge currents with some loads. There are three such routines, and each routine will be attempted three times. If the load is not started after these three routines (9 total attempts), the DC/AC section will latch off. This causes the AC output LED A0 to turn AMBER. To get the MINV to try again, the user should again push the “ON/OFF” switch on the front panel to the “OFF” position, then back to the “ON” position. If there is more than one load connected to the AC OUTPUT that displays this start-up surge...
- Page 41 MINV may determine that the DC input is out of range and proceed to shut down. After this occurs, no current is being drawn through the input cables and terminals once again, the MINV detects that the DC input voltage is back to normal, and begins the startup sequence once again after a 1 second delay. The cycle will continue to repeat over and over, until voltage drop in the input circuit is corrected. The following are possible solutions to this problem: 1) make sure that the cable diameter for the required length is sufficient to deliver the full amperage to the MINV Unit, 2) tighten the distribution panel/breaker terminals or 3) clean any contamination or corrosion buildup on all terminals and connectors. 006-0007361 12/08/2022 Rev A 38 of 41 MINV-4000-270 Guide www.synqor.com...
- Page 42 Notes 006-0007361 12/08/2022 Rev A 39 of 41 MINV-4000-270 Guide www.synqor.com...
- Page 43 Notes 006-0007361 12/08/2022 Rev A 40 of 41 MINV-4000-270 Guide www.synqor.com...
- Page 44 Operator’s Guide MINV-4000-270 Series 006-0007361 12/08/2022 Rev A Made in USA www.synqor.com 1.888.567.9596 (USA only) SynQor Headquarters 155 Swanson Road, Boxborough, MA 01719-1316 USA...
