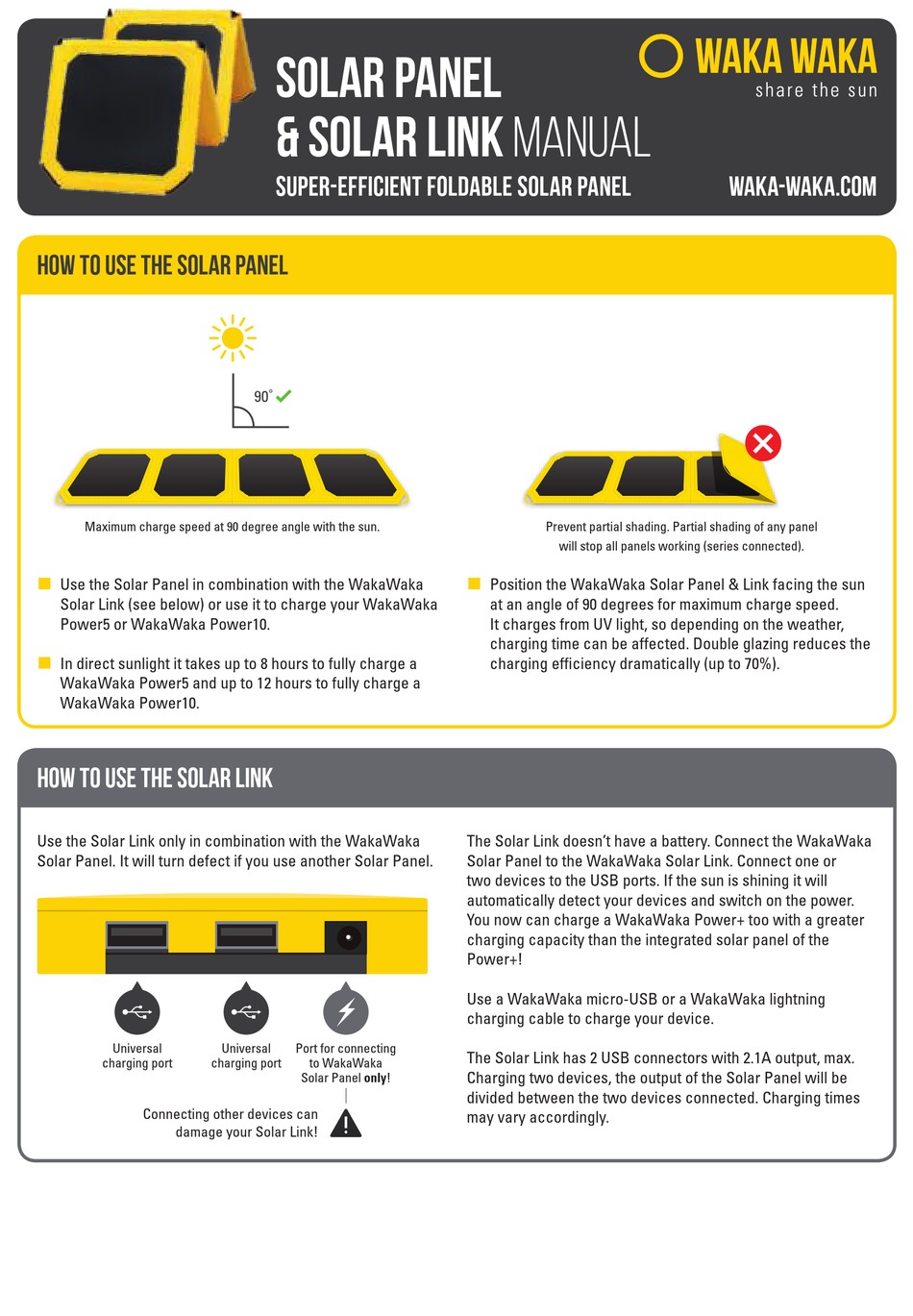

Waka Waka SOLAR PANEL Manual

How to use the Solar Panel

Maximum charge speed at 90 degree angle with the sun.
7
Use the Solar Panel in combination with the WakaWaka
Solar Link (see below) or use it to charge your WakaWaka
Power5 or WakaWaka Power10.
7
In direct sunlight it takes up to 8 hours to fully charge a
WakaWaka Power5 and up to 12 hours to fully charge a
WakaWaka Power10.

How to use the Solar link

Use the Solar Link only in combination with the WakaWaka
Solar Panel. It will turn defect if you use another Solar Panel.
Universal
charging port
Connecting other devices can
damage your Solar Link!
solar panel
& solar link manual
super-efficient foldable solar panel
90˚
Universal Port for connecting
charging port to WakaWaka
Solar Panel only!
Prevent partial shading. Partial shading of any panel
will stop all panels working (series connected).
7
Position the WakaWaka Solar Panel & Link facing the sun
at an angle of 90 degrees for maximum charge speed.
It charges from UV light, so depending on the weather,
charging time can be affected. Double glazing reduces the
charging efficiency dramatically (up to 70%).
The Solar Link doesn't have a battery. Connect the WakaWaka
Solar Panel to the WakaWaka Solar Link. Connect one or
two devices to the USB ports. If the sun is shining it will
automatically detect your devices and switch on the power.
You now can charge a WakaWaka Power+ too with a greater
charging capacity than the integrated solar panel of the
Power+!
Use a WakaWaka micro-USB or a WakaWaka lightning
charging cable to charge your device.
The Solar Link has 2 USB connectors with 2.1A output, max.
Charging two devices, the output of the Solar Panel will be
divided between the two devices connected. Charging times
may vary accordingly.
waka-waka.com
