Oppermann Regelgeräte NTG03-24VDC-36W Manual

Power supply NTG03-24VDC-36W

Technical Data

Power supply:
Output voltage:
Max. output current:
Max. output power:
Secondary fuse:
Operating displays:
Rated ambient temperature:
Rated humidity:
Connection:
Cable gland:
Housing:
Protection type:
Dimensions (L x W x H)
Weight:
230 V AC +10 % / -15 %
50 – 60 Hz
24 V DC
1.5 A
(Note inrush current of
connected devices!)
36 W
Electronic: Current and
voltage surges
LED green
- 10 °C – 40 °C
20 % – 90 % RH
(non-condensing)
Spring clips 0.14 – 2.5 mm²
3x M16x1.5
PS, light gray
IP 66
approx. 180 x 130 x 90 mm
approx. 0.8 kg
Gas and CO warning devices PG3 | Data sheet No. 36401 | Version 11-2017 | 1 | 2

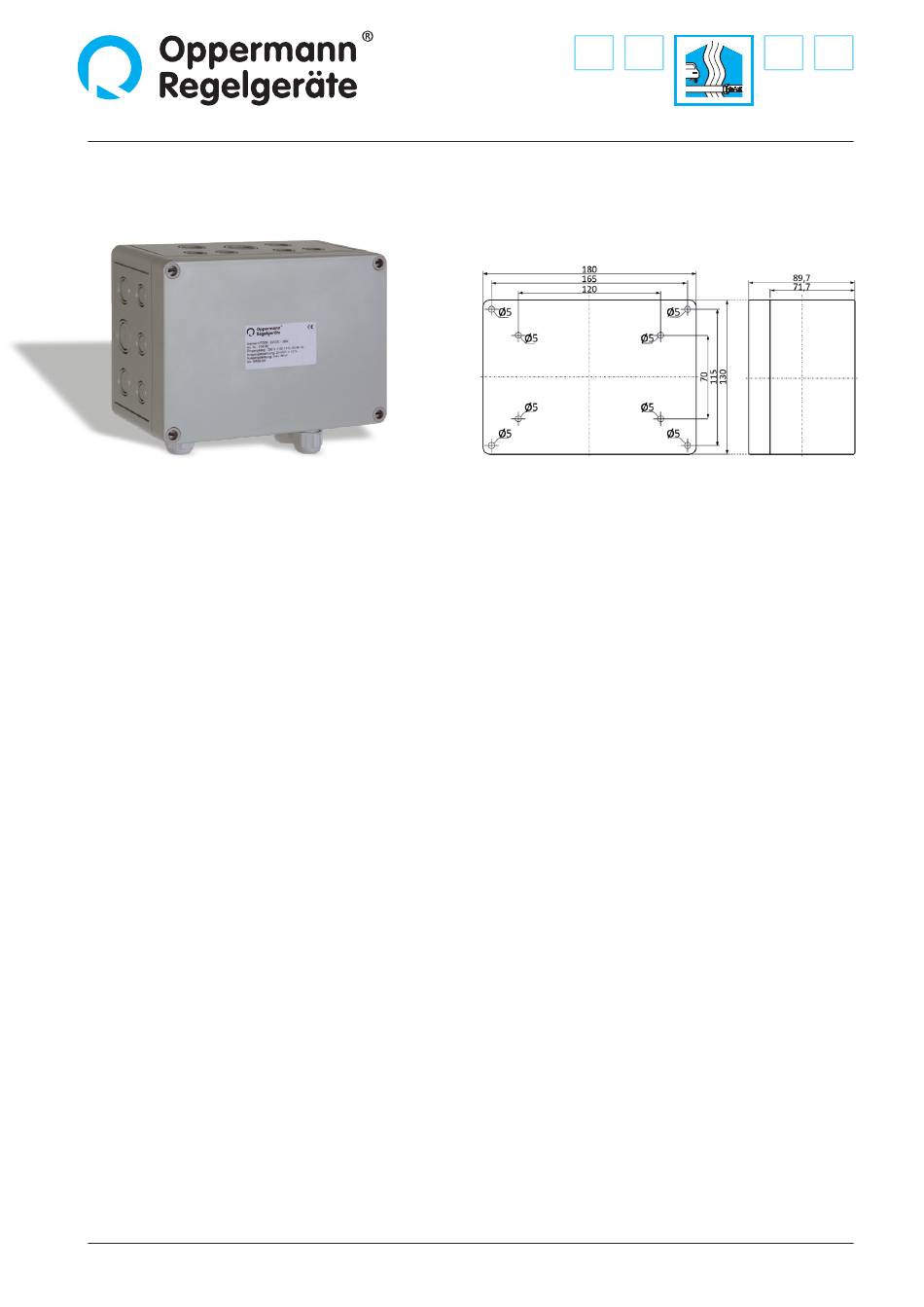

Dimensions

Function

The power supply unit serves to power gas sensors of the
OPP-SOR® GMF-MOD-IR series whenever more than 7 of these
devices are to be operated within one system. See data sheet
30109. Seven additional sensors of the GMF-MOD-IR series can
be powered with every NTG03 that is added.

Installation and electrical connection

All work (such as installation, electrical connection, startup, ope-
ration, and maintenance) must only be performed by sufficiently
qualified tradesmen. The respectively applicable local rules and
regulations (e.g. national building codes, electrical/VDE regula-
tions, etc.) must be observed. Installers and operating entities
are required to sufficiently familiarize themselves before startup.
Read the product description before operating the equipment.
Verify that the product can be used for the relevant application
without restrictions. We are not liable for printing errors and
changes after printing. Appropriate use implies compliance with
operating and installation instructions. We are not liable for losses
due to inappropriate use. Unauthorized or inappropriate mani-
pulations or modifications of the device render the operating
permit, the product warranty and warranty claims null and void.
