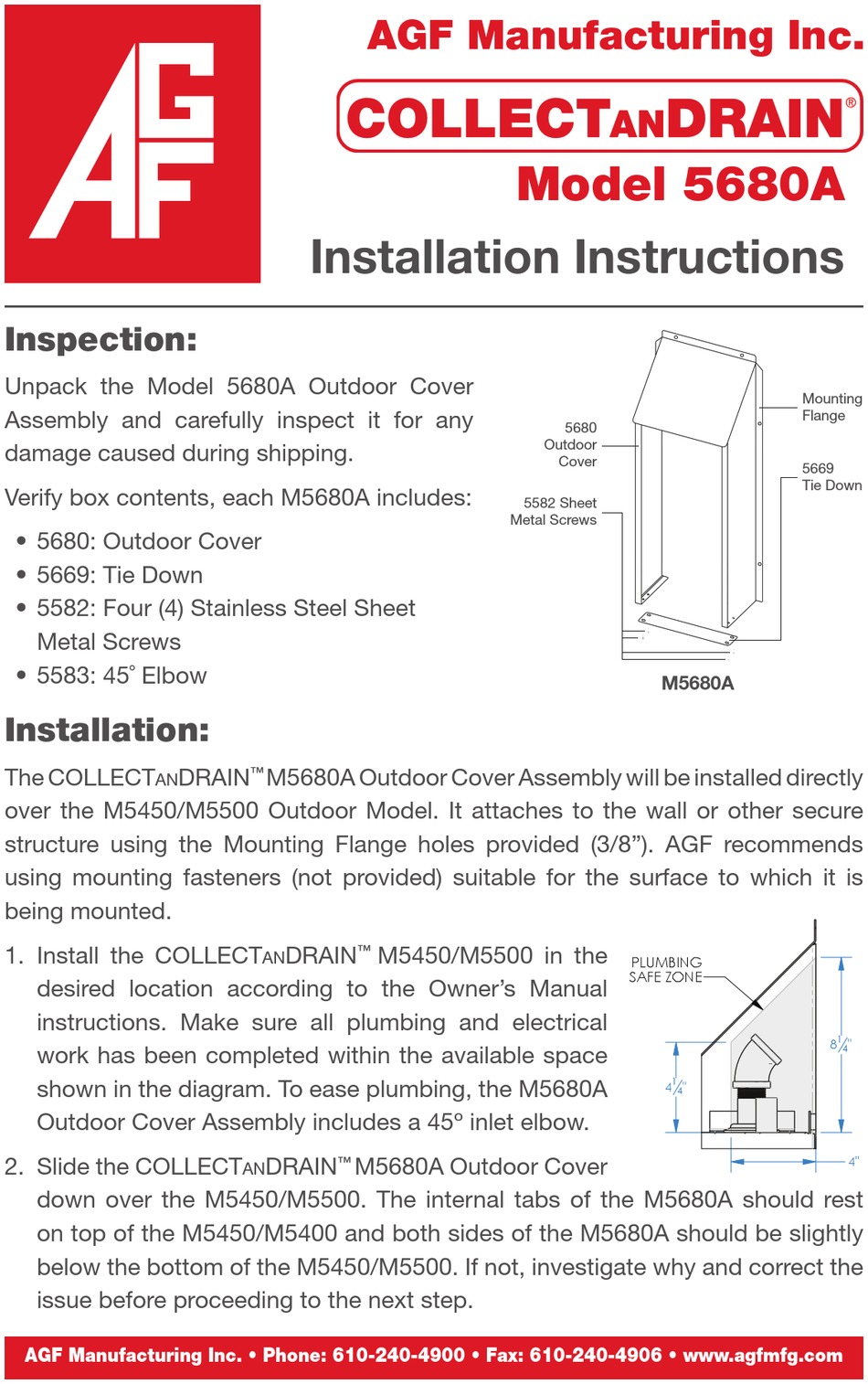

AGF COLLECTanDRAIN 5680A Installation Instructions

Inspection:

Unpack the Model 5680A Outdoor Cover
Assembly and carefully inspect it for any
damage caused during shipping.
Verify box contents, each M5680A includes:
• 5680: Outdoor Cover
• 5669: Tie Down
• 5582: Four (4) Stainless Steel Sheet
Metal Screws
• 5583: 45˚ Elbow

Installation:

The COLLECT
an
over the M5450/M5500 Outdoor Model. It attaches to the wall or other secure
structure using the Mounting Flange holes provided (3/8"). AGF recommends
using mounting fasteners (not provided) suitable for the surface to which it is
being mounted.
1. Install the COLLECT
desired location according to the Owner's Manual
instructions. Make sure all plumbing and electrical
work has been completed within the available space
shown in the diagram. To ease plumbing, the M5680A
Outdoor Cover Assembly includes a 45º inlet elbow.
2. Slide the COLLECT
down over the M5450/M5500. The internal tabs of the M5680A should rest
on top of the M5450/M5400 and both sides of the M5680A should be slightly
below the bottom of the M5450/M5500. If not, investigate why and correct the
issue before proceeding to the next step.
AGF Manufacturing Inc. • Phone: 610-240-4900 • Fax: 610-240-4906 • www.agfmfg.com
Installation Instructions
DRAIN M5680A Outdoor Cover Assembly will be installed directly
™
DRAIN
an
DRAIN
™
an
AGF Manufacturing Inc.
Model 5680A
Metal Screws
M5450/M5500 in the
™
M5680A Outdoor Cover
5680
Outdoor
Cover
5582 Sheet
M5680A
Mounting
Flange
5669
Tie Down
