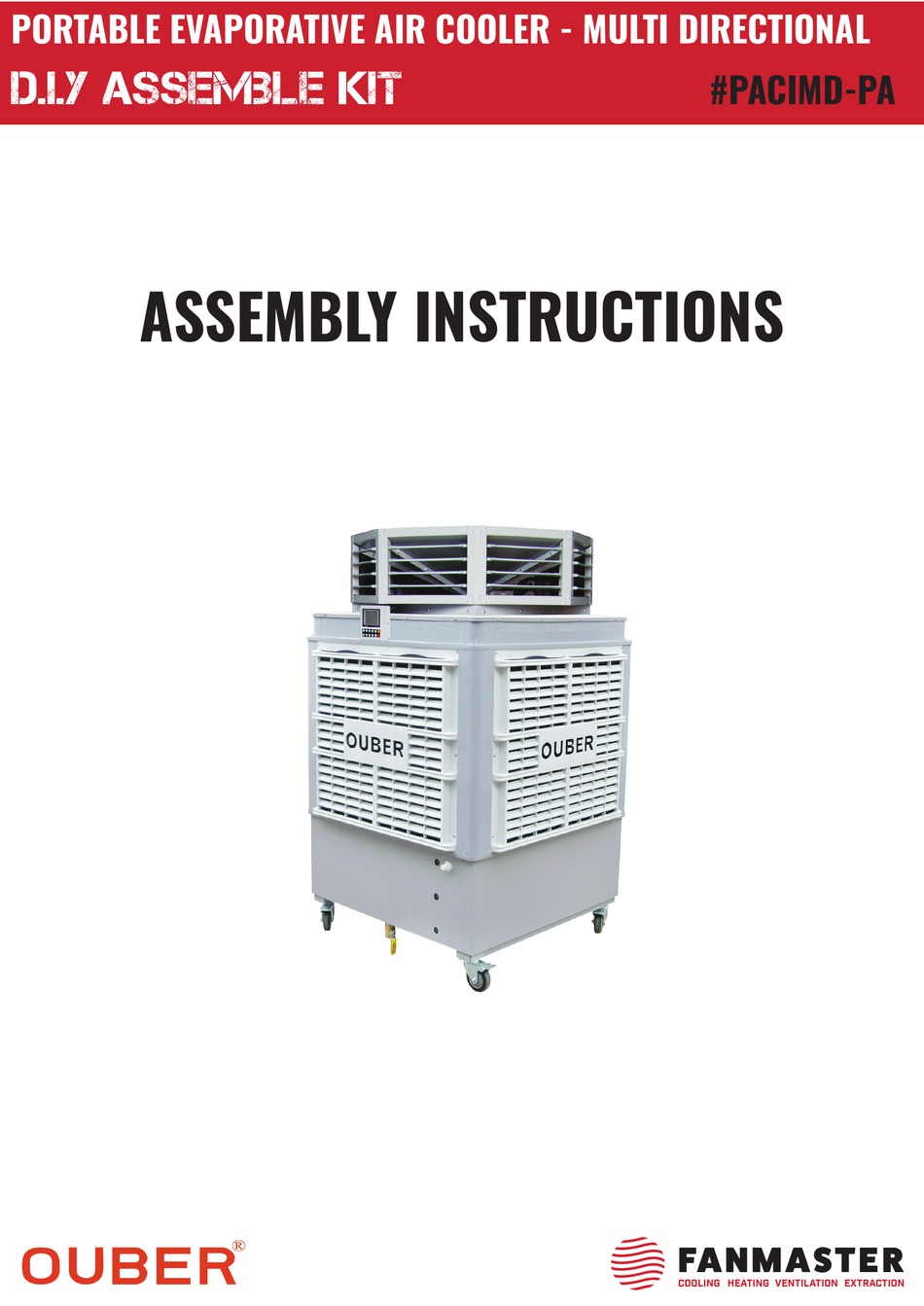

PORTABLE EVAPORATIVE AIR COOLER - MULTI DIRECTIONAL
D.I.Y assemble kit
ASSEMBLY INSTRUCTIONS
#PACIMD-PA
FA NM A ST ER
cooling heating ventilation extraction

Advertisement

loading
Need help?

Need help?

Do you have a question about the PACIMD-PA and is the answer not in the manual?

Questions and answers

Related Manuals for Fanmaster PACIMD-PA

Summary of Contents for Fanmaster PACIMD-PA

  • Page 1 PORTABLE EVAPORATIVE AIR COOLER - MULTI DIRECTIONAL #PACIMD-PA D.I.Y assemble kit ASSEMBLY INSTRUCTIONS FA NM A ST ER cooling heating ventilation extraction...

  • Page 2: What's Included

    WHAT’S INCLUDED PART IMAGE Air outlet assembly 8 x top panels 8 x support brackets 4 x bottom panels 32 x louvres 1 x fan guard Body Castors (located inside body) PopRivets/Screws/ Accessories (located inside body) Control Panel + Enclosure (located inside body) Remote Control (located inside body)

  • Page 3: Tools Required

    TOOLS REQUIRED • Powered drill with Philips head bit • Rivet gun (preferably air powered) VIDEO INSTRUCTION WATCH ME PRODUCT INFORMATION SCAN ME...
  • Page 4 ASSEMBLY INSTRUCTIONS RECOMMEND 2 PERSONS FOR ASSEMBLY 1st Stage - Unpack & Locate Accessories Box: • Remove body from the carton • Remove side panel (with yellow label) to access inside of body. • Locate box with castors, instruction manual, control panel, remote & accessories.
  • Page 5 2nd Stage - Attachment of Castors • Place down the carton or blanket on the floor • Carefully lay the body on its side • Attach 4 x castors with bolts & washers supplied • Lock all 4 brake functions and lift unit into upright position. 3rd Stage - Assembly &...
  • Page 6 • Attach the top panels (8) using the pop rivets supplied.
  • Page 7 • Attach the support brackets (8) to the top panel using the pop rivets supplied.
  • Page 8 • Install the rubber grommets into the support brackets. • Attach the louvres (32) into the air vent (8 sections). Rubber Grommets Louvres • Attach the bottom panels (4) to the support brackets with the pop rivets supplied.
  • Page 9 • Attach fan guard to air outlet with pop rivets & washers. • Attach air outlet to body with screws provided. 4th Stage - Cabling & Connection: • Insert control panel into enclosure bracket (locate controller cable which is the front) •...
