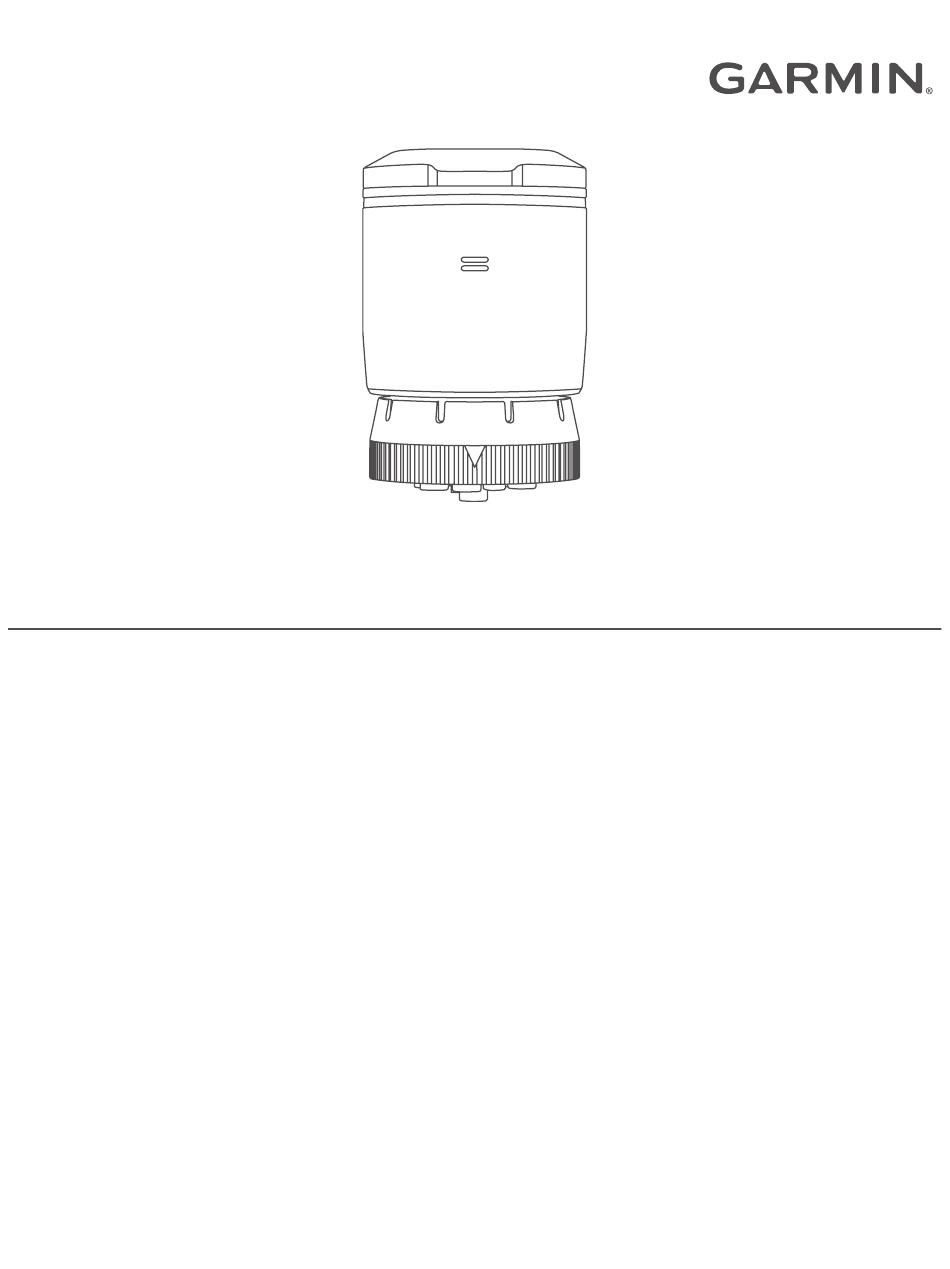

- Page 1 GARMIN ELOG ™ Owner’s Manual...
- Page 2 © 2017 Garmin Ltd. or its subsidiaries All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to www.garmin.com...
-
Page 3: Table Of Contents
I forgot to change my duty status..15 Introduction........1 The odometer on my vehicle does not Device Overview........1 match the app........15 Installation..........1 Setting Up Your Garmin eLog Device Information......16 Adapter............ 3 Specifications........16 Daily Operation Guidelines..... 3 Device Care..........16 Starting a Drive.........4... -
Page 5: Introduction

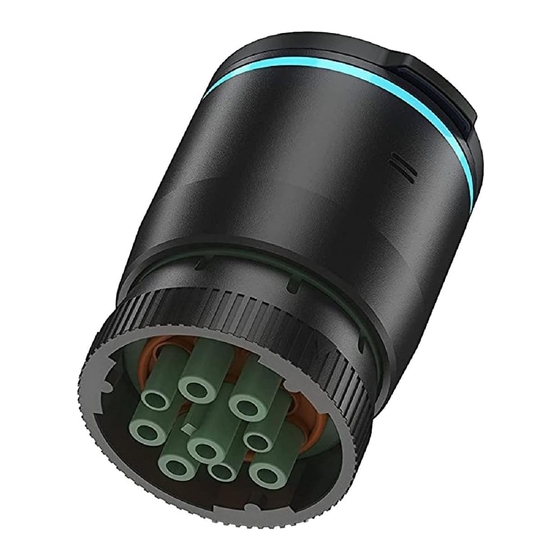

The Garmin eLog device connects to the diagnostic port on your vehicle. The location of the diagnostic port varies in different vehicles. See your vehicle owner's manual for more information. - Page 6 Installing the Device in a J1939 Port 1 Turn off your vehicle. 2 Connect the device to the 9-pin diagnostic port on your vehicle. NOTE: The arrow on the lock ring must align with the channel on the vehicle diagnostic port. 3 Turn the lock ring clockwise until it locks into the diagnostic port.
-
Page 7: Setting Up Your Garmin Elog Adapter
5 Turn the lock ring clockwise until it locks into the vehicle port. Setting Up Your Garmin eLog Adapter You must set up and pair your Garmin eLog adapter with the Garmin eLog app in order to be in compliance with FMCSA ELD regulations. -
Page 8: Starting A Drive
3 Start your vehicle. 4 Before you start driving, change your duty status in the Garmin eLog app. The Garmin eLog adapter syncs with the Garmin eLog app and records ELD Records of Duty Service (RODS) automatically. Starting a Drive... -
Page 9: Garmin Elog App Overview
Garmin eLog App Overview The name of the active driver. Select to change duty status. Diagnostic and malfunction indicator. Select to view detailed information about diagnostic or malfunc tion alerts (Viewing Diagnostics and Malfunctions, page 11). Select to record adverse conditions, create a Records of Duty Status (RODS) report, or log out. -
Page 10: Driving In A Team
Data Retention Notice NOTICE Uninstalling the Garmin eLog app will cause all retained ELD data to be deleted from the mobile device. It is the responsibility of the driver and/or motor carrier to ensure ELD records are retained as required by applicable regulations. -
Page 11: Changing Duty Status
