Quick Start
Remove Monitor Stand for Mounting
To prepare the monitor for alternate mounting purposes:
1. Disconnect all cables.
2. Place hands on each side of the monitor and lift
up to the highest position.

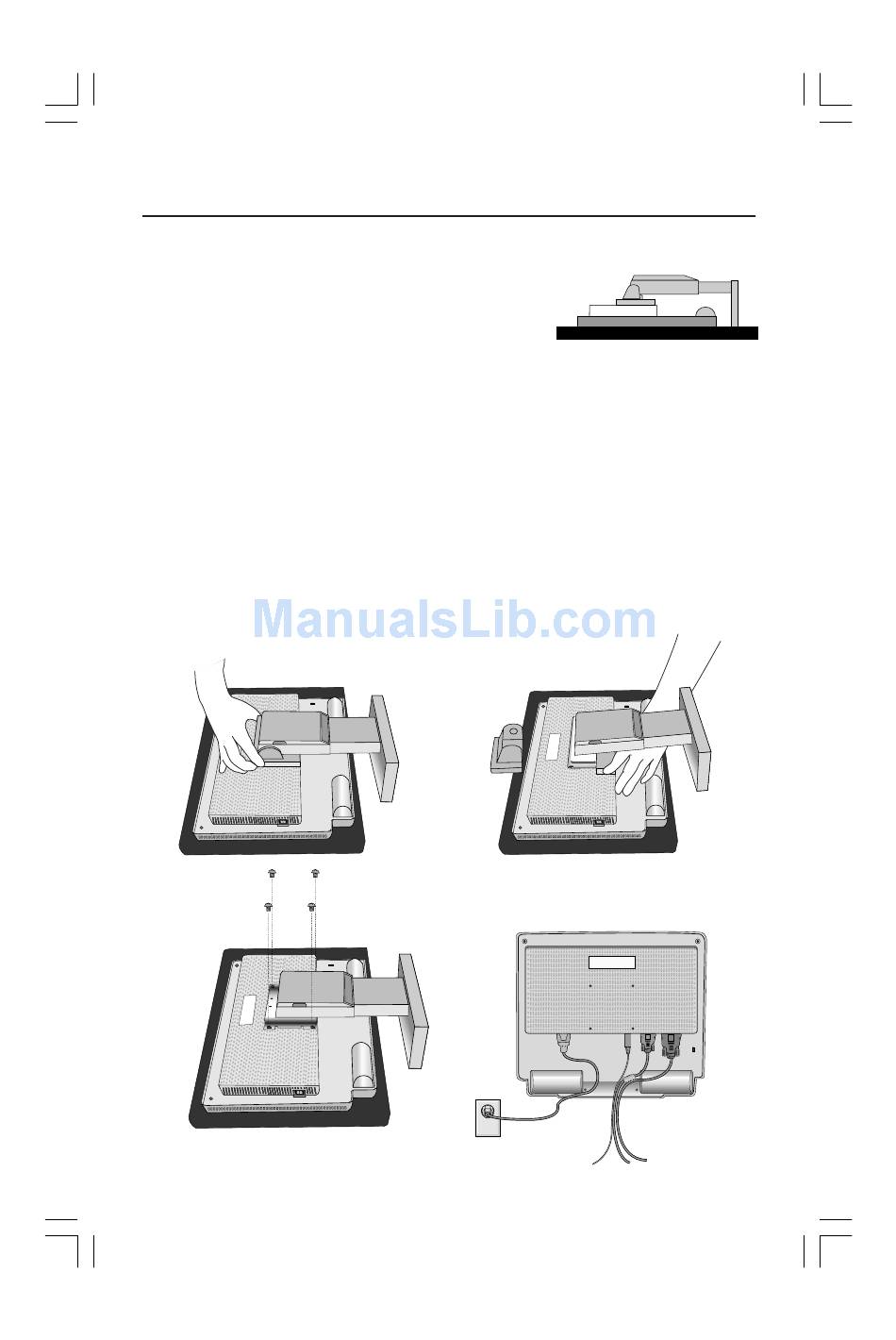

3. Place monitor face down on a non-abrasive surface (Figure S.1).
4. Remove the hinge cover (Figure R.1 and Figure R.2).
5. Remove the 4 screws connecting the monitor to the stand and lift off the
stand assembly (Figure R.3) the monitor is now ready for mounting in an
alternate manner.
6. Connect the AC cord, signal cable and audio cable to the back of the
monitor (Figure R.4).
7. Reverse this process to reattach stand.
Use only VESA-compatible alternative mounting method.
NOTE:
Handle with care when removing stand.
