Summary of Contents for SFS intec Cab-R 3D-001

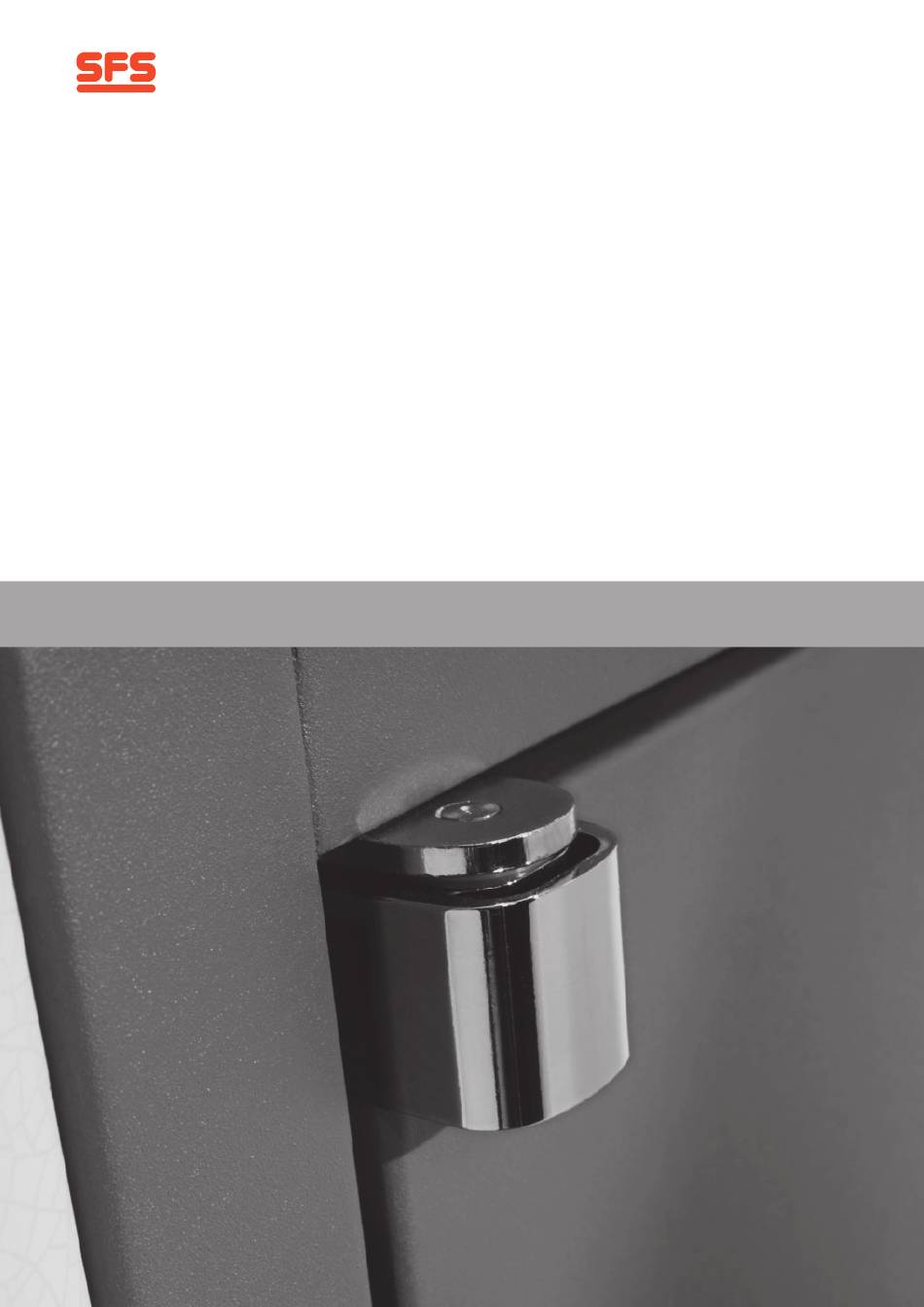

- Page 1 Istruzioni di montaggio e regolazione Cab-R 3D-001/002 Fitting and adjustment instructions Cab-R 3D-001/002 Montage- und Verstellanleitung Cab-R 3D-001/002...
- Page 2 Piano di fresatura anta e telaio per maschio incassato Piano di fresatura anta e posizionamento viti telaio per maschio non incassato Milling plan for sash and frame with flush-mounted male Milling plan for sash and screws positioning plan for external male Fräsanleitung Türe und Rahmen für eingefrästes Rahmenteil (not flush -mounted) Fräsanleitung Türe und Positionierung Rahmenschrauben für nicht...
- Page 3 Telaio senza fresatura - Frame without milling - Rahmen ohne Fräsung Il maschio inferiore deve sempre appoggiare sul pavimento. The lower male must be in contact with the floor. Das untere Rahmenteil muss sich immer am Boden abstützen. Posizionare il maschio inferiore facendo attenzione alle Position the lower male considering the dimensions shown Unteres Rahmenteil positionierung unter Berücksichtigung misure riportate nella tabella di posizionamento viti.
- Page 4 (Anpressdruck): Durch Drehen der Schraube “Z” mit Innensechskantschlüssel SW ∅ 4mm erzielt man eine Verstellung von ± 2mm SFS intec s.p.a. Tel. 0434 99 51 FasteningSystems Fax 0434 995201 Via Castelfranco Veneto, 71 it.pordenone@sfsintec.biz Turn ideas into reality IT-33170 Pordenone...
