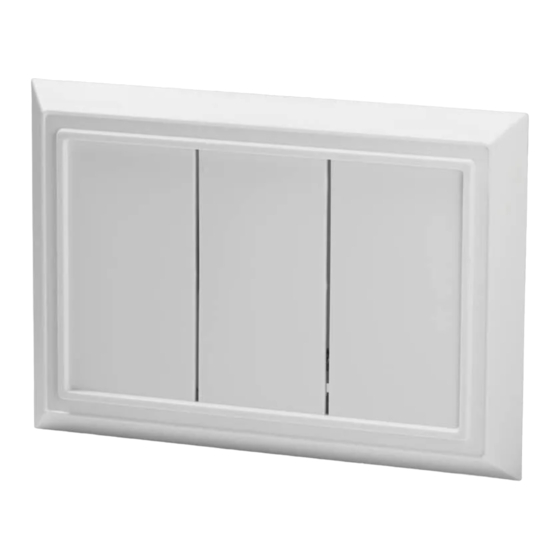

HOMEDEPOT 216590 Use And Care Manual

TOOLS REQUIRED
Phillips screwdriver Flat Head Screwdriver

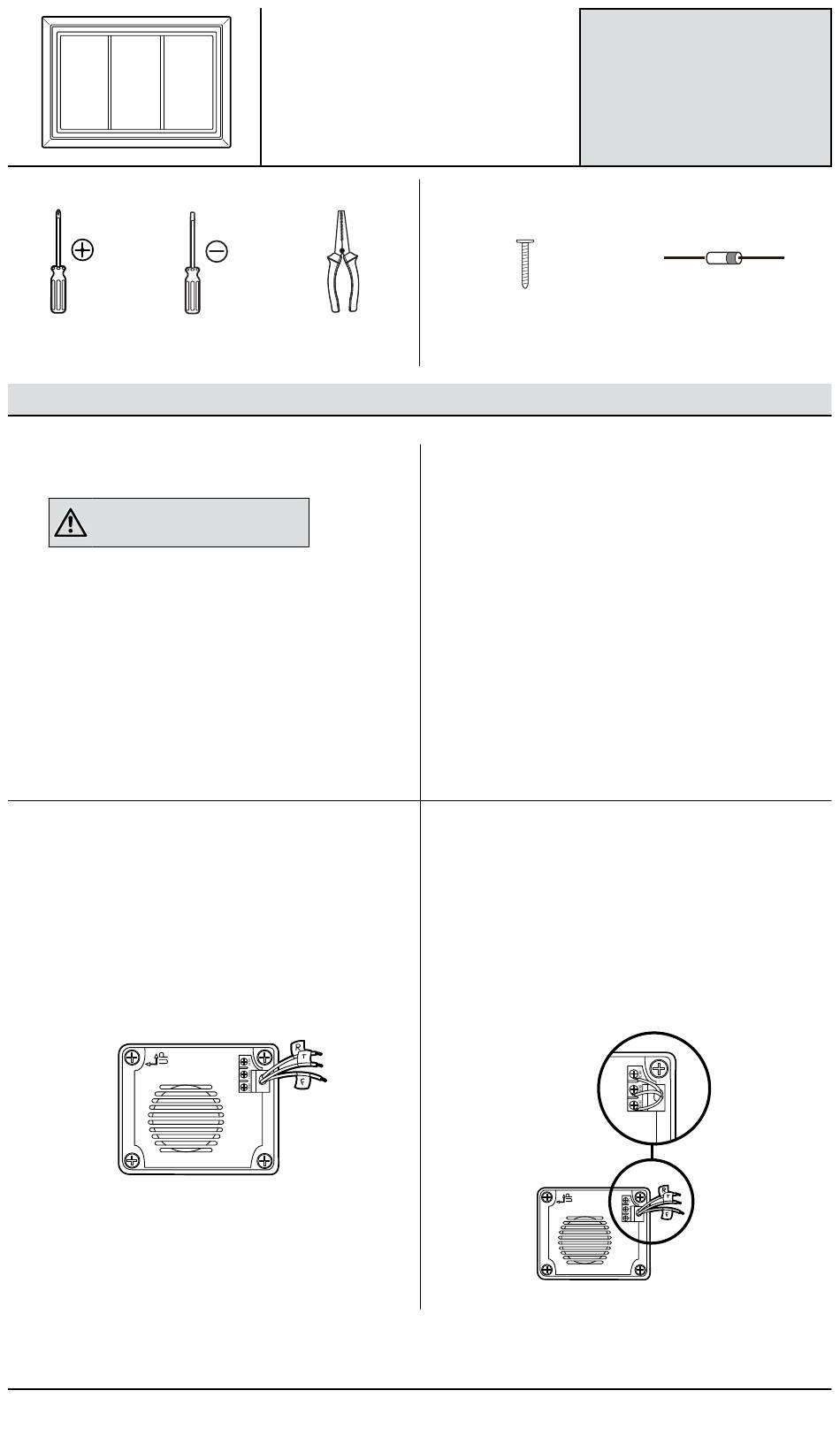

Installation
1
VERIFYING THE TRANSFORMER POWER RATING
WARNING: Always turn off the main
electric supply before beginning this
procedure.
□ Locate the transformer to determine the power rating.
□ Power must be supplied from a 16 Volt AC, 10 Watt
transformer.
3
MOUNTING THE NEW CHIME BASE
□ Remove the chime cover from the chime base.
□ Place the chime base in the desired location against the
wall, ensure it is level, and mark the screw hole mounting
locations.
□ Thread the labeled wires through the wire entrance hole in
the new chime base.
□ Drive the included screws through the screw holes on each
mark to mount the chime.
Wired Doorbell
#4x3/4
ITEM #1001 406 912
MODEL #216590
HARDWARE INCLUDED
#6x3/4
#4x1 White Zinc
Long Nose Pliers
(4) #6 x 1 in. Self-Tapping Screws
2
ScrewHardware.ai
□ Remove the chime cover from the existing chime base.
□ Using tape, label all wires before disconnecting them:
□ Disconnect the wires from the existing chime base and
4
216590Inst.ai
□ Connect the labeled wires to the screw terminals on the
□ To select a tune for a front door push button, flip the switch on
216590Inst.ai
Use and Care
#6x1 Self Tapping
REMOVING THE EXISTING CHIME
□ "F" – Front push button wire
□ "T" – Transformer wire
□ "R" – Rear push button wire
remove the base from the wall.
CONNECTING THE WIRES
chime base:
□ "F" to "FRONT screw terminal
□ "T" to "TRANS" screw terminal
□ "R" to "REAR" screw terminal
the base to the left position for 2-note tune or right position for
8-note tune. The back door push button tune will be 1-note.
Please contact 1-844-891-5662 for further assistance.
